Ce ISO Channel Steel C Z U Frame Purlin Roll Forming Machine
Cangzhou Nexus Machinery Co., Ltd.- Certification:CE, ISO9001
- Customized:Customized
Base Info
- Condition:New
- Control Type:Electric
- Automatic Grade:Automatic
- Product Name:C Z U Frame Purlin Machine
- Coil Material Thickness:1--3mm
- Processing Material:Galvanized Steel
- Roller Material:Cr12MOV
- Roller Station:12-18 Stations
- Driven:Chain Transmission
- Forming Speed:10-15m,Min
- Punching Type:Hydraulic Punching
- Cutting Type:Hydraulic Post-Cutting
- Operation Type:Touching Screen
- Transport Package:Plastic Film
- Specification:80-300
- Trademark:Nexus Machinery
- Origin:Cangzhou
- HS Code:8455221000
- Production Capacity:10
Description
o :
Decoiler System Main Parameter :
1
Loading capacity
1.5-3.0T
2
Uncoiling width
300-1000mm
3
Inner diameter
450-550mm
No :
Roll Forming System Main Parameter :
1
Length of the main part
about 3000*1000*400-8800*1500*1200
2
Weight of main part
3-8 tons
3
Voltage
380V/50HZ3Phase (as customer's request)
4
Roller fixer
guide column
5
Frame
steel plate welded/ Memorial arch frame type
6
Frame thickness
25mm
7
Drive mode
gear
8
Material of rollers
GCr15MoV
9
Material of shafts
45# steel with tempering
10
Diameter of shafts
φ40mm
11
Number of rollers
10-16 rollers
12
Main power
3-11kw
No :
Cutting System Main Parameter :
1
Material of blades
Gcr12MoV quenched
2
Power supply
hydraulic power
3
Frame
Pillar style with rack & pinion system
4
Stroke switch
non-contact photoelectric switch
5
Hydraulic motor Power
3-5kw
6
Hydraulic oil:
46#

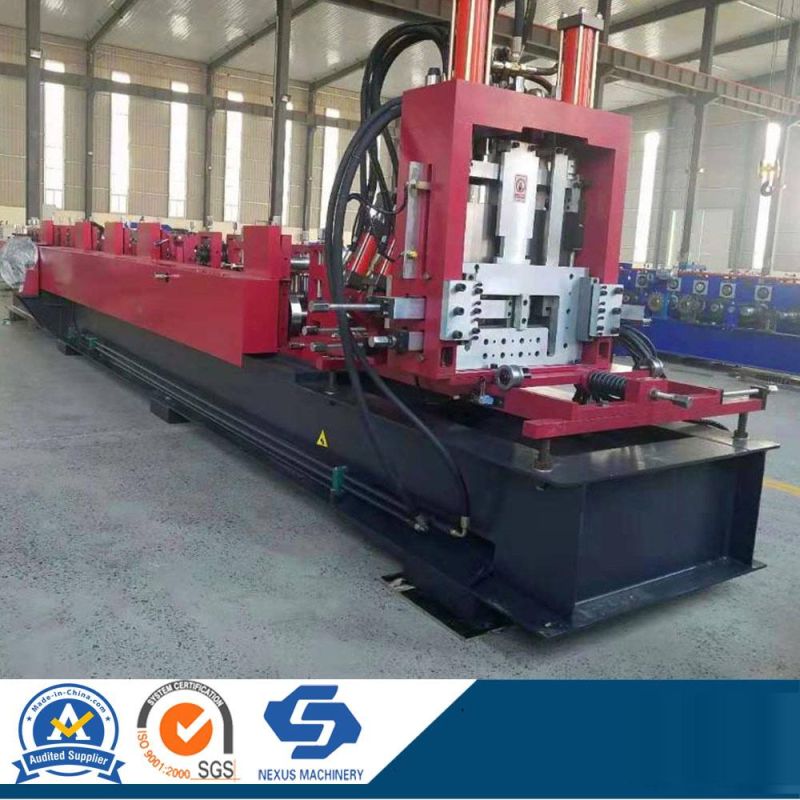

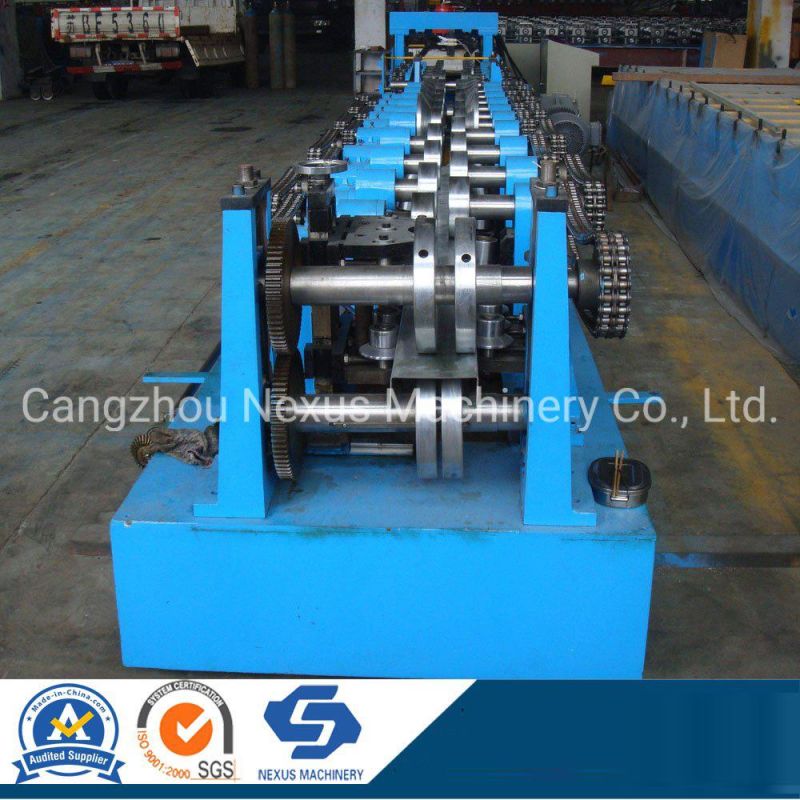

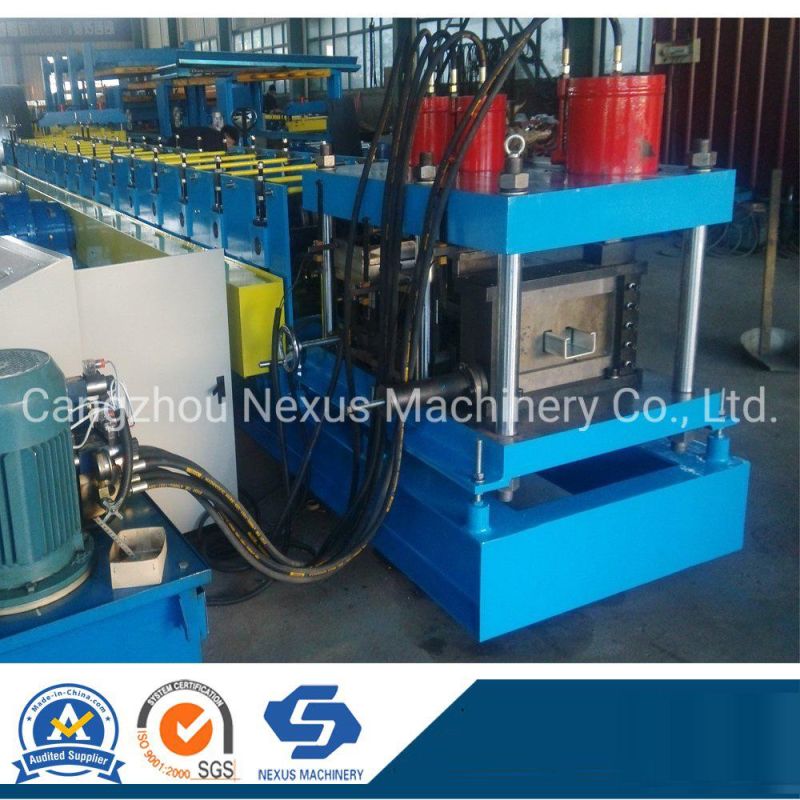

Photo for CE ISO Channel Steel C Z U Frame Purlin Roll Forming Machine
Exhibitions Photos:
ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.
Company Certificates:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
