• Model NO.：NX80-300
• Product Name：Light Gauge Steel Framing Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Diameter of Shaft：56mm
• Forming Speed：15-25m,Min
• Package：One Full Set of 20 Feet Container
• Transport Package：Control Box and Easy Damaged Parts: Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10 Sets,Month

No.

Item

Specification

1

Can Formed Material

PPGI,GI,AI

2

Equipment operation

Automatic

3

Voltage

380V 60Hz 3Phase or as your requirement

4

Thickness of sheet (mm)

0.6-0.8mm

5

Material width(mm)

As your requirement

6

Cover Width of the sheet after formed

as your drawing

7

The size of the roll forming machine

5000mmx1200mmx1400mm

8

Speed

12-15m/min

9

Diameter of shaft

40mm

10

Weight of the Machine

3000-3500KGS

11

Material of rollers

C45 steel quenched and chromed

12

Motor brand

Siemens or Guomao

13

PLC

Siemens or Delta or Mitsubushi

14

Total power (kw)

8kw

15

Power of hydraulic system

4kw

16

Power of main molding core

4kw

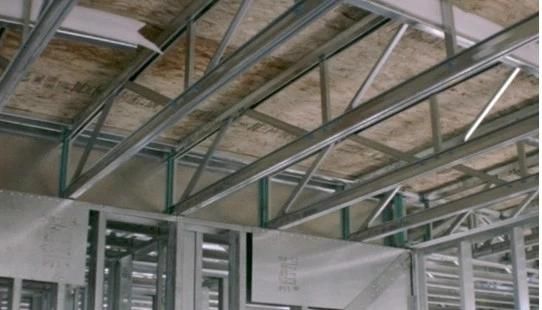

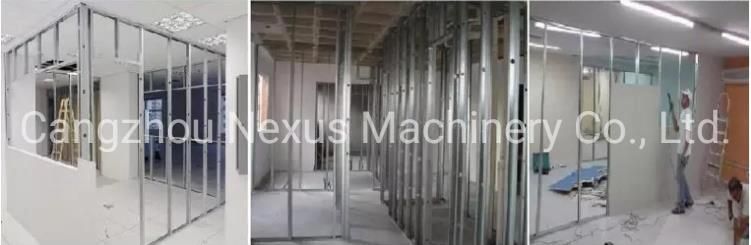

Photo for Metal Stud And Truss Profile Roll Forming Machine Light Gauge Steel Framing Machine:

ABOUT US:


More Products for Your Choose:


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
