• Model NO.：JKY60,60-40
• Tolerance：0.5mm
• Condition：New
• Brick Raw Material：Clay
• Capacity：19600-23000 Pieces Per Hour
• Vacuum Extruder：≤-0.092
• Weight：30t
• Transport Package：Seaworthy Standard Package
• Specification：ISO9001
• Trademark：Hengda
• Origin：Jiangsu Province, China
• HS Code：84748090
• Production Capacity：300set,year

Basic Info.

Model NO. JKY60/60-40 Tolerance 0.5mm Condition New Brick Raw Material Clay Capacity 19600-23000 Pieces Per Hour Vacuum Extruder ≤-0.092 Weight 30t Transport Package Seaworthy Standard Package Specification ISO9001 Trademark Hengda Origin Jiangsu Province, China HS Code 84748090 Production Capacity 300set/year

Product Description

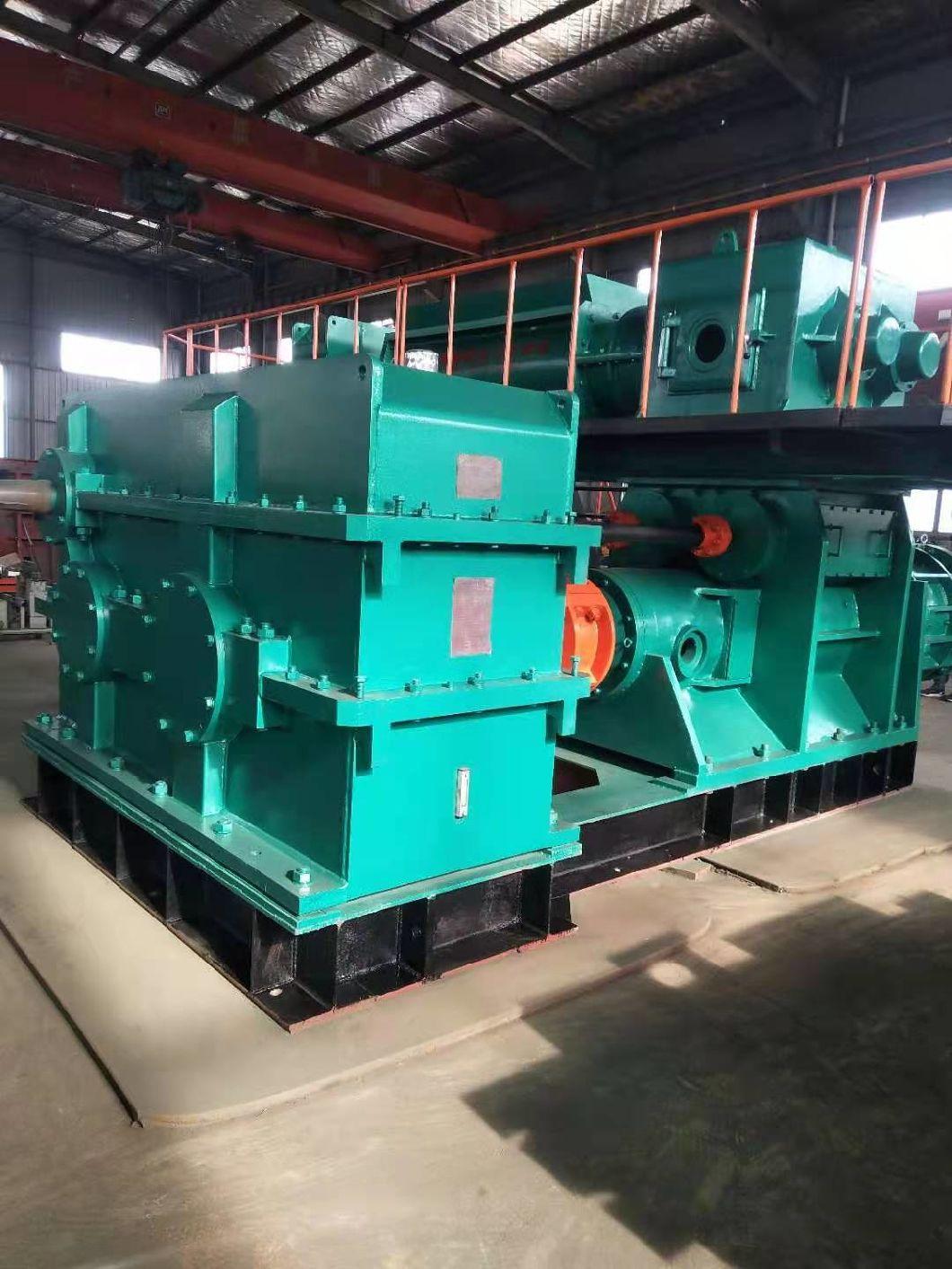

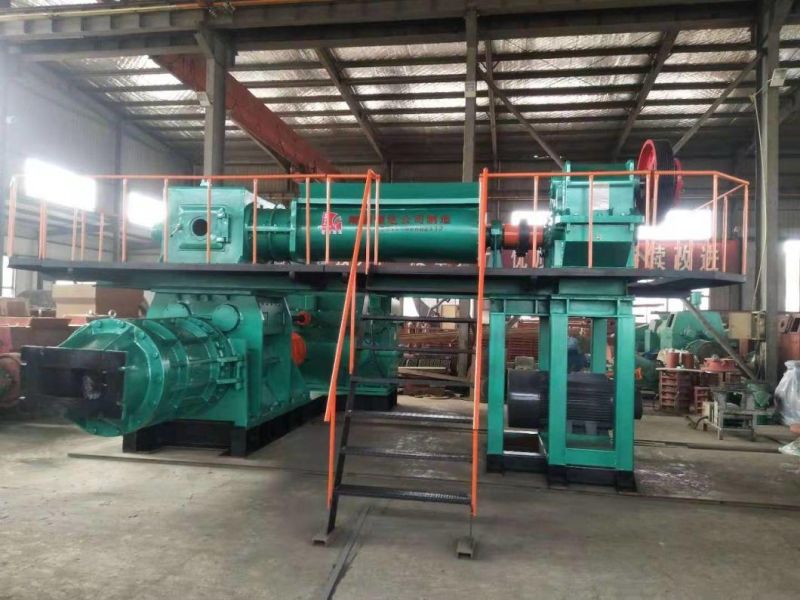

Automatic red fired clay brick machine Nepal price
Fully Automatic Clay Brick Making Machine in hot sale

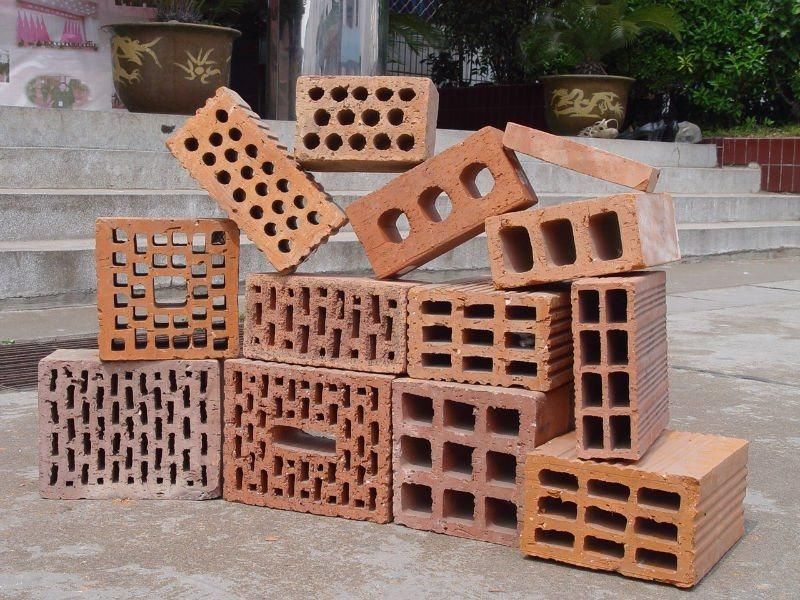

Fully automatic clay brick making machine is suitable for use to produce all kinds of hollow or solid bricks & blocks, all kinds of clay, shale, coal slack, fly ash etc, many types of machine can be choosed depend on the raw material.
Wear resistant metal spraying technology was applied to the screw, pug mill, axis of screw and the body of extruder are treat with seasoning, conditioning, quenching treatment.

The harden surface gear was adopted in reducer, clutch are a component with own patent, all the treatments make the machine life-saving
Meanwhile the reasonable design, compact structure reduce the energy consumption, without any shaking during working, even the extruder can working normal without holding down bolt.



Characteristics
1. High quality, orginal price,
2. Energy saving, produce hollow or solid bricks

Techinical Specification


Item Unit of measurement JKY60/60-40 Double Stage Vacuum Extruder Machine Production capacity standard brick(240*115*53mm)/hour 19600-23000 Reamer diameter mm 600/600 Maximum extrusion pressure Mpa 4.0 Vacuum degree Mpa ≤-0.092 Power kW 220+90 Overall size mm 5500*5000*3000 Weight T 30
