• Power Supply：380V,50Hz
• Air Pressure：0.5~0.8MPa
• Cutting Motor Power：2*1.5kw 1*0.55kw
• Motor Rotary Speed：2800r,Min
• Air Consumption：60L,Min
• Blade Specification：450*30*4.4 Z=120
• Cutting Length：400-3700mm
• Cutting Width：Max 120mm
• Cutting Height：Max 200mm
• Cutting Angle：45,90,135 Degree
• Overall Dimension：4500*1170*1400mm
• Weight：About 1500kg
• Function：Aluminum Window Making Machine
• Service：One Year Warranty
• Transport Package：Wooden Box Package
• Specification：aluminum,pvc double head cutting saw
• Trademark：TRUEPRO
• Origin：China
• HS Code：8465990000
• Production Capacity：500sets,Year

Model CLJZ2-450*3700Input Power2*1.5kw    1*0.55KwMotor rotary speed2800r/minAir Pressure 0.5~0.8MpaPower supply 380V 50HzBlade specification∅450*∅30*4.4 Z=120Curring lengthMax3700mm Min400mm  / Max3700mm  Min580mmCutting widthMax 120mmCutting heightMax 120mmCutting angle45º  90º  135ºOverall dimension4500*1170*1400mmWeight1500kg




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

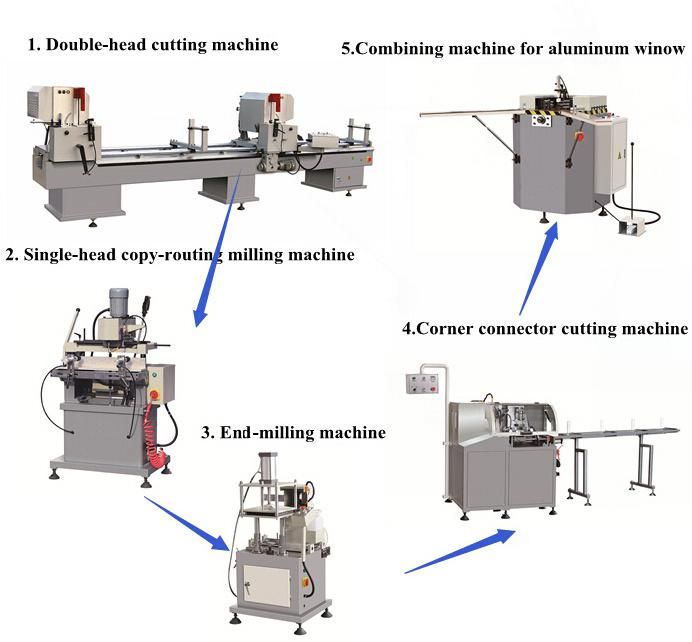

4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
