• Condition：New
• Customized：Customized
• Automatic Grade：Automatic
• Structure：Horizontal
• Transmission Method：Electric
• Model No.：Jps-320c-Tr
• Slitting Speed：120m,Min
• Max Paper Width：320mm
• Max Unwind Diameter：500mm
• Max Rewind Diameter：480mm
• Dimension：1.7X 0.9X1.4m (Lxwxh)
• Machine Weight：About 700kg
• Optional Function：Rotary Die Cutting
• Guarrantee：1 Year
• Patent No.：Jps3427891K
• Transport Package：Export Wooden Case
• Specification：CE
• Trademark：JPS
• Origin：China
• HS Code：844314000
• Production Capacity：100 Sets , Month

Basic Info.

Condition New Customized Customized Automatic Grade Automatic Structure Horizontal Transmission Method Electric Model No. Jps-320c-Tr Slitting Speed 120m/Min Max Paper Width 320mm Max Unwind Diameter 500mm Max Rewind Diameter 480mm Dimension 1.7X 0.9X1.4m (Lxwxh) Machine Weight About 700kg Optional Function Rotary Die Cutting Guarrantee 1 Year Patent No. Jps3427891K Transport Package Export Wooden Case Specification CE Trademark JPS Origin China HS Code 844314000 Production Capacity 100 Sets / Month

Product Description

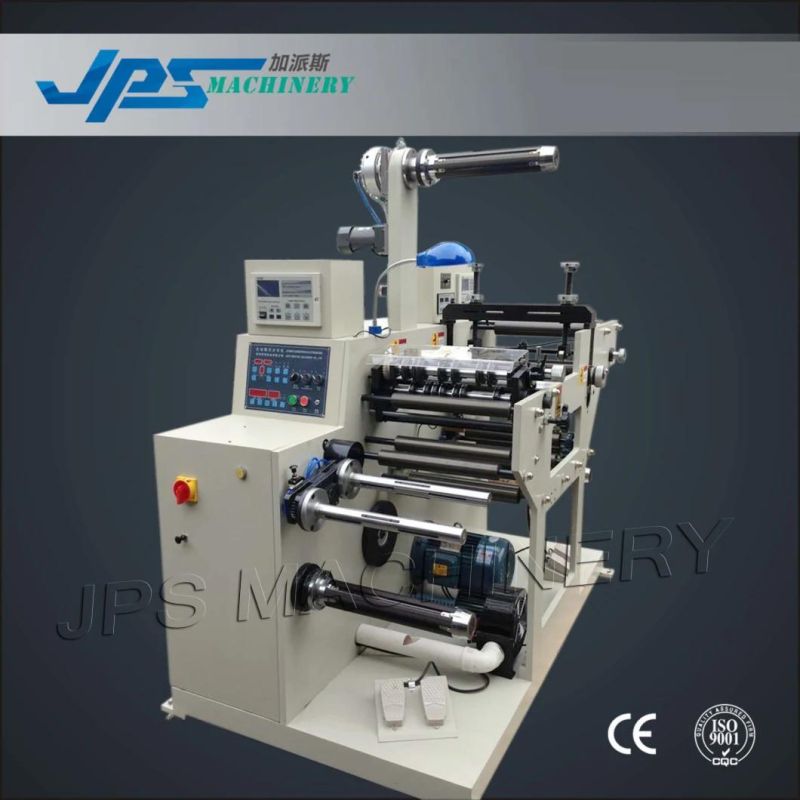

JPS-320C-TR Rotary die cutting & slitting machine with turret rewinder

JPS-320C-TR slitting machine is with a rotary die cutting station




Technical Parameters:

Model	JPS-320C-TR
Slitting speed	120m/min
Die cutting speed	160m/min
Die cutting length	240-476mm
Max paper width	320mm
Max Unwind diameter	500mm
Max rewind diameter	480mm
Dimension	1.7x 0.9x1.4m (LxWxH)
Machine weight	About 700kg

Feature:

1.This product is suitable for blank lable die cutting and slitting .
2.Die cutting , slitting , rewinding can be in one process.
3.It have automatic tension controller system for unwinding and rewinding,
4.Automatic inflating air for air shafts, Optional Start and stop by foot.
5.This machine has automatic meter count, number count, length preset, automatic-stop when up to length preset functions.
6.The unwinding is controlled by the two photoelectric eyes.
7.The whole machine structure is compact, fast and with high efficiency.
8.Operation is easy and steadily

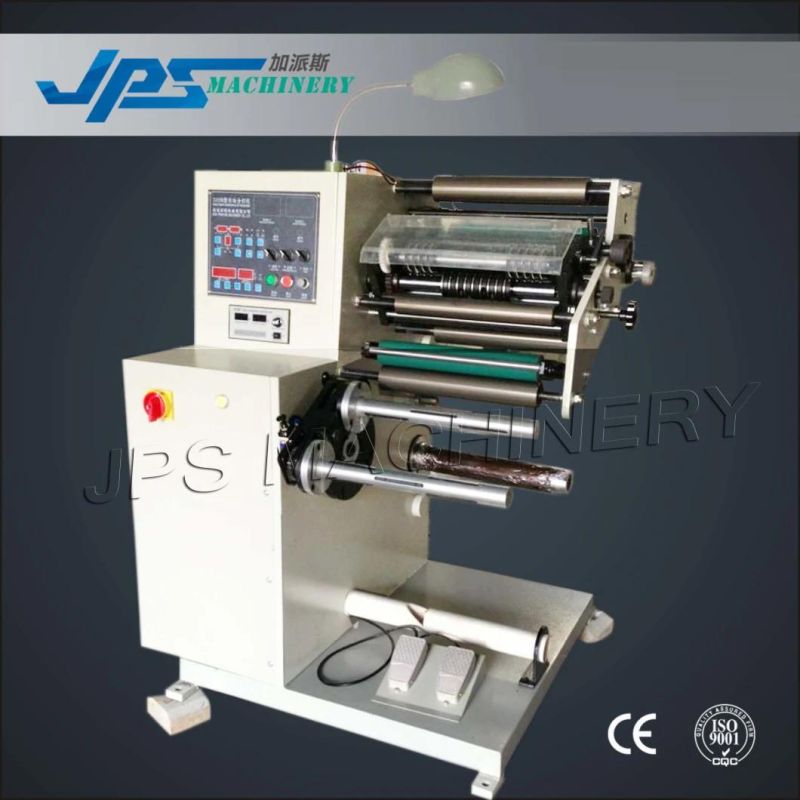

JPS-320FQ-TR  Slitting machine with turret rewinder

JPS-320C-TR slitting machine is without a rotary die cutting station




Technical Parameters:

Model	JPS-320FQ-TR
Slitting speed	120m/min
Max paper width	320mm
Max Unwind diameter	500mm
Max rewind diameter	220mm
Dimension	0.9x 0.9x1.15m (LxWxH)
Machine weight	About 400kg

Feature:

1.This slitter is the corollary equipment of automatic die cutting machine,
2.It is suitable for slitting narrow paper web.
3.It has automatic meter count and number count, quantity and length preset and decelerate till stopping functions.
4.Auto Magnetic powder control for unwinding and rewinding , and photoelectric eyes rectification for unwinding,
5.Synchronous belt to conveyor in internal structure
6.The Distinctive machine design will improve working efficiency and reduce operation labor intensity
7.It is the optimal choice for narrow material slitting.
8.The whole machine structure is compact, fast and with high efficiency.
9. Operation is easy and steadily

Printing samples:

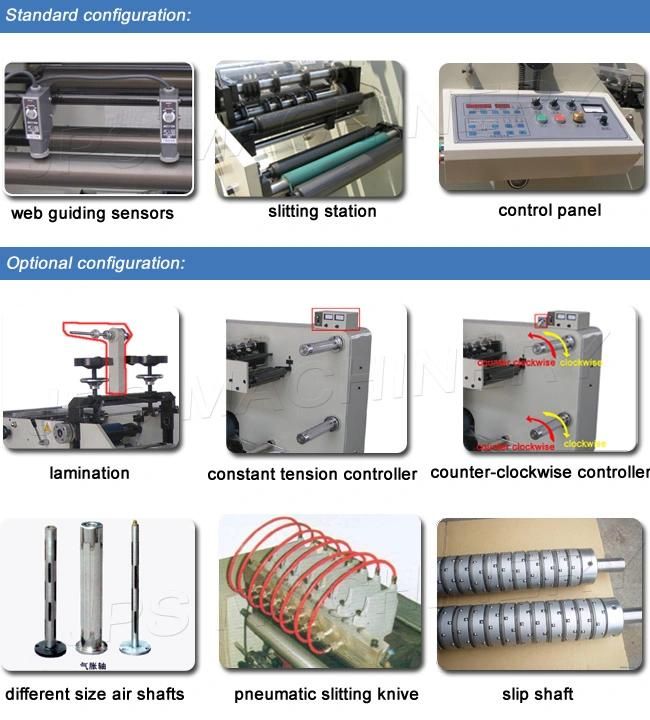

JPS-320FQ-TR  Slitting machine with turret rewinder Machine ( Machine Configuration ):






JPS-320FQ-TR  Slitting machine with turret rewinder Machine ( Factory Show ) :

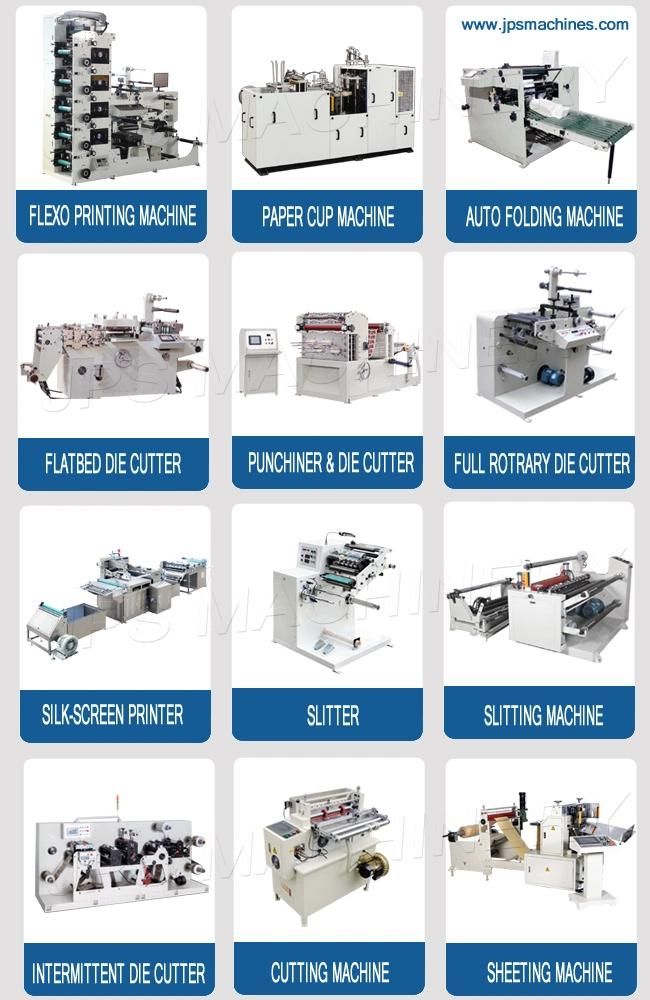

JPS-320FQ-TR  Slitting machine with turret rewinder Machine ( Our Main Product List ):
