• Model NO.：CLZZ6A-13
• Input Power：6*0.75kw
• Air Pressure：0.5-0.8MPa
• Max. Distance for Two Hole：5000mm
• Min. Distance for Two Hole：300mm
• Power Unit Quantity：6
• Worktable Size：300*300mm
• Machine Dimension：5500*1100*1800mm
• Max. Processing Size：250*250mm
• Transport Package：Wooden
• Specification：CLZZ6A-13
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLZZ6A-13 Input Power 6*0.75kw Air Pressure 0.5-0.8MPa Max. Distance for Two Hole 5000mm Min. Distance for Two Hole 300mm Power Unit Quantity 6 Worktable Size 300*300mm Machine Dimension 5500*1100*1800mm Max. Processing Size 250*250mm Transport Package Wooden Specification CLZZ6A-13 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

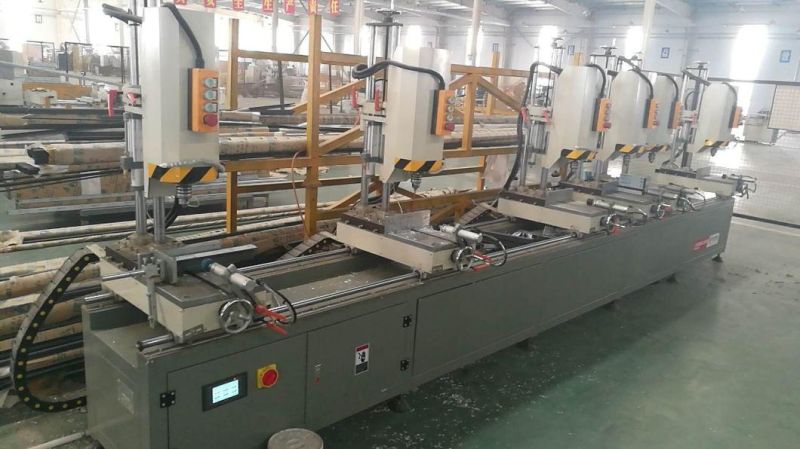

Aluminium window door production equipment multi head drilling machine
Machine feature:
1. Used for drilling holes on aluminum profiles and curtain wall profiles.Apply to volume- produce.
2. The processing Max. profile section size is 250*250mm, and the max. processing length is 5000mm.
3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
4. Feeding system adopts hydraulic-damping cylinder, which ensures a smooth feeding.
5. Imported Schneider PLC control system with steady capability.
Parameter:

Model	CLZZ6A-13
Power supply	380V 50Hz
Input power	6*0.75kw
Air pressure	0.5~0.8Mpa
Power unit quality	6
Max drilling hole diameter	13mm
Max distance between two drilling holes	5000mm
Min distance between two drilling holes	300mm
Max section size	250*250mm
Drilling head feeding travel	125mm
Worktable size	300*300mm
Overall dimension	5500*1100*1800mm

Machine details:






Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw

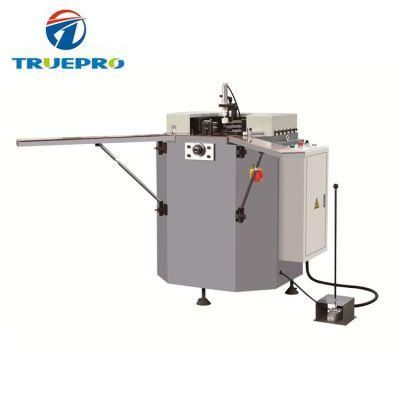

5).Single head Corner combining machine
