• Model NO.：CLMX-1600
• Input Power：2.2kw
• Air Pressure：0.5-0.8MPa
• Cutting Width：4000mm
• Cutting Height：1600mm
• Milling Cutter Size：Dia. 250mm
• Blower Power：1.5kw
• Machine Dimension：5000*2120*2300mm
• Weight：800kg
• Transport Package：Wooden
• Specification：CLMX-1600
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLMX-1600 Input Power 2.2kw Air Pressure 0.5-0.8MPa Cutting Width 4000mm Cutting Height 1600mm Milling Cutter Size Dia. 250mm Blower Power 1.5kw Machine Dimension 5000*2120*2300mm Weight 800kg Transport Package Wooden Specification CLMX-1600 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

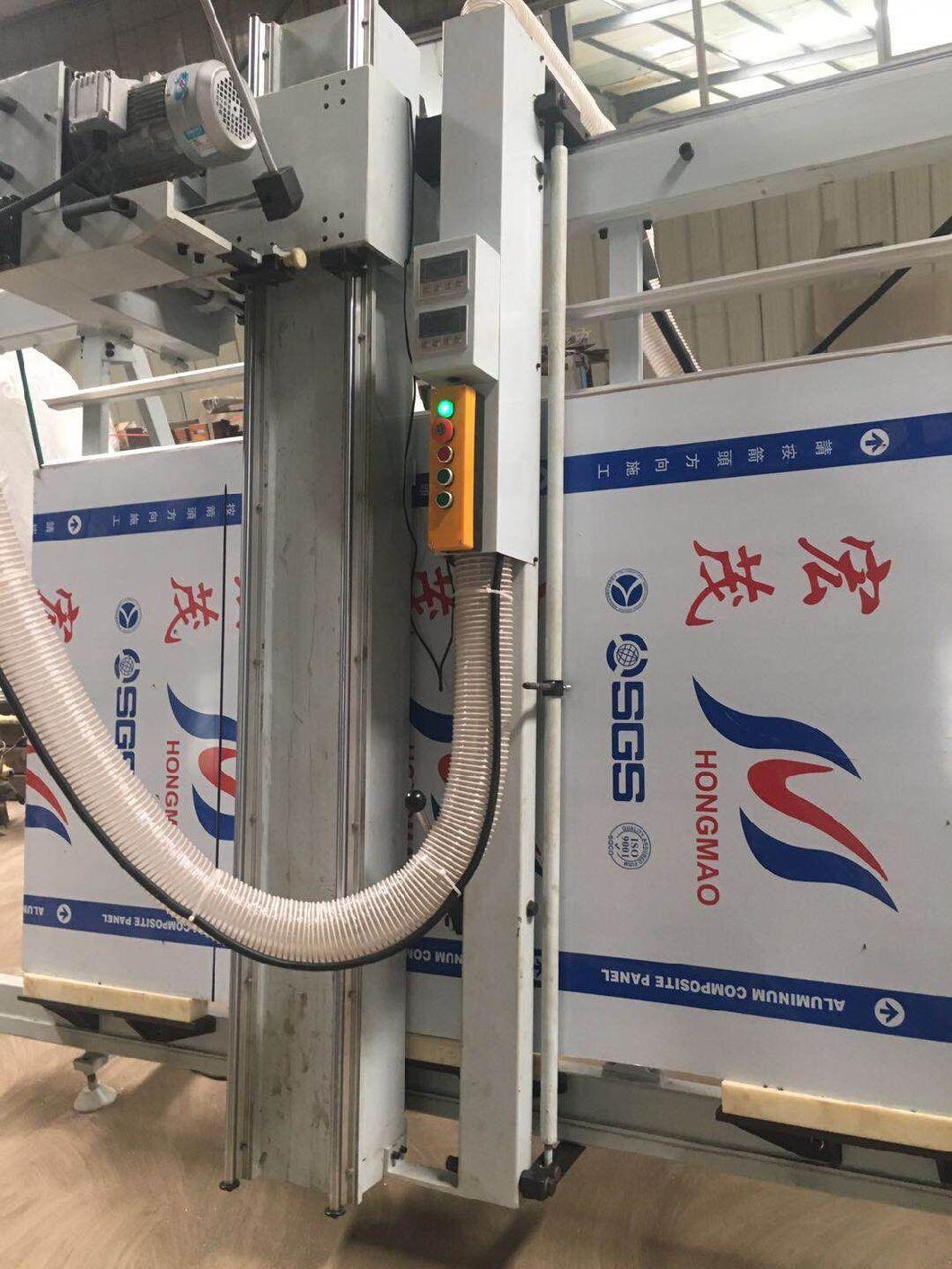

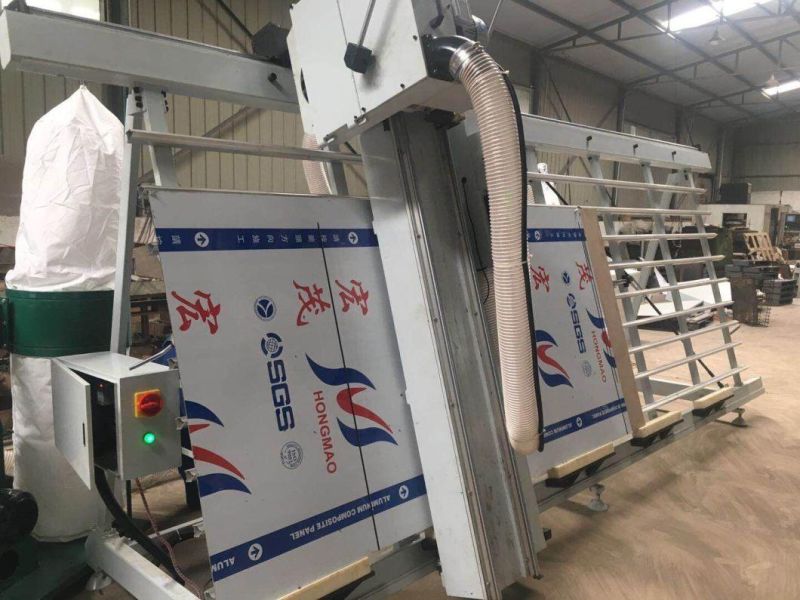

        Aluminum curtain wall making vertical panel saw machine

Machine feature:
Milling cutters can work in horizontal and vertical way.
The interval subsection orientation device and the lock device are set in the lengthways frame.
The multi-points orientation device and the lock device are set in the lengthways frame.
Used for milling processing of the profile bending parts of aluminum curtain wall.
Processing range(L×W):4000×1600mm.
The slot depth can be adjusted for the special designed cutters.
Parameter:

Model	CLMX-1600
Power Supply	380V/50HZ
Input Power	3.7KW
Motor rotary speed	2800r/min
Cutting width	max4000mm
Cutting height	max 1600mm
Milling cutter size	φ250mm
Overall Dimension	5000*2120*2300mm
Weight	800Kg

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
