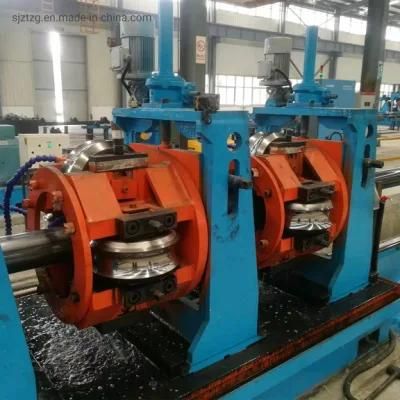

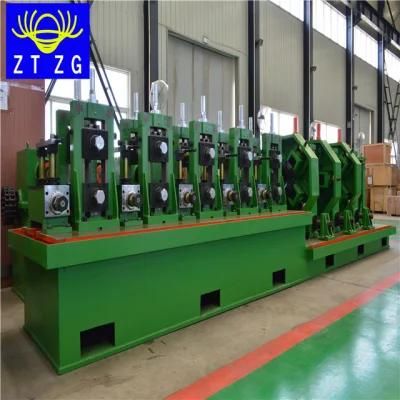

ISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/Min

Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd.
  • After-sales Service：on-Site and Online
  • Warranty：1year
  • Pipe Material：Carbon Steel
  • Condition：New
  • Customized：Customized
  • Theory：Cold Roll Forming

Base Info

  • Application：Industry
  • Type：Pipe Mill
  • Voltage：220,380,415,420,440V
  • Raw Material：Carbon Steel,Galvanized Steel,Stainless Steel
  • Pipe Diameter：42-89mm
  • Color：Grey or as Your Require
  • Thickness：1.2-4.0mm
  • Transport Package：Container
  • Specification：Change with product customization
  • Trademark：ZTZG
  • Origin：China
  • HS Code：84551020
  • Production Capacity：200set,Year

Description

Product&yieldRound Pipe140mm-325mm Thickness:4.0mm-12.7mm Length6m-12m Length Tolerance: ±3mm Production Speed20-60 m/min Production capacity55,000ton/yearConsumptionMill installed capacity430 kw Line Area130m(length) ×11m (width) worker8-10 workersRaw MaterialCarbon Steel coilL245,L360,A53,J55,N80 ,X42,X46,X52,X56,X60,X65,X70 Width440mm-1025mm Thickness: 4.0mm-12.7mm Coil ID610-700mm Coil ODMax 2000mm Coil Weight15.0t



Model List



Model

Round pipe

mm

Thickness

mm

Working spead

m/min

ERW140Ф60-Ф1402.0-5.060ERW165Ф76-Ф1652.0-6.050ERW219Ф89-Ф2192.0-8.050ERW273Ф114-Ф2733.0-10.045ERW325Ф140-Ф3254.0-12.740ERW377Ф165-Ф3774.0-14.035ERW406Ф219-Ф4066.0-16.030ERW508Ф273-Ф5086.0-18.025ERW660Ф325-Ф6606.0-20.020ERW720Ф355-Ф7206.0-22.020



Note: We can design and manufacture pipe making machine according to customers' requirements.


ISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinISO9001 ERW325 High Frequency Tube Milling Machine 20-60m/MinQ:Are you manufacturer?

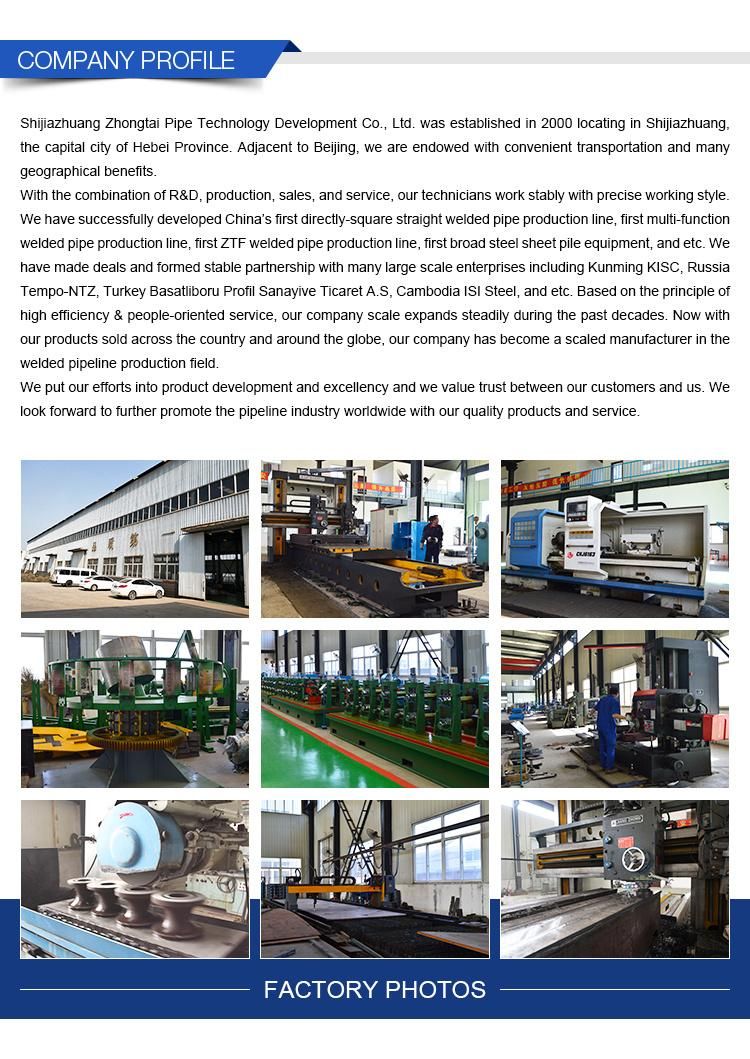

A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
