• Model NO.：QT8-15
• Cycle Time：13-15s
• Pallet Size：960X850mm
• Host Machine Power：46.1kw
• Rated Pressure：16MPa
• Vibration Firm：Platform Vibration
• Overall Dimension：5800X1960X3100mm
• Factory Area：1500m2
• Transport Package：Standred Export Packing
• Specification：5800x1960x3100mm
• Trademark：HF
• Origin：China
• HS Code：8474802000
• Production Capacity：50 Set Per Month

Cement Production line Equipment QT8-15 Full Automatic Concrete Road Paving Brick Block Making Machine

1. Particular storage and description material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.

2. Adopting synchronization vibration insures the products making average. The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.

The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis

3. PLC intelligent control: Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple training to the operator.

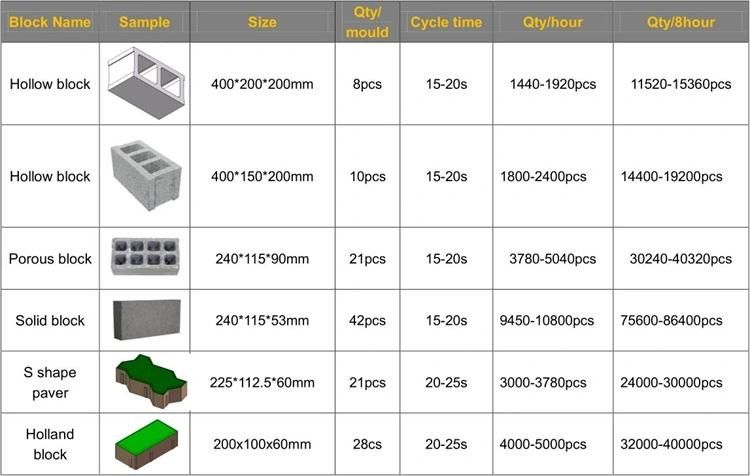

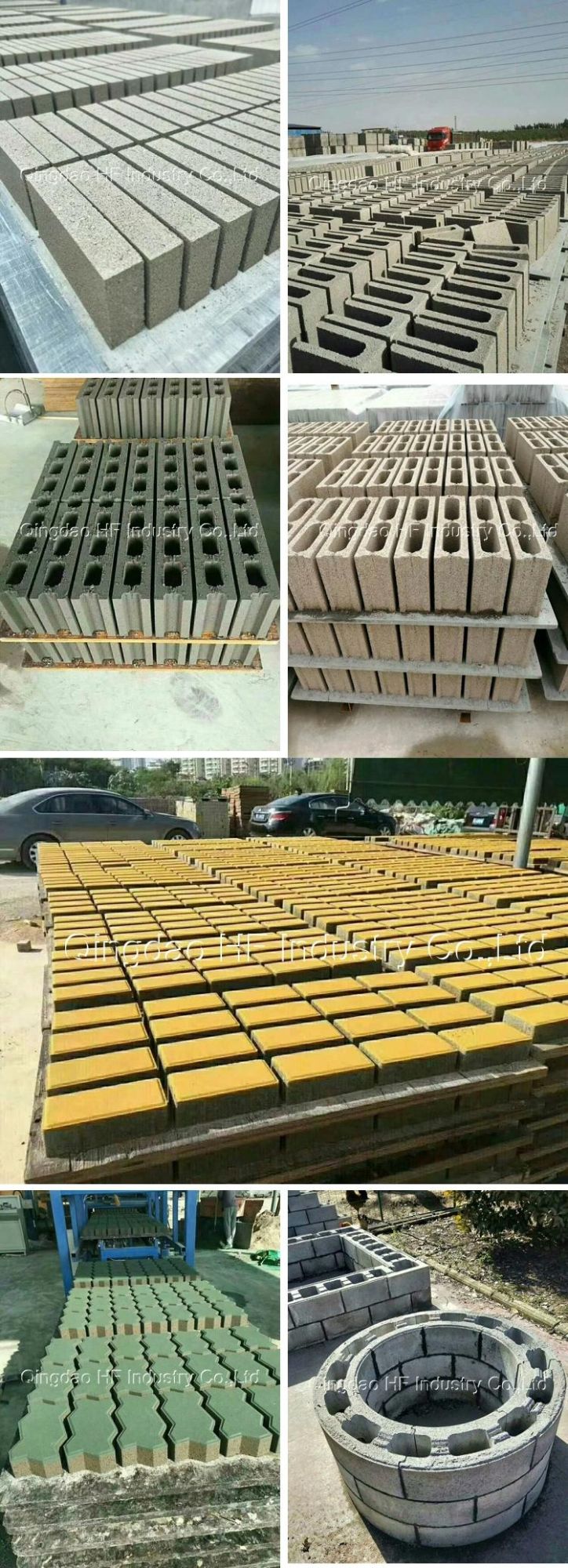

4. It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.

Technical ParameterModelQT8-15Host Machine Size5800x1960x3100mmPallet Size960x850mmVibration formPlatform vibrationVibration frequency3000-5200r/minMolding Time13-15sHost machine power50.6KwProductivity
