Building Material Making Machinery

Three Head UPVC PVC Window and Door Water Slot Router Drilling and Milling Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:not CNC
  • Voltage:380V
  • Model:Scxa-60

Base Info

  • Model NO.:SCXA-60
  • Input Voltage:220V 50Hz
  • Input Power:1.2 Kw
  • Air Pressure:0.5~0.8MPa
  • Air Consumption:30L,Min
  • Spindle Speed:2800r,Min
  • Max. Milling Length:100mm
  • Max. Milling Depth:30mm
  • Diameter of Milling Cutter:4mm & 5mm
  • Overall Dimension:1200*1200*1800mm
  • Transport Package:Plastic Film or Depends on Customers
  • Specification:1200*1200*1800mm
  • Trademark:Yuefeng
  • Origin:Jinan Shandong, China
  • HS Code:8477800000
  • Production Capacity:30 Sets,Month

Description

Basic Info.

Model NO. SCXA-60 Input Voltage 220V 50Hz Input Power 1.2 Kw Air Pressure 0.5~0.8MPa Air Consumption 30L/Min Spindle Speed 2800r/Min Max. Milling Length 100mm Max. Milling Depth 30mm Diameter of Milling Cutter 4mm & 5mm Overall Dimension 1200*1200*1800mm Transport Package Plastic Film or Depends on Customers Specification 1200*1200*1800mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

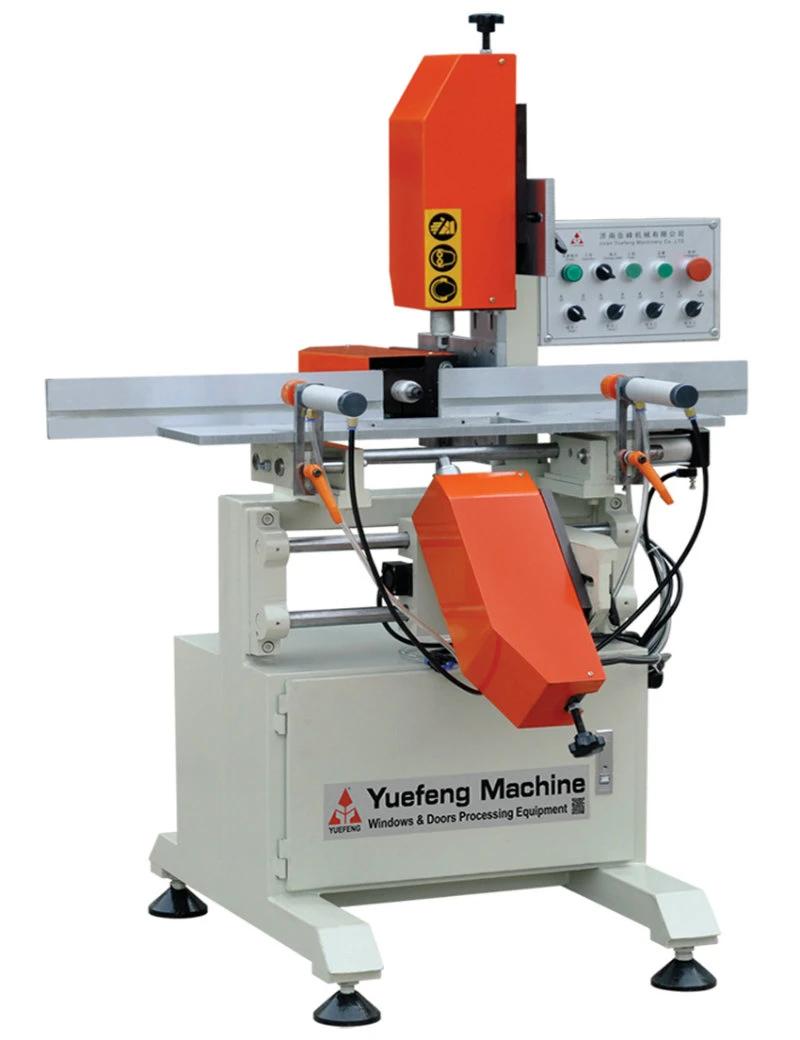

SCXA-60  Water Slot RouterThree Head UPVC PVC Window and Door Water Slot Router Drilling and Milling Machine
>Milling all kinds of water slots and air pressure balance groove.

>Full design with high rigidity, processing beautiful water slot, high appearance quality.

> Automatic cutter changer, one time clamp to finish water slots processing.

> Special feeding system results no maintenance and high milling quality.

>Easily adjustment for the cutter location to meet different kinds of profiles.

> Adopt linear bearing motion to ensure the processing precision.


>This three-axis water slot router can achieve the function of four-axis water slot router.

Technical Parameter:
Model SCXA-60
Input voltage  220V 50Hz
Input power1.2 kw
Air pressure 0.5~0.8MPa
Air consumption30L/min
Motor rotating speed28000r/min
Max. milling length100mm
Max. milling depth30mm
Diameter of milling cutterφ4mmφ5mm
Overall dimension 1200×1200×1800mm

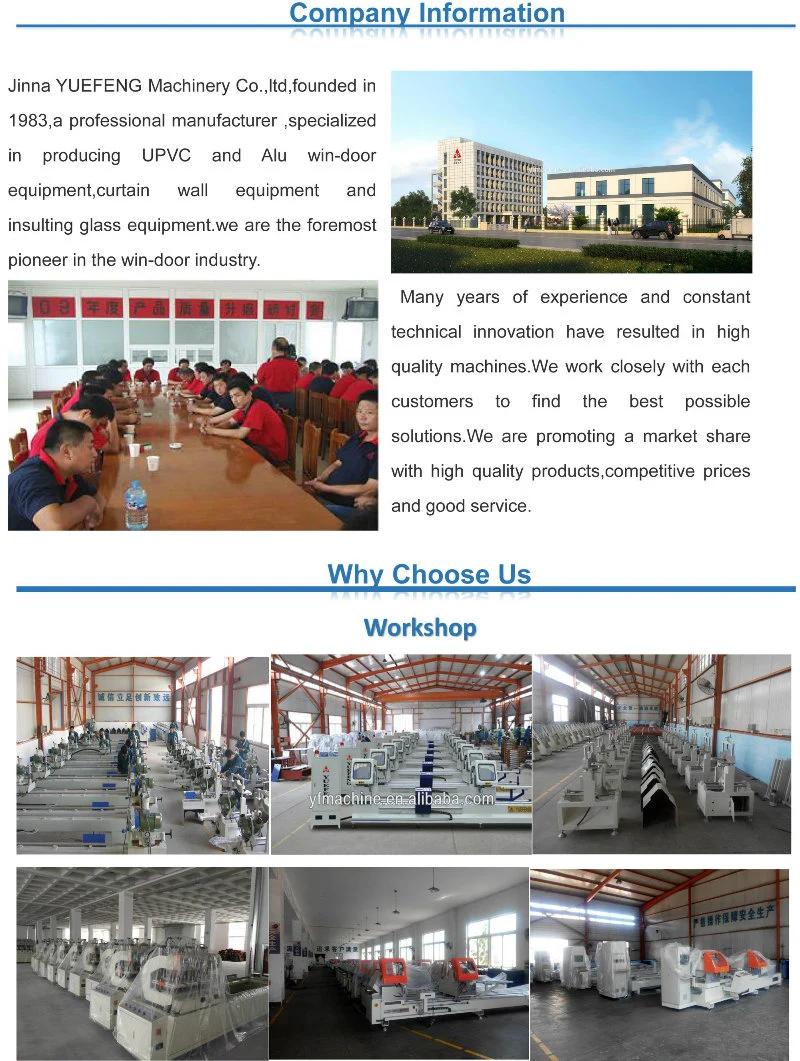

Why Choose Us
Three Head UPVC PVC Window and Door Water Slot Router Drilling and Milling Machine

Our Advantage
Three Head UPVC PVC Window and Door Water Slot Router Drilling and Milling Machine
Package
Three Head UPVC PVC Window and Door Water Slot Router Drilling and Milling Machine
FAQ


1.Are your company a trading one or a factory?
Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.


2.After an order is placed, when to deliver?
 Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
 Please be aware that our production lead times depend on specific items and item quantities.


3.What about the warranty with after - sales services?
 12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.


4.What about the services and product' quality?
 Each machine must be carried out 100% quality examination and test before shipment.
 And all machines meet ISO and CE certification.


5. We don't know the machine operation, what should we do?
 We can send engineer to your place, or we provide video training to show you how to install & operate, let  engineer help you online.

Certifications
Three Head UPVC PVC Window and Door Water Slot Router Drilling and Milling Machine
