• Model NO.：LJD-550
• Input Voltage：380V 50Hz
• Input Power：4.0kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：100L,Min
• Spindle Speed：3200r,Min
• Cutting Length：100~3500mm
• Cutting Width：<350mm
• Cutting Height：<175mm
• Cutting Angle：+22.5 Deg;~-22.5 Deg;
• Transport Package：Plastic Film or Depends on Customers
• Specification：1100*1500*1800mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. LJD-550 Input Voltage 380V 50Hz Input Power 4.0kw Air Pressure 0.5~0.8MPa Air Consumption 100L/Min Spindle Speed 3200r/Min Cutting Length 100~3500mm Cutting Width <350mm Cutting Height <175mm Cutting Angle +22.5 Deg;~-22.5 Deg; Transport Package Plastic Film or Depends on Customers Specification 1100*1500*1800mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

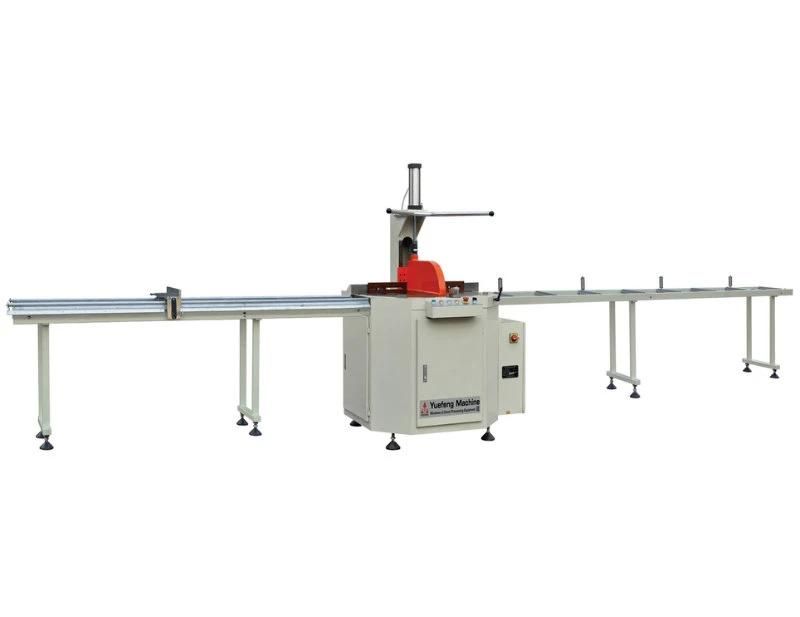

LJD-550  Arbitrary Angle Single Mitre SawProduct Description

> This machine is mainly used for cutting aluminum profiles between 22.5°~90°~-22.5°. It can work on industrial aluminum alloy profiles, curtain wall profiles and aluminum window profiles.

> Uniform speed feeding and smooth motion due to air-draulic damping cylinder.

> Saw blade feeding system adopts imported linear guide kinematic pair, results high accuracy.

> Intergrated design for clamping and protecting guards results convenience and safety.

Technical Parameter:


Model	LJD-550
Input voltage	380V 50Hz
Input power	4.0Kw
Air pressure	0.5~0.8MPa
Air consumption	100L/min
Spindle speed	3200r/min
Cutting length	100~3500mm
Cutting width	≤350mm
Cutting height	≤175mm
Cutting angle	+22.5°~-22.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ550×4.4×φ30×Z120
Overall dimension	1100×1500×1800mm
