• Model NO.：LJZG-550
• Input Voltage：380V 50Hz
• Input Power：3.0kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：110L,Min
• Spindle Speed：3200r,Min
• Cutting Length：100~3500mm
• Cutting Width：<400mm
• Cutting Height：<170mm
• Cutting Angle：90 Deg
• Transport Package：Plastic Film or Depends on Customers
• Specification：2000*1200*1600mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. LJZG-550 Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.5~0.8MPa Air Consumption 110L/Min Spindle Speed 3200r/Min Cutting Length 100~3500mm Cutting Width <400mm Cutting Height <170mm Cutting Angle 90 Deg Transport Package Plastic Film or Depends on Customers Specification 2000*1200*1600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

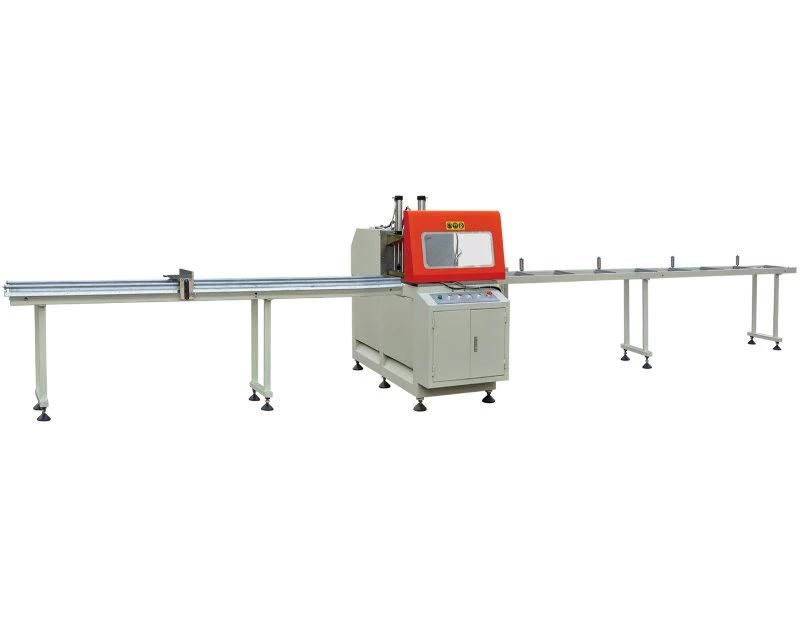

LJZG-550   90 Degree Single Mitre SawProduct Description

>Applies to cutting aluminum and PVC at 90 degree.

>High precision scale device, stable operation.

>Imported linear guide rails result highly precise cutting.

>Automatic protection guard results safe operation.

Technical Parameter:


Model	LJZG-550
Input voltage	380V 50Hz
Input power	3.0Kw
Air pressure	0.5~0.8MPa
Air consumption	110L/min
Spindle speed	3200r/min
Cutting length	100~3500mm
Cutting width	≤400mm
Cutting height	≤170mm
Cutting angle	90°
Saw feeding speed	0~3m/min
Saw blade standard	φ550×4.4×φ30×Z120
Overall dimension	2000×1200×1600mm
