• Model NO.：LJZ2-500*4500
• Input Voltage：380V 50Hz
• Input Power：4.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：430~4500mm
• Cutting Width：10~240mm
• Cutting Height：10~140mm
• Cutting Angle：90deg; 45deg;
• Transport Package：Plastic Film or Depends on Customers
• Specification：5400*1300*1450mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：15 Sets ,Month

Basic Info.

Model NO. LJZ2-500*4500 Input Voltage 380V 50Hz Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 430~4500mm Cutting Width 10~240mm Cutting Height 10~140mm Cutting Angle 90deg; 45deg; Transport Package Plastic Film or Depends on Customers Specification 5400*1300*1450mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 15 Sets /Month

Product Description

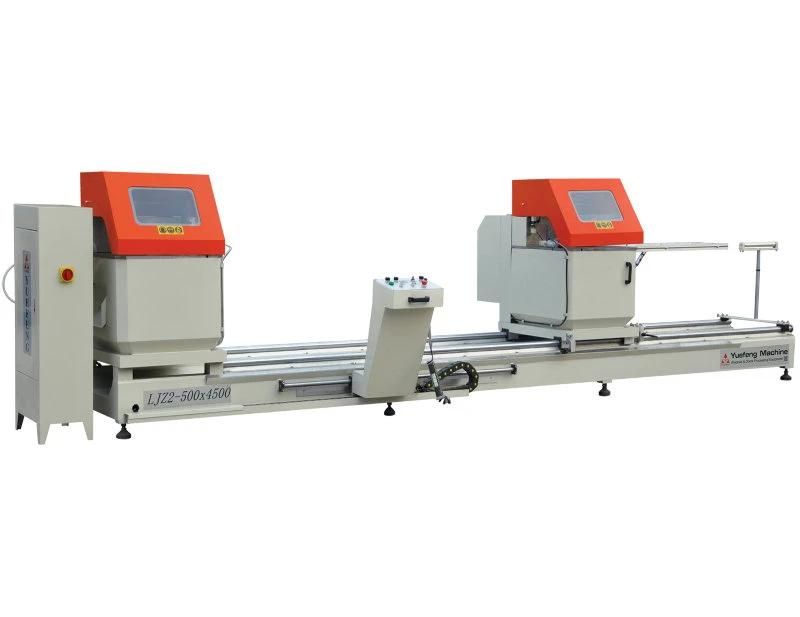

LJZ2-500×4500   Digital Display Double Mitre Saw
Product Description

> Used for cutting profiles such as aluminum and pvc profile and curtain wall.

> Two heads cutting angle 90°, 45° are available. The system can store various of profiles, convenience and efficiency.

>Swing arm type feeding results the gold cutting angle for the saw and profile, more stable,  durable, smooth, and accuracy.

> It has the features of high accuracy, adjustable, easy operation and has the international first-class Level.

Technical Parameter


Model	LJZ2-500×4500
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	430~4500mm
Cutting width	10~240mm
Cutting height	10~140mm
Cutting angle	90° 45°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5400×1300×1450mm
