End Milling Machine for Aluminum Window and Door Frame Profile
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Semi-Automatic
- CNC or Not：not CNC
- Voltage：380V
- Model：Lxd-200
Base Info
- Model NO.：LXD-200
- Input Voltage：380V 50Hz
- Input Power：1.5 Kw
- Air Pressure：0.4~0.6MPa
- Air Consumption：100L,Min
- Motor Rotation Speed：2800r,Min
- Max Processing Hole：200*42.5*75mm
- Milling Cutter Diameter：115-200mm
- Overall Dimension：880*830*1390mm
- Transport Package：Plastic Film or Depends on Customers
- Specification：800*830*1390mm
- Trademark：Yuefeng
- Origin：Jinan Shandong, China
- HS Code：8477800000
- Production Capacity：40 Sets,Month
Description
Basic Info.
Model NO. LXD-200 Input Voltage 380V 50Hz Input Power 1.5 Kw Air Pressure 0.4~0.6MPa Air Consumption 100L/Min Motor Rotation Speed 2800r/Min Max Processing Hole 200*42.5*75mm Milling Cutter Diameter 115-200mm Overall Dimension 880*830*1390mm Transport Package Plastic Film or Depends on Customers Specification 800*830*1390mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 40 Sets/MonthProduct Description

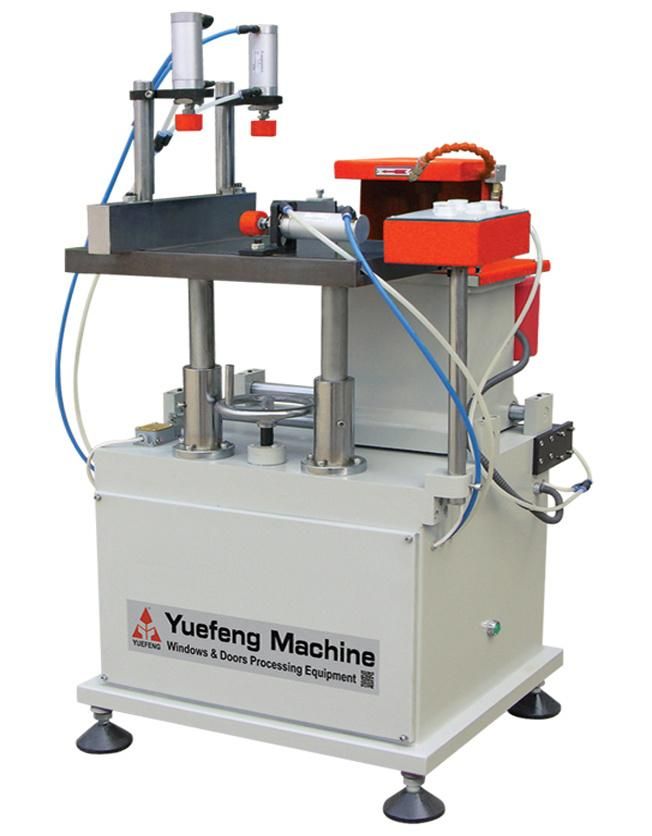

LXD-200 End Milling Machine
> Used for processing various profiles' end.
> Worktable can adjust vertically to make it suitable for different profiles.
Technical Parameter:
| Model | LXD-200 |
| Input voltage | 380V 50Hz |
| Input power | 1.5kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 100L/min |
| Motor rotation speed | 2800r/min |
| Milling angle | -65°~ +65° |
| Max milling range | 200×42.5×75mm |
| Milling cutter diameter | φ115~200mm |
| Overall dimension | 880×830×1390mm |
