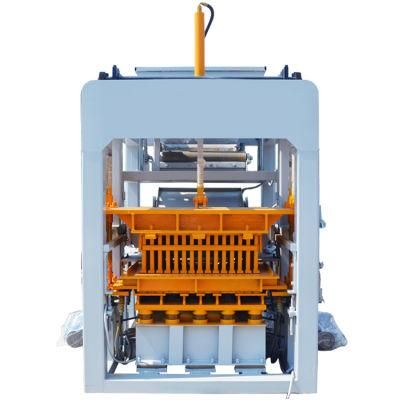

Cement Semi Block Making Machine Brick Making Machine (QT4-25)
TAIZHOU TOPLONG ELECTRICAL & MECHANICAL CO., LTD.- Certification：CE, ISO9001: 2000, ISO 9001:2008
- Type：Concrete Iron Prestressed Machinery
- Automation：Automatic
- Brick Raw Material：Concrete
- Processing：Brick Molding Machine
- Method：Hydraulic Pressure
Base Info
- Model NO.：QT-4-25
- Product：Composite Material
- Tolerance：0.5mm
- Condition：New
- Hs：8474809090
- Transport Package：Carton,Plywood
- Specification：CE
- Trademark：Toplong
- Origin：China
- HS Code：84748090
- Production Capacity：20PCS,Month
Description
| QT4-25 Semi-automatic Block Making Machine | |||||||||
| Main Configuration | Name | Quantity | |||||||
| Block Machine | 1set | ||||||||
| Hydraulic System | 1set | ||||||||
| Automatic Pallets Feeder | 1set | ||||||||
| Belt Conveyor | 1set | ||||||||
| Trolleys | 4sets | ||||||||
| Pallets | 15Pics | ||||||||
| JS500Mixing Machine | 1set | ||||||||
| Each Mould | Brick 240x115x53mm | 28Pcs/Mould | Power | 19.9KW | |||||
| Paving Block 200x100x60mm | 16Pcs/Mould | Weight | 4.5T | ||||||
| Hollow Block240x115x90mm | 14Pcs/Mould | Dimension | 2900×1600×2200mm | ||||||
| Hollow Block 390x190x190mm | 4Pcs/Mould | Pallet Size | 960×630×30mm | ||||||
| Moulding Cycle | 16-25Seconds/cycle | Vibration Mode | Board Vibration | ||||||
| Vibration Force | 70KN | Standard | JC/T920-2003 | ||||||
| High Production | Brick | 28Pcs/Mould | (8hours) 40000-48000Pcs | ||||||
| 240x115x53mm | |||||||||
| Hollow Block | 14Pcs/Mould | ( 8hours)16000-25200Pcs | |||||||
| 240x115x90mm | |||||||||
| Hollow Block | 4Pcs/Mould | (8hours) 5000-5800Pcs | |||||||
| 390x190x190mm | |||||||||
| Paving Block | 16Pcs/Mould | (8hours) 18400-23000pcs | |||||||
| 200x100x60mm | |||||||||
| Notes:Production depends on raw materials,block specification ,mould design and efficiency of user. | |||||||||
