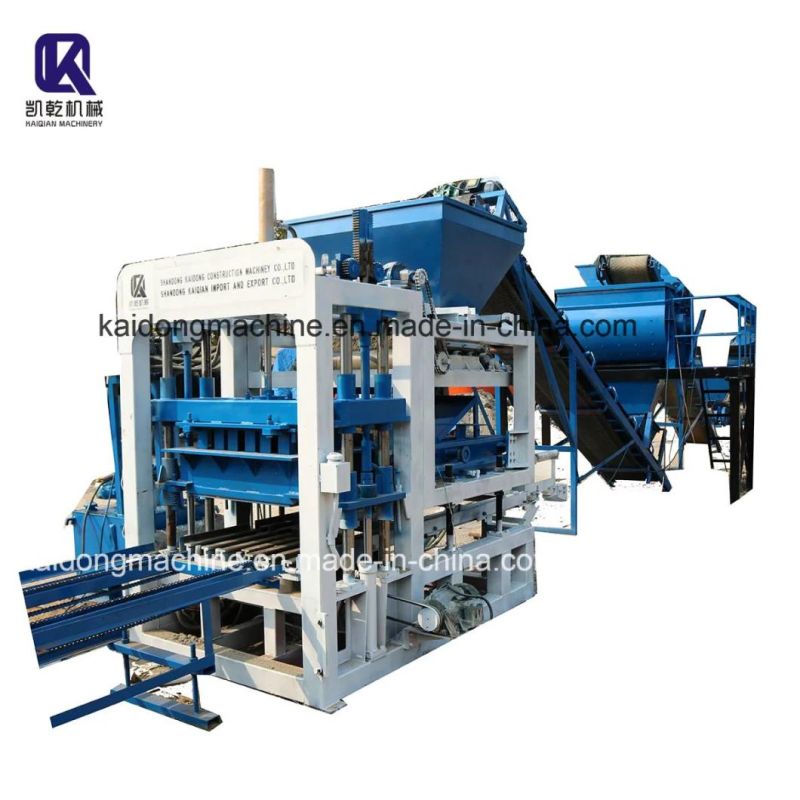

Qt4-22b Qt4-18building Brick Making Machine
SHANDONG KAIDONG CONSTRUCTION MACHINERY CO., LTD.- Warranty：1 Year
- Certification：CE
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Capacity：4500 PCS,Day
Base Info
- Model NO.：QT4-22B
- Vibration Force：40-50kn
- Workers：5
- Pallet Size：850X550mm
- Model：Full Automatic
- Brand Name：Kaidong
- Color：Customized
- Block Type：Hollow, Solid, Flyash, Curbstone
- Transport Package：Suit for Shipping
- Specification：3700x2700x2300mm
- Trademark：kaiqian machinery
- Origin：Shandong Linyi
- HS Code：8474802000
- Production Capacity：100
Description
Dimension of host machine
3700*2100x2300mm
Total machine power
29KW
Moulding area
400×800mm
Vibration force
45.5KN
Moulding period
15-25S
Mixer model
JQ500
The size of the pallet
850x500x25mm
General water Consumption
4T/every day
Weight of the host machine
4T
Voltage
220/380/440V
- Production capacity
Size(LxWxH)
Pcs/Mould
Pcs/ Hr
Pcs/ 8 Hr
400X100X200
7
1008
8064
400X150X200
5
720
5760
400X200X200
4
576
4608
3.PL1200 Batching machine
No
Item
Specification
01
Type
PL1200
02
Hopper store capacity
2500Lx3
03
Weighing hopper volume
1200L
04
productivity
56m3/h (dry material)
05
Batching accuracy
+2%
06
Power
12KW
07
Feeding height
3000mm
08
Maximum weighing
2000kg
09
Store hopper mount
3
10
General dimension
8300x1950x3000mm
11
Machine weight
4100kg
We are professional concrete brick making machine manufacture and exporter, company exported more than 90 countries and areas , products passed Europe CE standard .
We have many kind of automatic block machine price from 17000-90000 USD ,also have many semi-automatic block machine price from 850-7800 USD,can surely satisfy your needs , if you are interested about our machine ,welcome to contact :
