• Model NO.：CLJB2B-CNC-500*6000
• Air Consumption：60L,Min
• Cutter Feeding Speed：0-3m,Min
• Cutting Length：360-6000 at 90°, 760-6000at 45°
• Cutting Height：Max. 230mm
• Repeat Locating Length Tolerance：+-0.2mm
• Cutting Motor Power：2*2.2kw 2800r,Min
• Air Pressure：0.5-0.8MPa
• Blade Specification：Φ500*Φ30*4.4 Z=120
• Cutter Moving Speed：0-20m,Min
• Cutting Width：Max. 135mm
• Cutting Angle：45°-157.5°
• Transport Package：Standard
• Specification：16000*2600*2000mm
• Trademark：Truetec
• Origin：China
• Production Capacity：15sets,Month

Basic Info.

Model NO. CLJB2B-CNC-500*6000 Air Consumption 60L/Min Cutter Feeding Speed 0-3m/Min Cutting Length 360-6000 at 90°, 760-6000at 45° Cutting Height Max. 230mm Repeat Locating Length Tolerance +-0.2mm Cutting Motor Power 2*2.2kw 2800r/Min Air Pressure 0.5-0.8MPa Blade Specification Φ500*Φ30*4.4 Z=120 Cutter Moving Speed 0-20m/Min Cutting Width Max. 135mm Cutting Angle 45°-157.5° Transport Package Standard Specification 16000*2600*2000mm Trademark Truetec Origin China Production Capacity 15sets/Month

Product Description

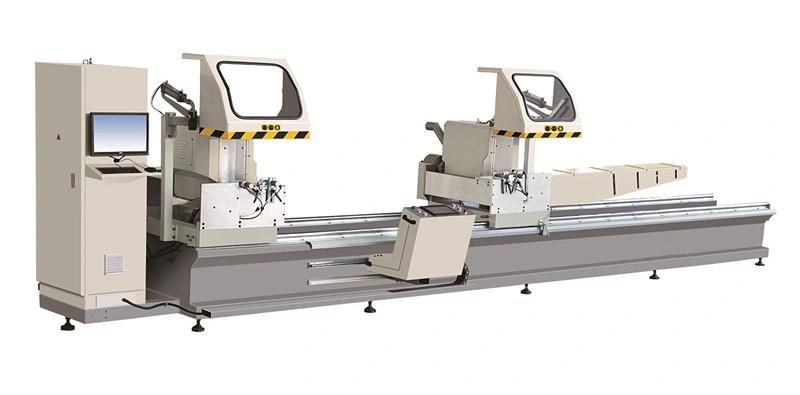

CNC Variable Angle Double Head Precision Cutting Saw

Equipment Advantages

1. The machine adopts Europe model with neat appearance and good style.
2. The directly connected blades adopt lever-swing cutting type.
3. The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutter.
4. The imported high precision blade makes the cutting surface more smooth.
5. The cutting angle is auto adjustable through the imported servo motor between 45°to 157.5°.
6. Imported control system can accomplish cutting optimization.
7. Several profile processing dimensions can be input in one time and make continuous cutting.
8. The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
9. The air proof device under the worktable has wonderful crumbs-clearing effect.
10. The following saw cover keeps it working in the clean environment.
11. The profile is clamped by two cylinders in every head, and kept the cutting security.

Technical Data


Power supply	380V 50Hz 3P
Cutting motor power	2*2.2kw, 2800r/min
Servo motor power	2*1kw, 1*1.5kw, 4050r/min
Operation air pressure	0.5-0.8MPa
Air consumption	60L/min
Blade specification	ø500*ø30mm*4.4,  Z=120
Cutter feeding speed	0-3m/min
Cutter moving speed	0-20m/min
Cutting length	360-6000 at 90° 760-6000 at 45°
Cutting width	Max 135mm
Cutting height	Max. 230mm
Cutting angle	45°-157.5°
Repeat locating length tolerance	±0.2mm
Overall dimension	7800*1500*2040mm
Weight	2500kg

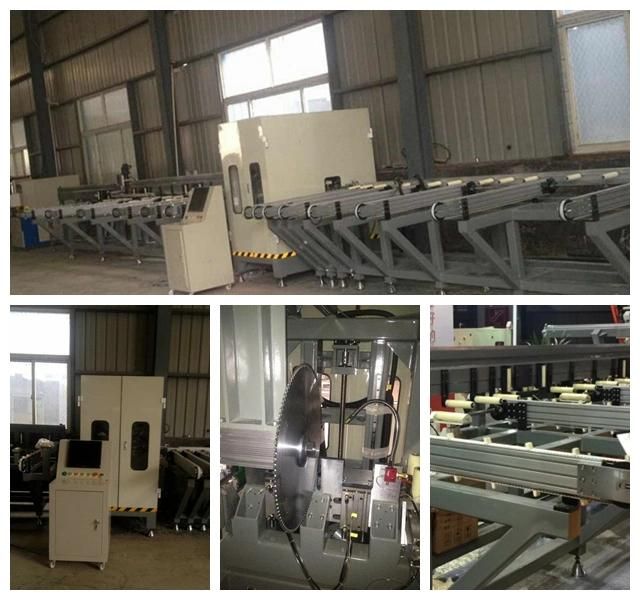

Machines Details
Main Accessory


Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

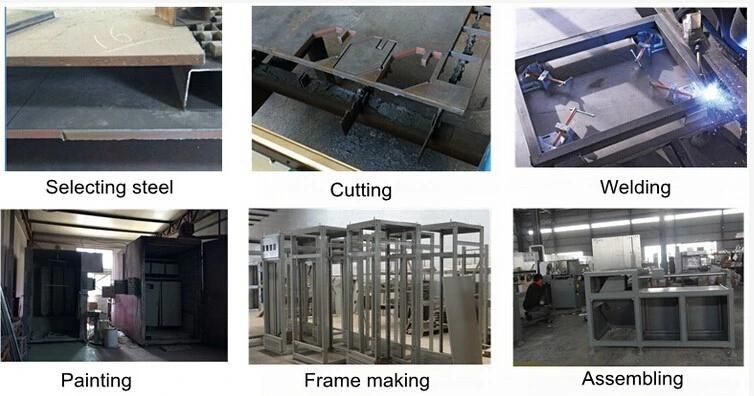

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.




Our Service

Pre-sale service

Free contact for the most suitable machine
Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

Payment

L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.
Alibaba trade assurance , which will protect your money in safe and ensure our quality.
FAQ:
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

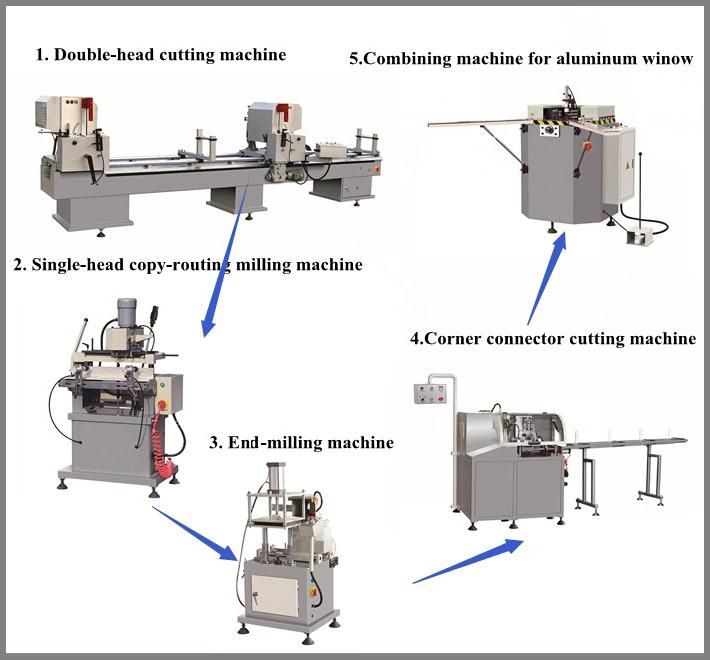

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
