• Model NO.：pu shuuter door machine
• Product Name：PU Foam Roller Shutter Roll Forming Machine
• Width of The Plate：100-160mm
• Rollers：18-22rows
• Transport Package：Simple Plastic Film Protection
• Specification：8.0*0.6*1.2m
• Trademark：Xinnuo
• Origin：Hebei China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. pu shuuter door machine Product Name PU Foam Roller Shutter Roll Forming Machine Width of The Plate 100-160mm Rollers 18-22rows Transport Package Simple Plastic Film Protection Specification 8.0*0.6*1.2m Trademark Xinnuo Origin Hebei China HS Code 8455221000 Production Capacity 30 Sets Per Month

Product Description

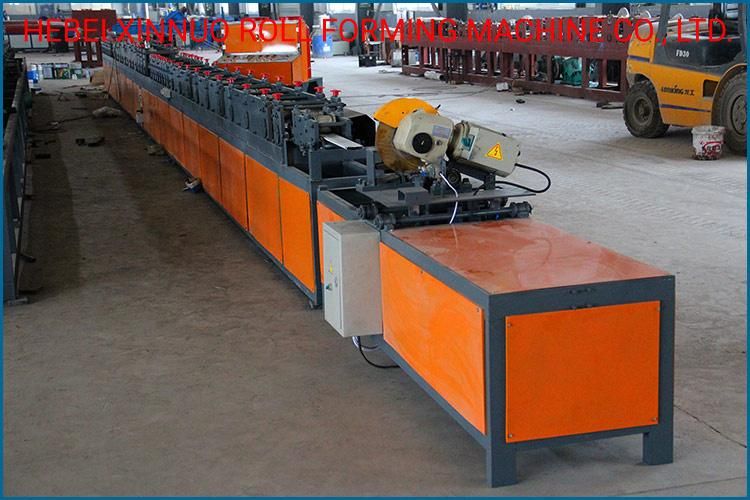

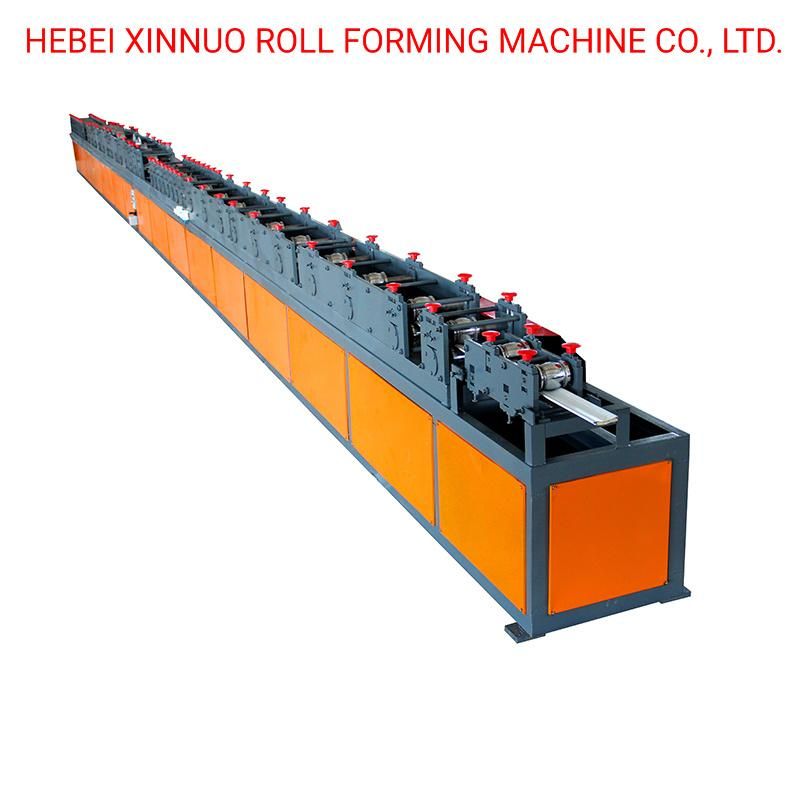

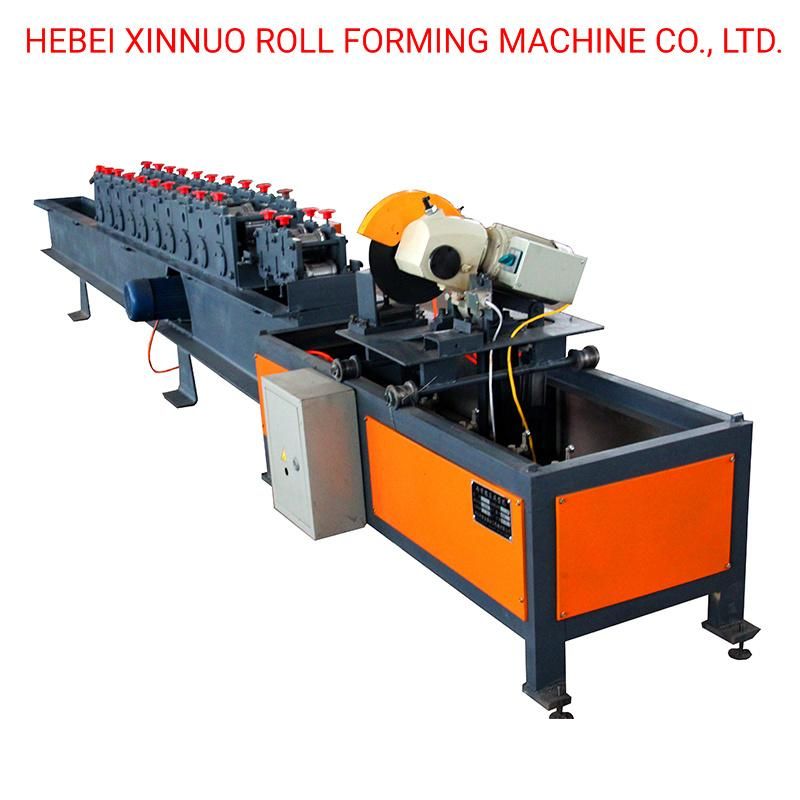

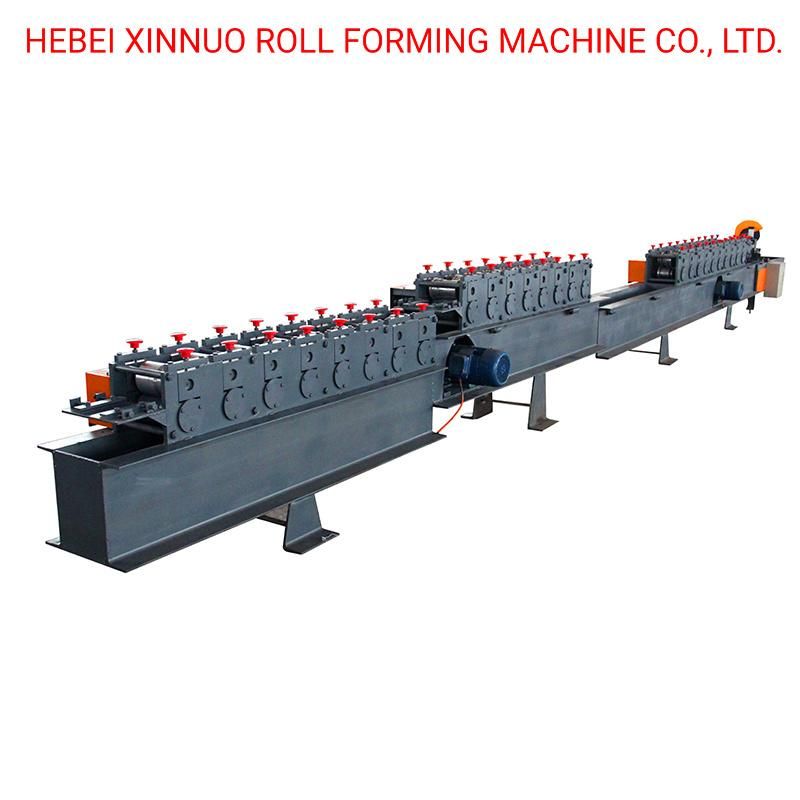

Metal steel pu garage door rolling shutter door slat roll forming machine/production line made in China

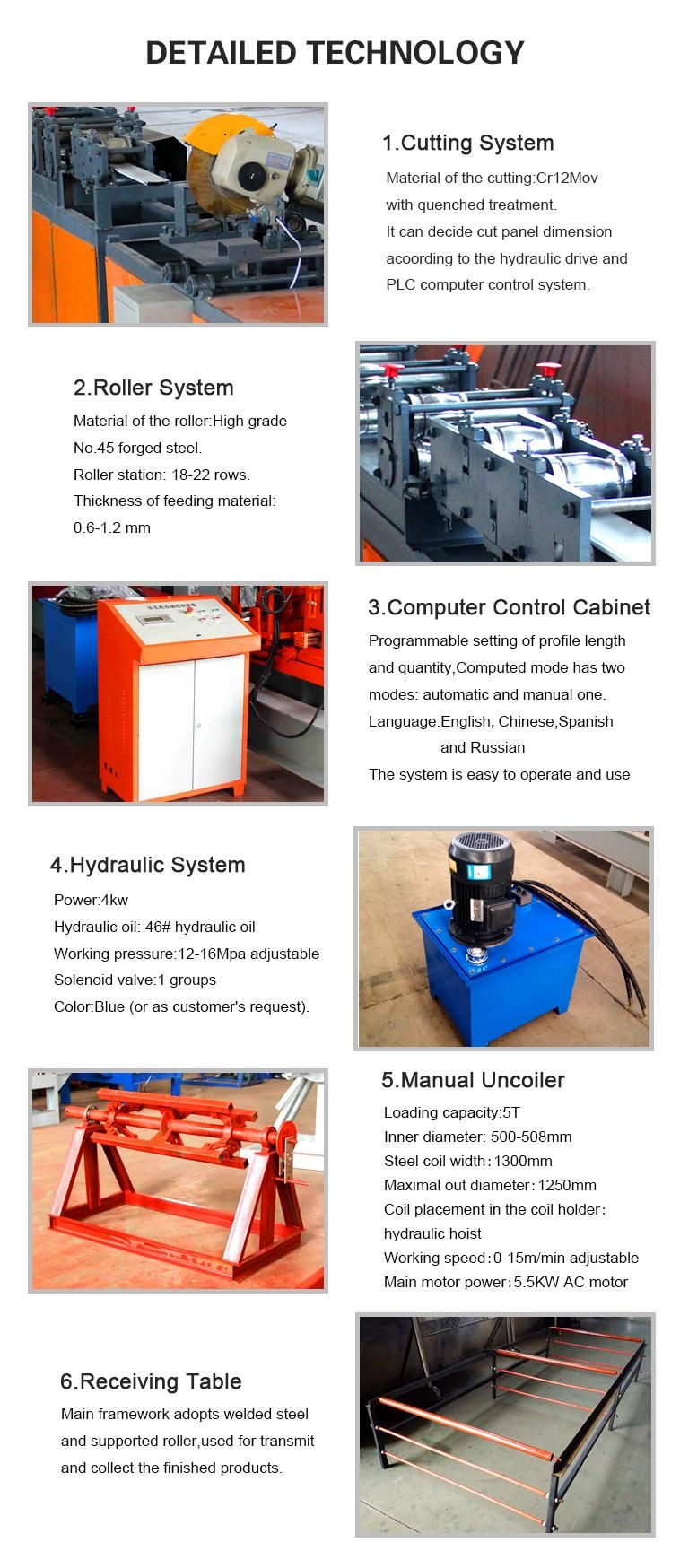

Technique parameters of the processing line

Control System	PLC Control Touch Screen
Main Frame	16mm steel welding
Main Power	5.5kw
Sizes	22000*700*900mm
Roll Station	22stands
Shaft Diameter	42mm
Feeding Thickness	0.3-0.8mm
Roller material	45# steel

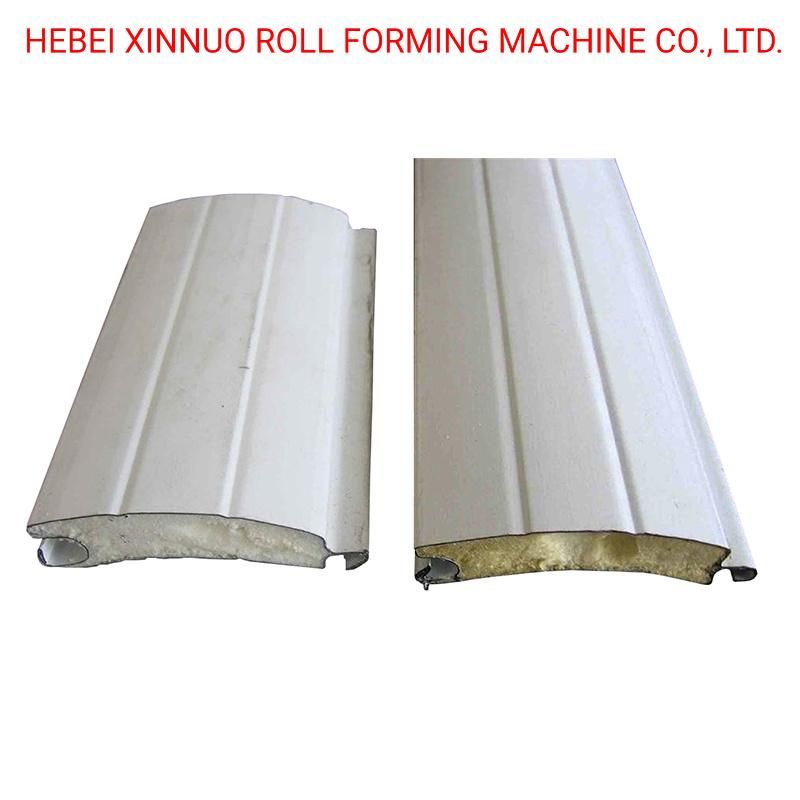

foaming roller shutter door:

1.Appearance and delicate: is made of high qualified steel plate (aluminum) rolling forming, not filled with middle carbon fluorinated compounds of polyurethane foaming materials, heat insulation, sound insulation, heat preservation.

2.Use fast: in the process of start, very swift and no noise, if use motor drive, power changed hands move way can be met.

3.Durable: using high quality materials, sophisticated production technology and production technology, meet slight collision after can sprung automatically deformation.

4.Save a space: the closed beta guide drive, promoting a door with other than to save the building, the internal space, installation is more convenient.

FAQ:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

If any questions,you can call me mobile phone at any times

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

Our service:

1:Engineers available to service machinery overseas.

2: Warranty: 12 months.

3:Technical guidance for free forever.
