EPS Cement Sandwich Panel Machine, Lightweight Concrete Wall Panel Machine
Guangxi Hongfa Heavy Machinery Co., Ltd.- Automatic Grade：Semiautomatic
- Power Source：Electric
Base Info
- Model NO.：HFP530A
- Screw Design：Not Mention
- Certification：CE, ISO
- Condition：New
- Customized：Non-Customized
- Thickness：Adjustable
- Density：500-700kg,Cbm
- Widely Used：Can Be Used for Internal and External Wall Constr
- Weight：1.5t
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- EPS Wall Panel Features：Waterproof, Fireproof, Insulation, Environment Pr
- Efficiency：7 Women,15sets Molding Cars Per 8 Hrs
- Wall Panel Length：2000-3000mm
- Aluminium Mold：10 Free Ready Designs,Other Customized
- Capacity：40PCS 100mm Thicnkness,Set
- Mixer Capacity：3.6cbm
- Raw Material：EPS, Cement, Sand, HPMC,Foam Concrete
- Control System：Germany Simens
- Product Features：Waterproof, Fireproof, Heat Insulation
- Power：4kw,5.5kw
- Transport Package：Sea Worthy Package
- Specification：3000*2250*1130mm
- Trademark：hongfa
- Origin：Guangxi, China (Mainland)
- HS Code：8474802000
- Production Capacity：5000 Sets,Year
Description
Moulding Machine Parameter and ProductivityOverall dimensions(mm) Power(KW) Output / Pieces per mould 60mm 75mm 90mm 100mm 120mm 150mm 40pcs 36pcs 32pcs 30pcs 26pcs 22pcs

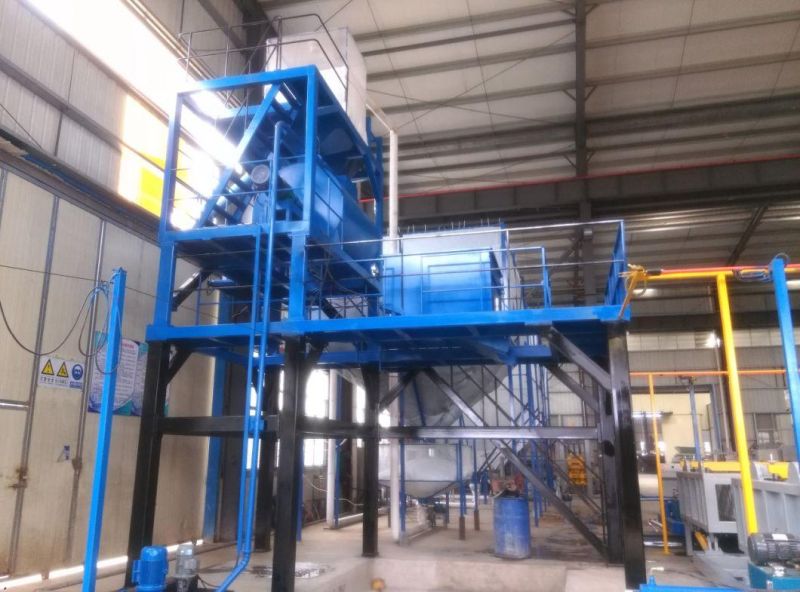

1. Mixing plant
HONGFA mixing plant consists of mixer, movable infusion unit and aggregating system. It can mix all raw material automatically and record every data for production. 3.6CBM capacity mixer guarantees infusion efficiency. It only needs about 15seconds to finish a panel with size 2440*610*100mm.

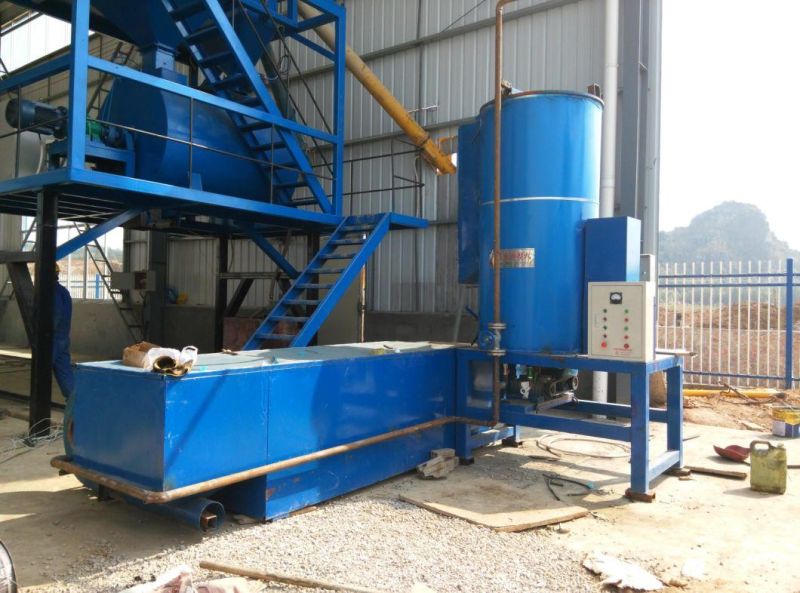

2. EPS expander
EPS expander is used for expanding raw polysterene, one-time expander can make EPS around 15-18kg/CBM, interval expander can get proportion on 9-11kg/CBM.

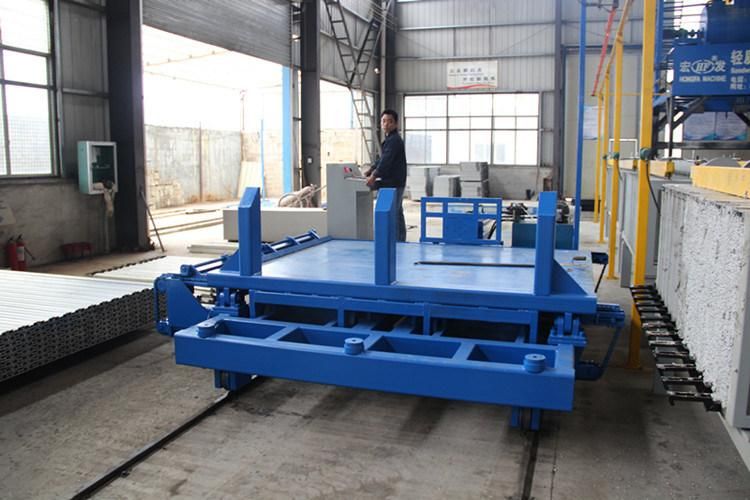

3. De-molding machine
De-molding machine can pull the cured panels out deirectly, Hongfa design it based on 6 years panel manufacturing experience, make it possible that demolding machine is movable, after demolding, the molds can be installed immediately without any delay. Multiwork is possible so efficiency is triple compared to traditional vertical manual and semi horizontal production line.

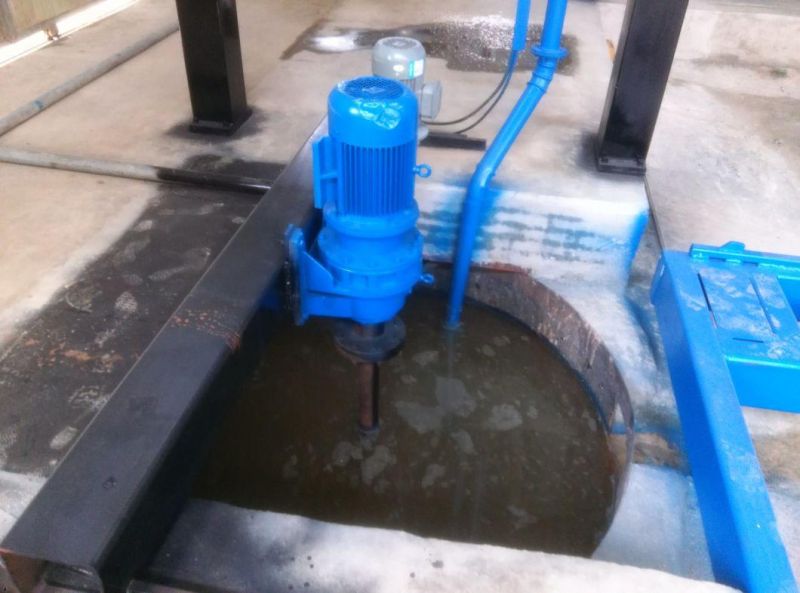

4. Recycling unit
Recycling unit can save eveything in production, waste slurry settling in underground mixer, the cement and sand will be pumped into mixer again for next mixing cycle. Keep production clean and make waste recycling, cost saving.
About HONGFA
We are a construction and building materials equipments manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,Concrete Block Shaping Machine,concrete tile making machine and concrete pipe making machine etc. with more than 29 years experience since 1990 and being the biggest manufacturer in China at present.All the products are conformity with the standard
of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick &Tile field in China" and other honors.
Hongfa Machinery's Honor
1.One of Top Ten Influential Brands in China Brick &Tile Industry
2.China National Enterprise Abiding By Contract & Keeping Good Faith
3.Quality and Credibility of the Dual-protection Demonstration Unit
4.High and New Technology Enterprise
5.Famous Trademark of China
6.Star Enterprise with China Patent
7.AAA Grade Credit Enterprise
8.Consumer Satisfaction Unit
9.One of Top 100 building Material Industry Brands of China
10.One of Top Ten Good Faith Units
11.Advanced Exporter in Guangxi Province
12.Advance Quality Management Unit
FAQ
Q: What is the MOQ?
A: 2 sets.
Q: Can I mix different designs?
A: Sure!
Q: Can I get a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
Q: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change
Q: When you ship my order?
A: Normally 30-45days after receiving your payment, but it can be negotiated based on order qty and production schedule.
Q: How about the quality guarantee period?
A: One year!
Q: How can you guarantee the production quality?
A: Our production quality follow China construction machinery standard JGJ33-2012. We have 27 years experience on producing the machines and will be inspected by QC team for ach shipment. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
