High Output Qt4-18 Big Production Colourful Paving Block Making Machine in Bangladesh
Shandong Xinming International Trade Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Model No.：Qt4-18
- Rated Pressure：21MPa
Base Info
- Model NO.：QT4-18
- The Size of Pallet：850*550*20mnm
- Mixer Model：Jq500 Concrete Mixer
- Vibration Force：35.5kn
- Factory Area：1000-1500m2
- Pallet Number：1000 PCS
- Mold Period：18-20seconds
- Consumption：265.6kw,8h
- Weight of Block Machine：3t
- Labor：7~8 Workers
- Block Type：Hollow Soild Paving Block
- Standard Hollow Block：400*200*200mm
- Color：Optional
- Typr of Machine：Hydraulic Brick Machine
- Transport Package：Nude in Container
- Specification：3700*2100*2300mm
- Trademark：Xinming
- Origin：China
- HS Code：8474802000
- Production Capacity：500PCS,Month
Description
QT4-18 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable. It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.
Block Type
400*150*200mm
8000Pcs/8h
400*100*200mm
11200Pcs/8h
450*120*200mm
9600Pcs/8h
200*100*60mm
19200Pcs/8h

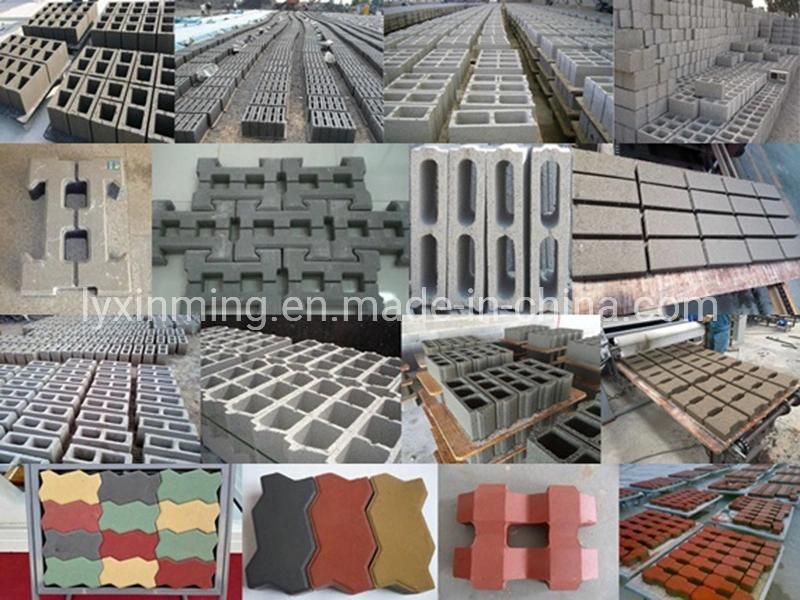

Block pictures
Workers Number: 5-6 Workers
Two workers to load material into Mixer
One Workers to operate block machine
One Workers to load pallet into pallet box of block machine
One or Two workers to carry fresh blocks to curing size
Material Consumption
Here we take 400*200*200mm hollow block as expample and 10% cement in raw material
Our Service
1. Maintance: QT4-18 block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.
2: Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.
3. Guarantee Time: One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.
4.Brick factory construction guidance:For customers who want to work in this industry, we will give guidance to the establishment of the factory, including the selection of machines, production arrangements, personnel arrangements, etc.

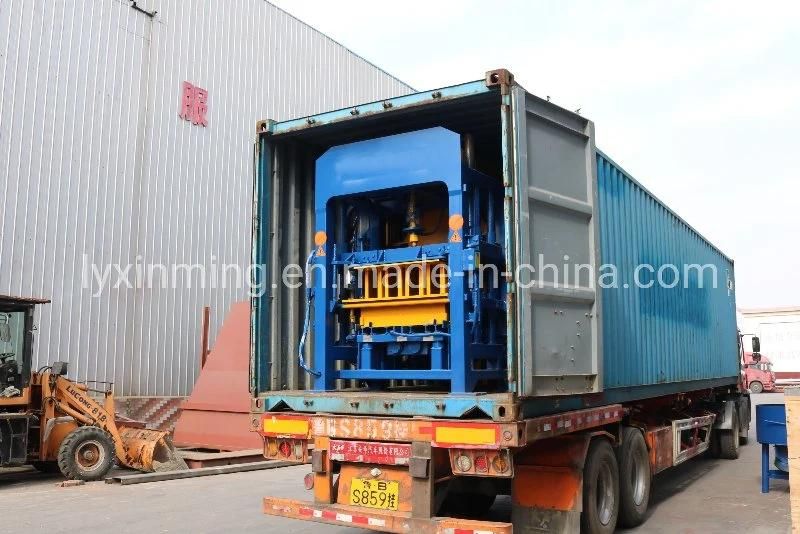

Standard packaging:Nude in container
If you need to use a wooden pallet to reinforce the machine, you will need to pay an additional packaging fee of $50 per square meter.
Company Information
Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories. Our Factory is located in Linyi City, Shandong Province, China.
On the basis of Rich experience and advanced Germany technologies, Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
Contact Us For More Information
