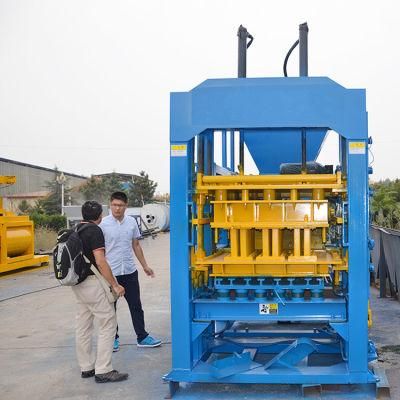

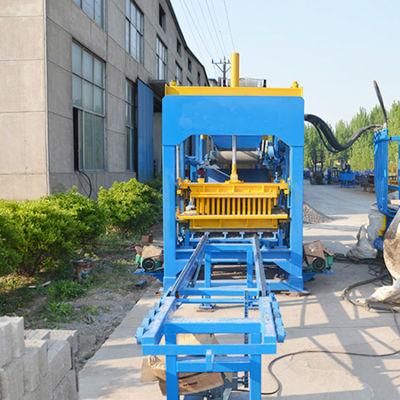

Qtj4-35 Block Moulding Machine Prices in Nigeria
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Product Name：Qtj4-35 Concrete Block Making Machine
- Pallet Size：850X450mm
Base Info
- Model NO.：QTJ4-35
- Color：Client Requirement
- Vibration Frequency：2800-4500 ( R,Min)
- Weight：1.5t
- Block Type：Hollow Block,Solid Block,Paver,Curbstones,etc
- Molding Cycle：15s
- Vibration Type：Platform Vibration
- Raw Material：Cement,Sand,etc
- Power：9.7kw
- Transport Package：Standard Export Package
- Specification：2050x1660x1900mm
- Trademark：SHIYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：5000set,Year
Description
Technical Parameters
Overall Dimension
2060*1730*2580mm
Main Vibration Form
Platform Vibration
Vibration Frequency
2800~4500 ( r/min)
Pallet Size
850*450mm
Molding cycle
35 (s)
Overall Power
9.7KW
Vibration Force
60KN
Total Mass
1.5T
Demolding method
Hydraulic
General water consumption
5T/Day
Factory Area
500m2

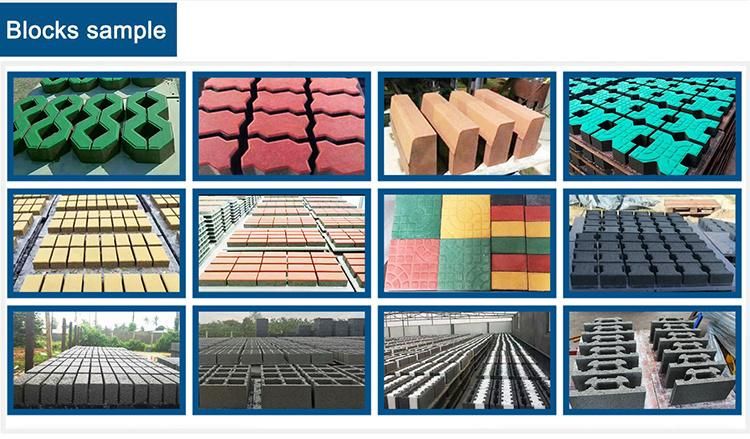

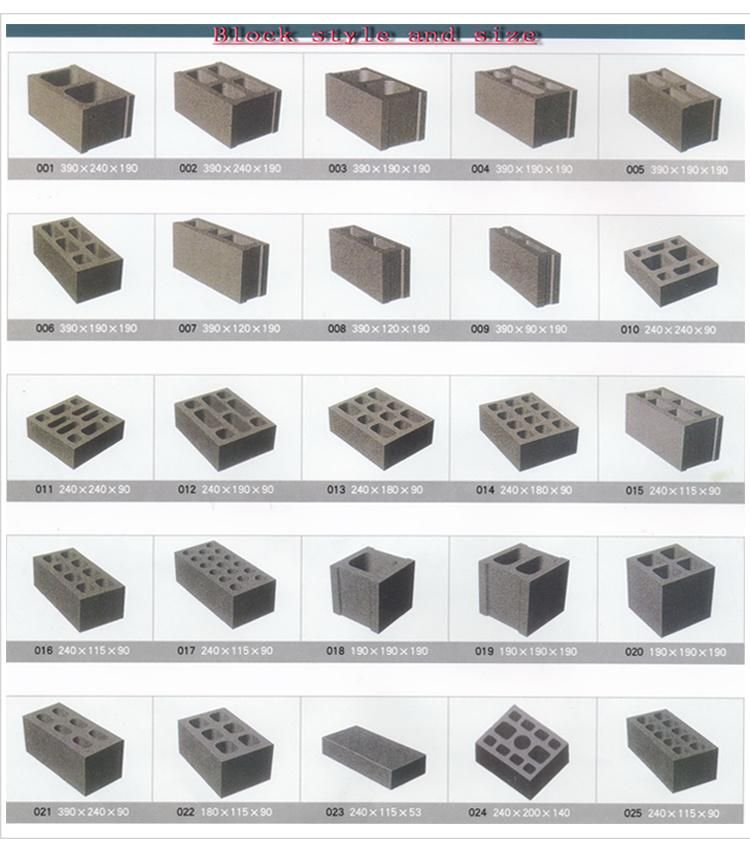

Applied Products
Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone,
colored pavers ,etc.
Raw Material
Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw
material , etc.
Installation service:
Machine installation and operation training will be supported by our engineers in buyer's place about 1 week.
The buyer should support following:
1. USD80/day for our engineers
2. Accommodation and Round-trip tickets.
After sale service:
During the 1st year, we will supply followings for free:
1. spare parts of machine and equipment (except quick-wear parts)
2. repair for equipment's broken (design, work process and production)
