• Model NO.：shutter door machine
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Technical parameters:1Name of commodity & specificationroller shutter door roll forming machine2Main motor power3kw, 3 phase3Hydraulic motor power3kw4Hydraulic Pressure10-12MPa5Voltage380V /3phase/ 50 HZ (or as your requirement)6Control SystemPLC Delta Inverter7Main Frame300mm H-Beam8Backboard Thickness14mm9Chain Size20mm10Feeding Materialcolor steel coils11Feeding Thickness0.3-0.8mm12Productivity8-12m/min13Roll Station1114Roller Diameter52mm15 Roller material 45# steel16 Cutter materialCr12 , quenched17Cr-Plating Size0.05mm18Overall Size3000×800×1000mm19Total Weight2T20ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set

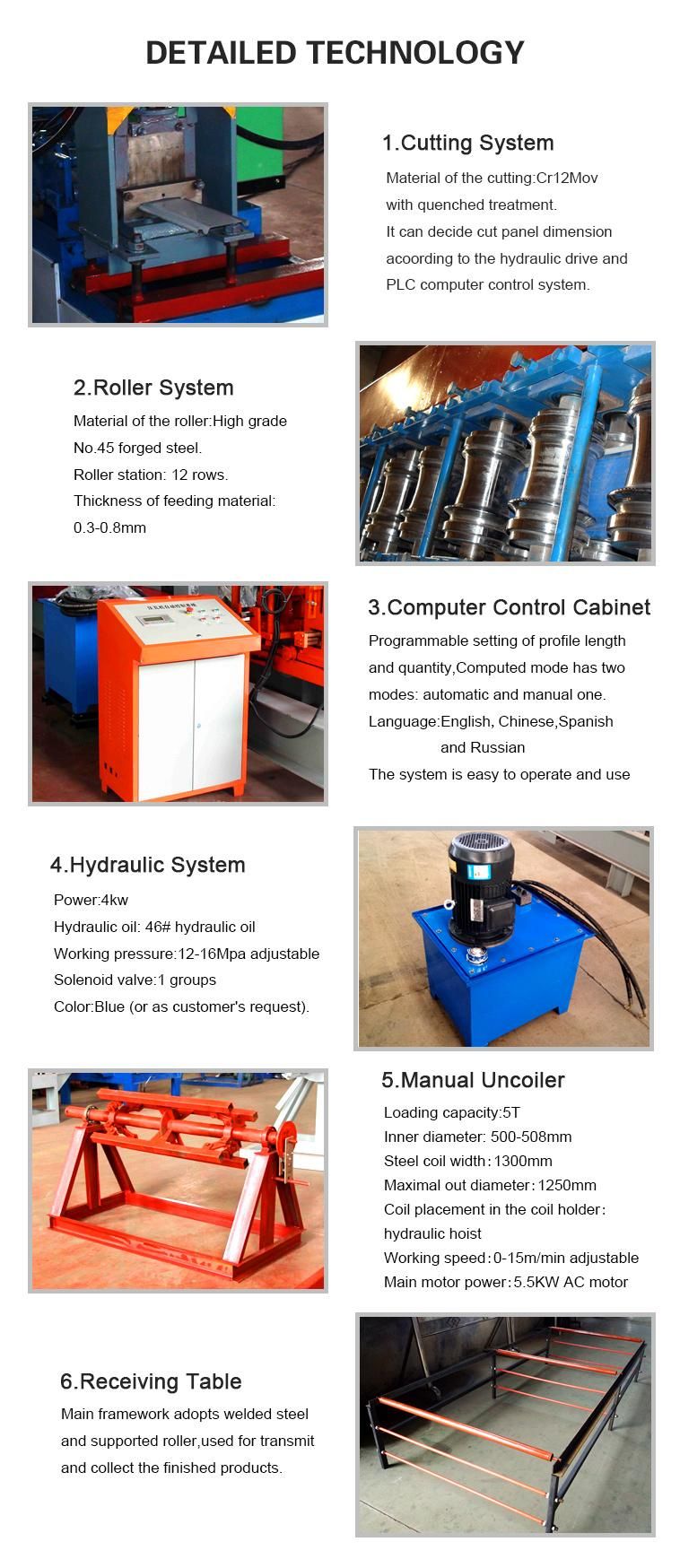

 Equipment components: Manual uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting, run out table

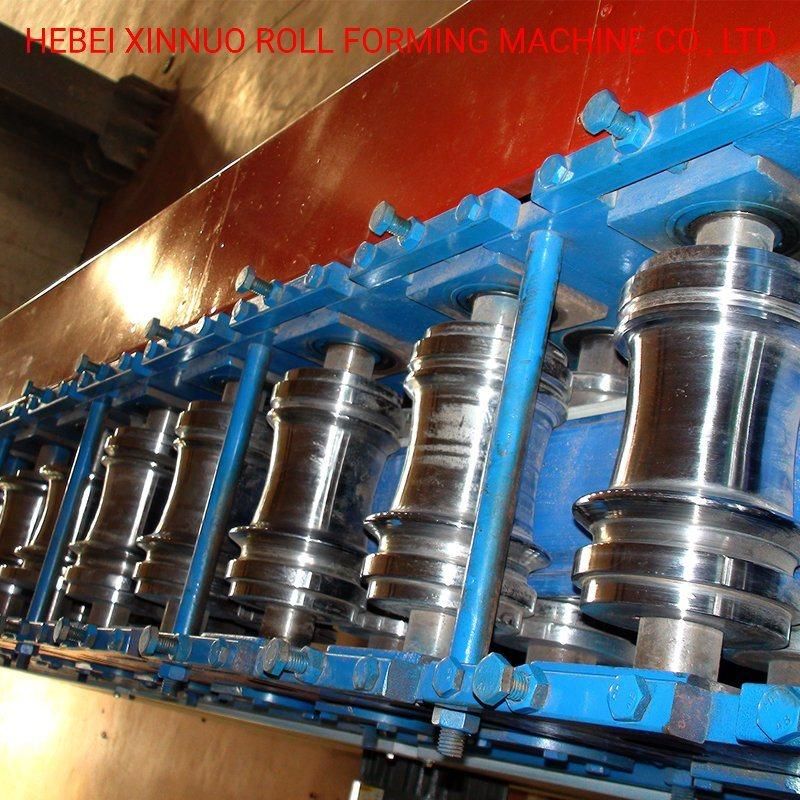

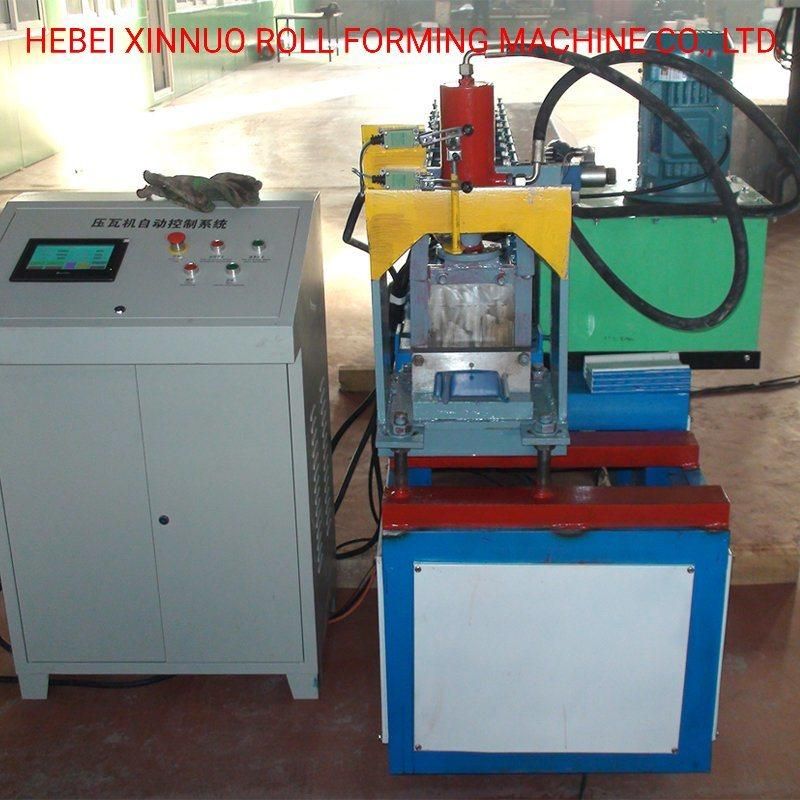

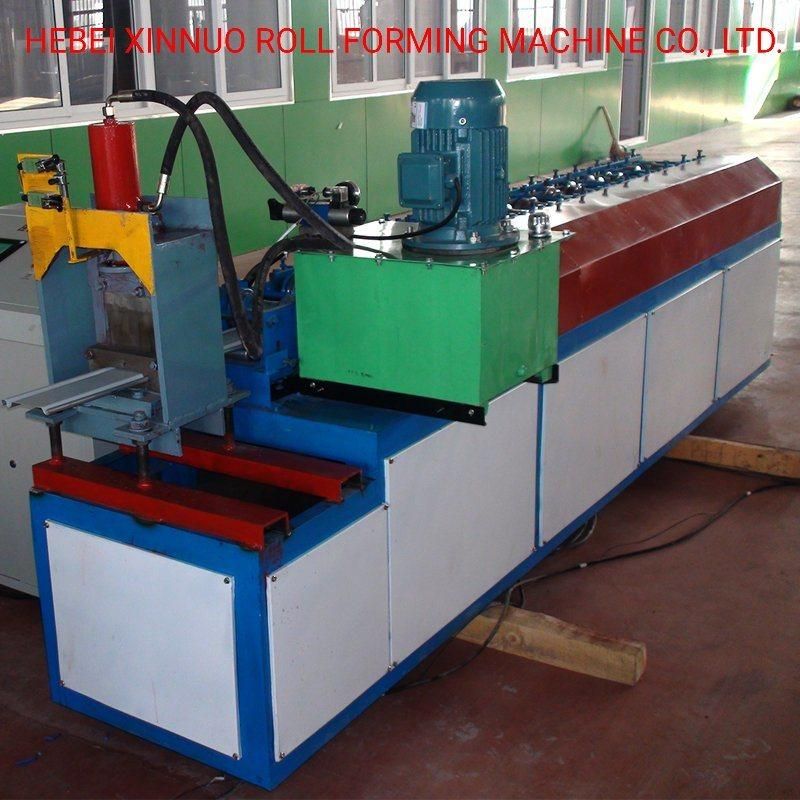

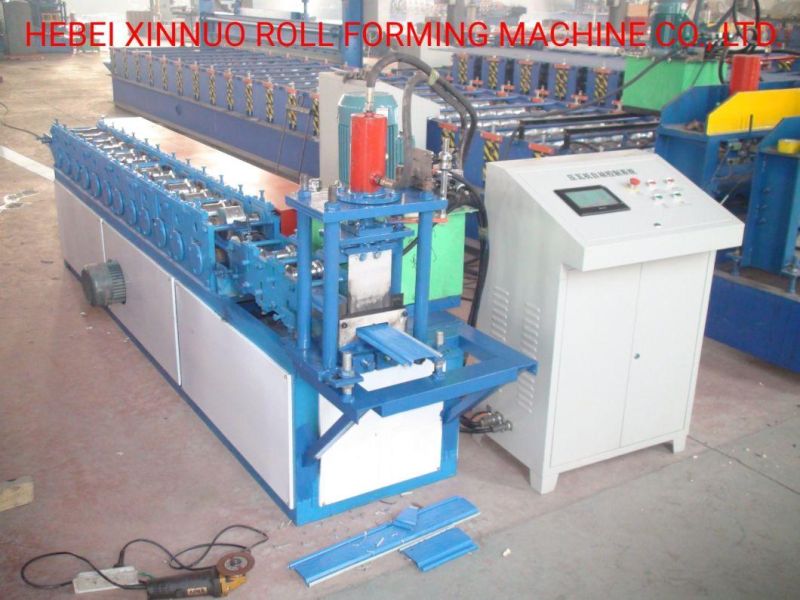

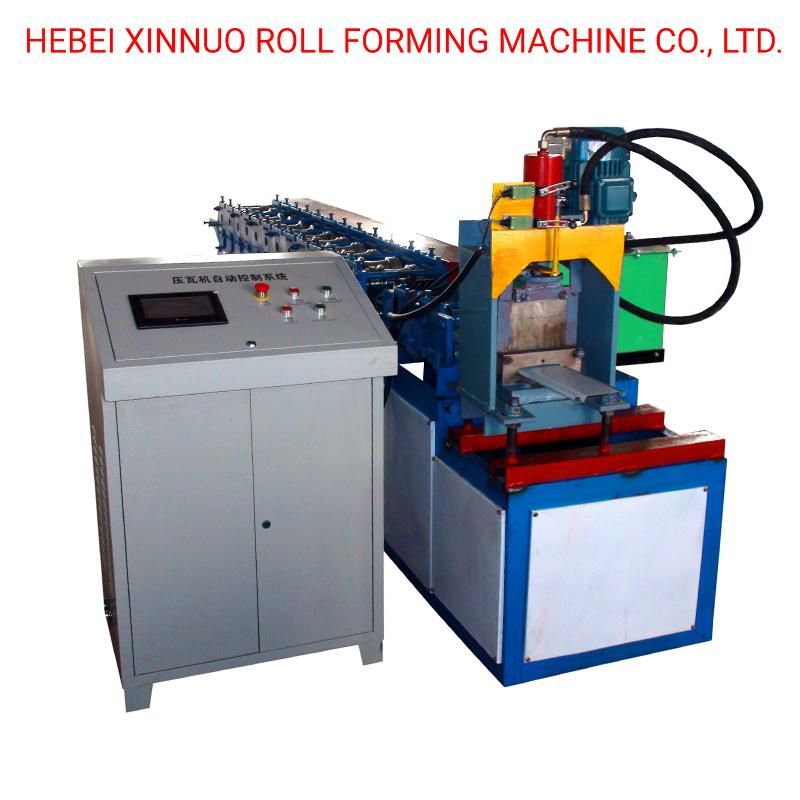

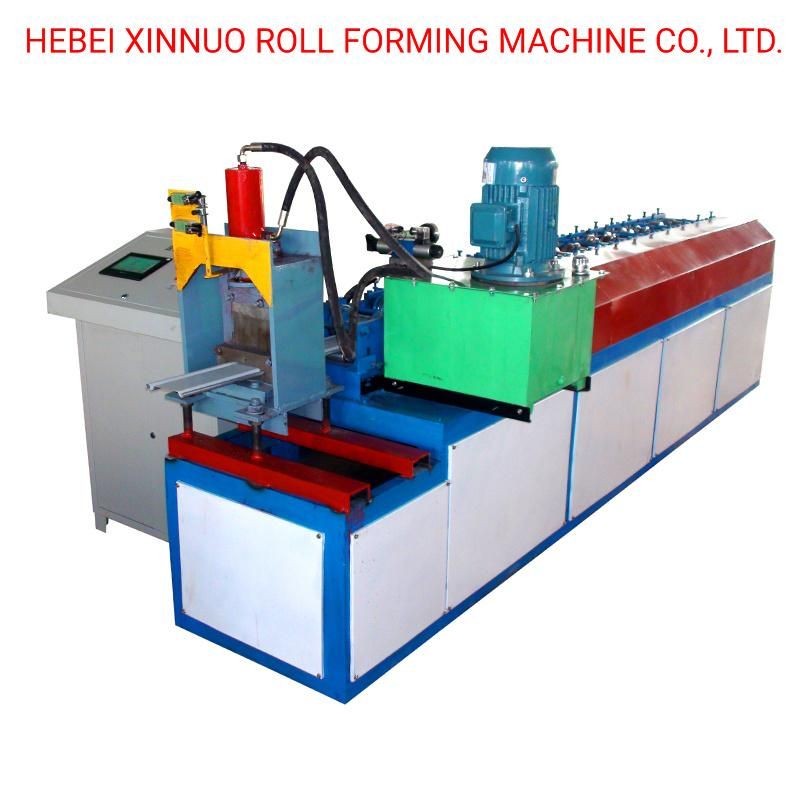

2.the picture of the roller shutter door roll forming machine
