Qt8-15 Hydraulic Cylinder Brick Making Machine Curbstone Block Machine
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Overall Power：37kw
- Main Vibration Form：Platform Vibration
Base Info
- Model NO.：Qt8-15
- Vibration Frequency：4600(R,Min)
- Pallet Size：1020*900mm
- Molding Cycle：10-15s
- Rated Pressure：21MPa
- Color：According to Your Need
- Warranty：12 Months
- Capacity：15300PCS-74880PCS
- Product Name：Qt8-15 Hydraulic Cylinder Brick Making Machine Cur
- Transport Package：According to Your Need
- Specification：8300*1860*3000mm
- Trademark：shiyue
- Origin：Shandong Province China
- HS Code：8474802000
- Production Capacity：15300PCS-74880PCS
Description

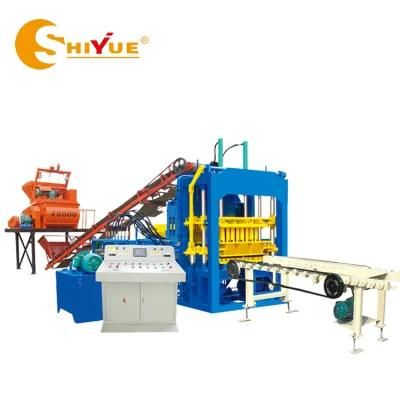

QT8-15 Full automatic block making machine
Overall Dimension
8300*1860*3000mm
Rated Pressure
21MPa
Main Vibration Form
Platform vibration
Vibration Frequency
2800~4500r/min
Pallet Size
950*900MM
Molding Cycle
15-25S
Overall Power
55.5KW
Vibration Force
45KN
Total Mass
9T
Demolding Method
Hydraulic
Factory Area
500m²
Applied Products
Concrete blocks, hollow/solid blocks, pavers, interlocking blocks, curbstone, colored pavers, etc.
Raw Material
Crushed stone, sand, cement, dust, and fly ash, gravel, slag, and other raw material , etc.

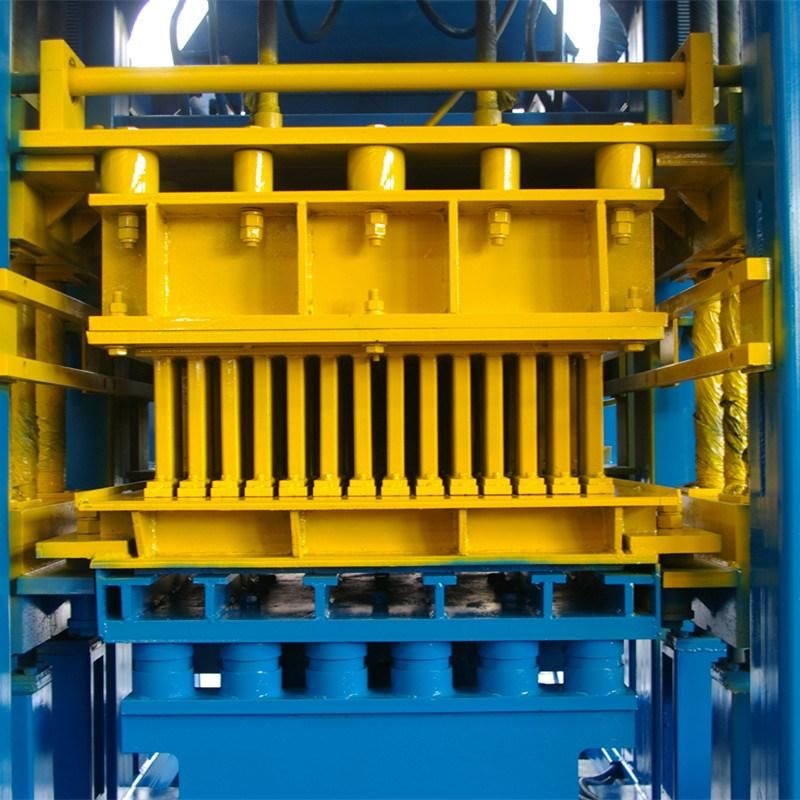

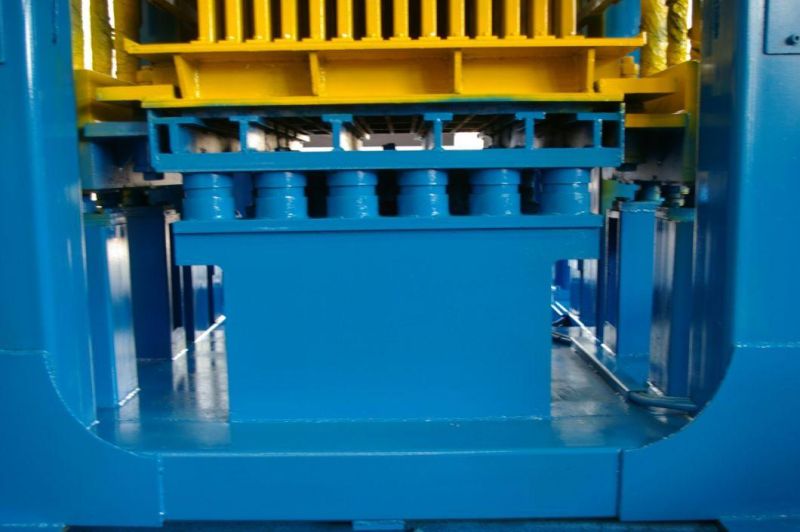

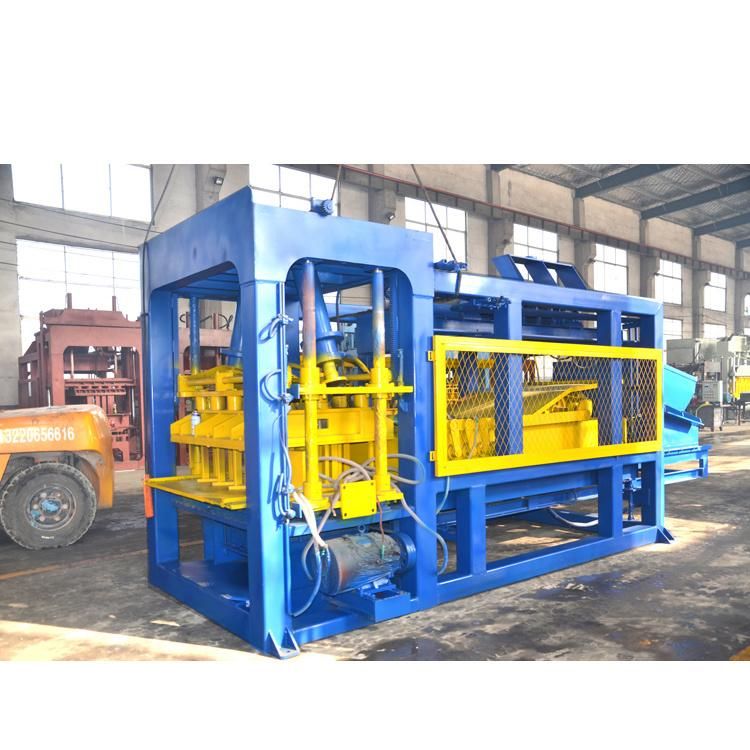

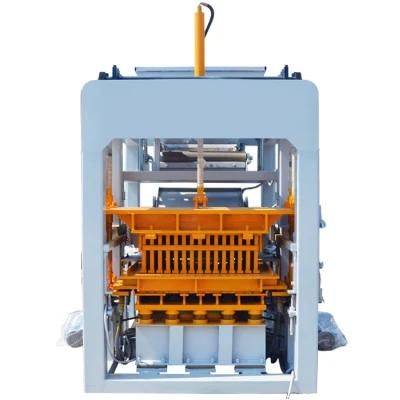

PRODUCT DETAILS

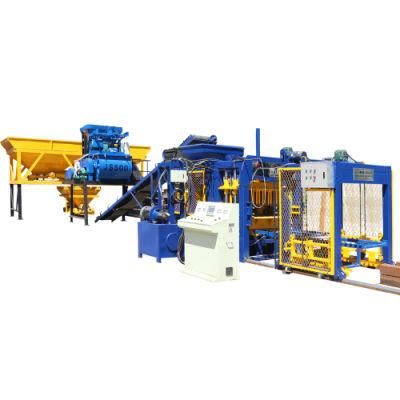

SUPPORTING FACILITIES
Packaging & Shipping

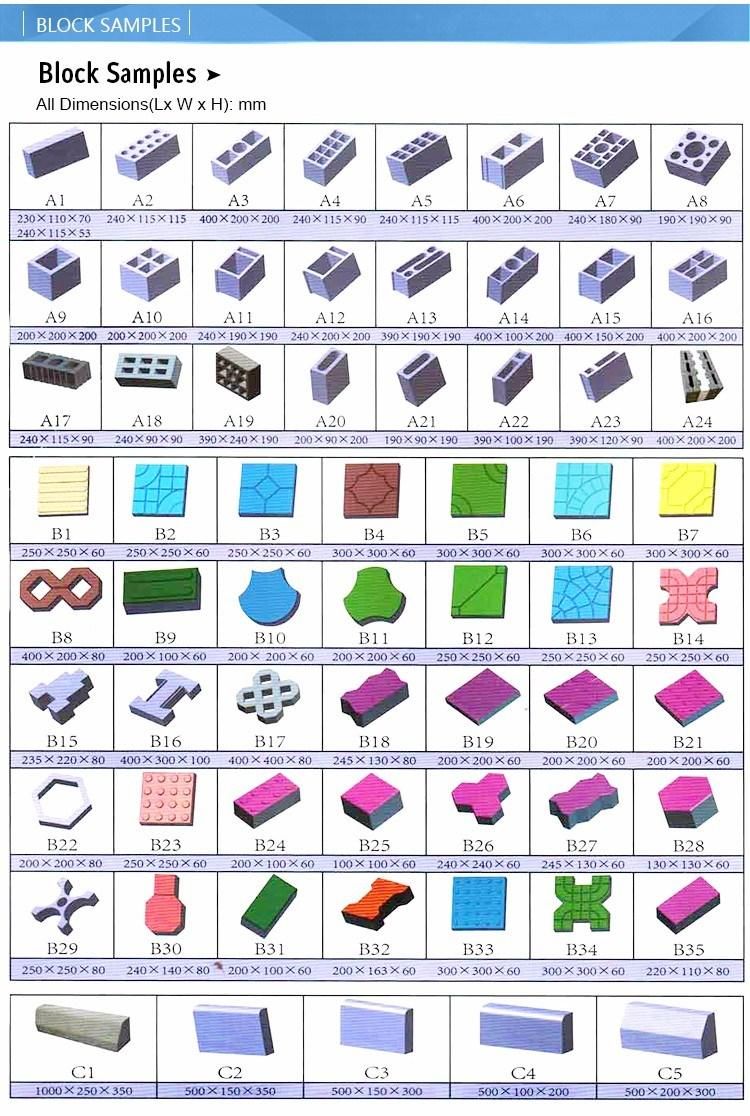

BRICK SAMPLES
