Qt4-15 High Productivity Concrete Block Making Machine Price
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Product Name：Qt4-20 Semi Automatic and Hydraulic Concrete Color
- Color：According to Your Need
Base Info
- Model NO.：Qt4-15
- Rated Pressure：16-21MPa
- Main Vibration：Platform
- Pallet Size：1020*570mm
- Molding Cycle：20s
- Control Way：Electric Cabinet
- Mold Technology：Carburizing Heat Treatment; Wire Cutting
- Weight：5t
- Motor Brand：Siements Motor
- Transport Package：According to Your Need
- Specification：7100*1600*2610mm
- Trademark：shiyue
- Origin：Shandong Province China
- HS Code：8474802000
- Production Capacity：5700-25000PCS
Description
Technical Parameters of QT4-20 block machine
Overall Dimension
7100*1600*2610mm
Rated Pressure
16-21MPa
Main Vibration Form
Platform Vibration
Vibration Frequency
4600 ( r/min)
Pallet Size
1020*570mm
Molding cycle
15-25 (s)
Overall Power
27.5KW
Vibration Force
40KN
Total Mass
5T
Demolding method
Hydraulic
Molding area consumption
400*800mm
Factory Area
500m2
Applied Products
Concrete blocks, hollow/solid blocks, pavers
Raw Material
Crushed stone, sand , cement, dust,fly ash, gravel, slag
PRODUCT CAPACITY
Item | Specification Size(L*W*H) | Qty/mold (pcs) | Cycle Molding | Per day (Pcs) |
Hollow brick | 400*200*200mm | 4 | 15-20s | 7200-9600 |
Porous Brick | 240*115*90mm | 14 | 15-20s | 20200-26800 |
Standard Brick | 240*115*53mm | 28 | 15-17s | 47400-53700 |

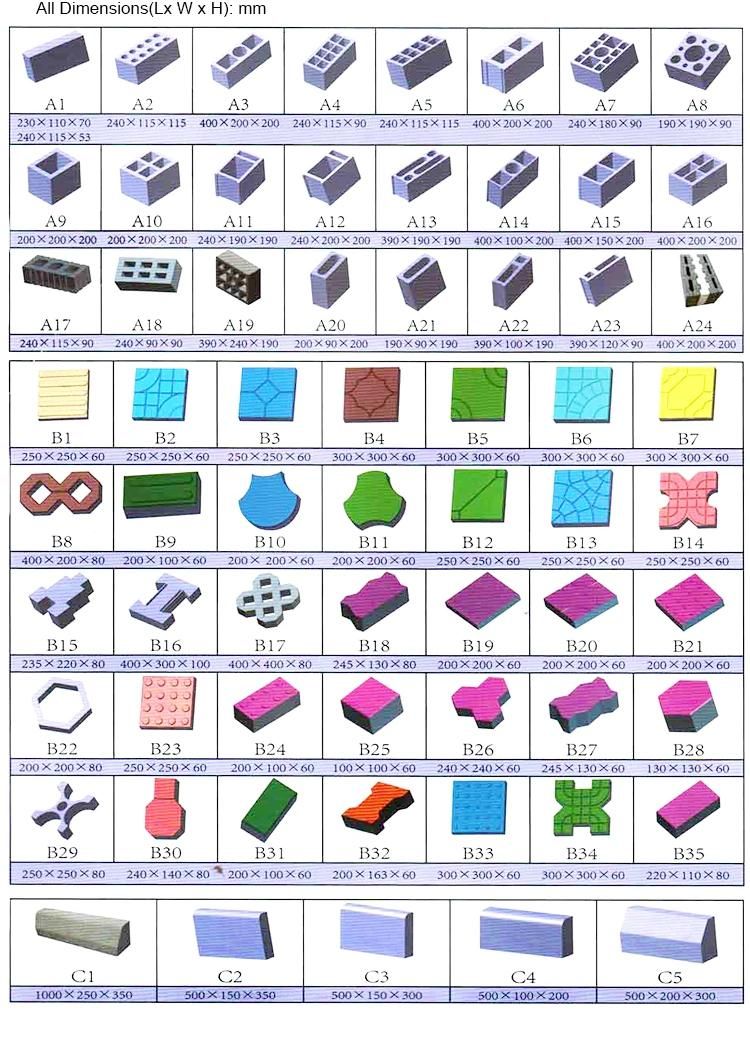

BRICK SAMPLES
PACKAGING & SHIPPING
OUR FACTORY
