Qmy10-15 Mobile Concrete Block Machine Hollow Block Making Machine

Shandong Shiyue Intelligent Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Product Name：My10-15 Hydraulic Movable Concrete Hollow Brick Ma
  • Shaping Cycle：10-15s

Base Info

  • Model NO.：QMY10-15
  • Vibration Force：32kn
  • Products：Cement,Concrete Hollow Blocks
  • Rated Pressure：16-20MPa
  • Color：According to Your Need
  • Worker：2-3 People
  • Weight：4500kgs
  • Raw Material：Concrete, Cement, Sand, Crushed Stones, Fly Ash, E
  • Pallets Size：No Need Pallet
  • Transport Package：According to Your Need
  • Specification：3250*2100*2300mm
  • Trademark：shiyang
  • Origin：Shandong Province China
  • HS Code：8474802000
  • Production Capacity：19000-34000PCS

Description

Overall Dimension3250*2100*2300mmWeight4.5THydraulic Pressure16-20MpaFrequency3500r/minCapacity10pcs/mold of 400*200*200mmMolding cycle10-15sOverall Power16.5kwVibration methodHydraulicDemolding methodHydraulicApplied ProductsConcrete hollow/solid blocksRaw MaterialConcrete, crushed stone, sand, cement, dust, fly ash, gravel, slag, and other material ItemSpecification size(mm)Quantity per moldCycle
moudingPer hour

Per day

(8hours)

Hollow block

400*200*200

(8 inches)

10pcs10-15s2400pcs19200pcsHollow block



400*150*200

(6 inches)

12pcs10-15s2880pcs23000pcsHollow block



400*100*200

(4 inches)

18pcs10-15s4300pcs34400pcs

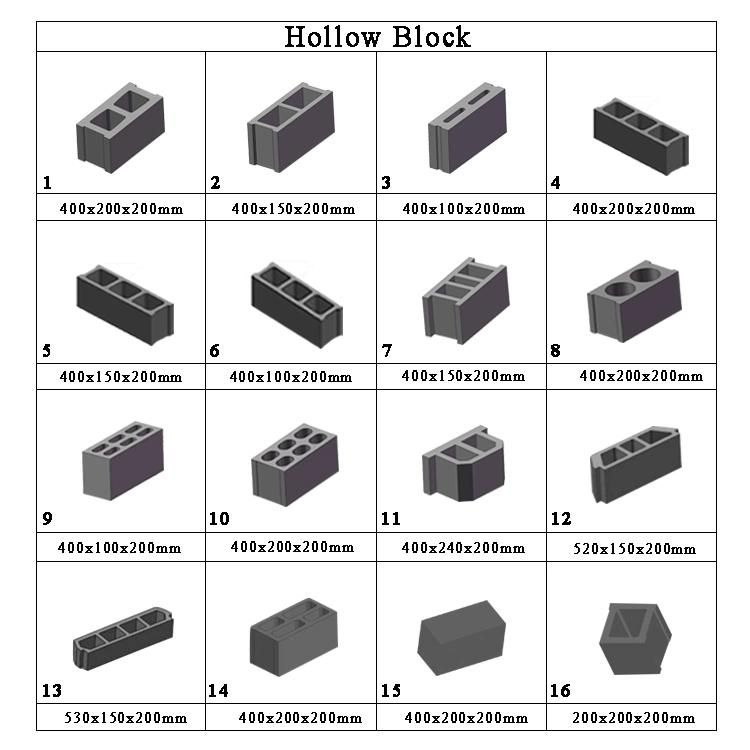

BRICK SAMPLES

Qmy10-15 Mobile Concrete Block Machine Hollow Block Making Machine

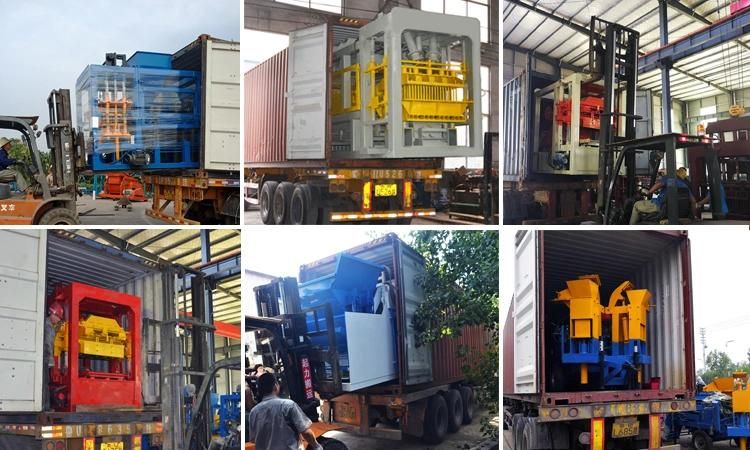

PACKAGING & SHIPPING

Qmy10-15 Mobile Concrete Block Machine Hollow Block Making Machine

Qmy10-15 Mobile Concrete Block Machine Hollow Block Making Machine

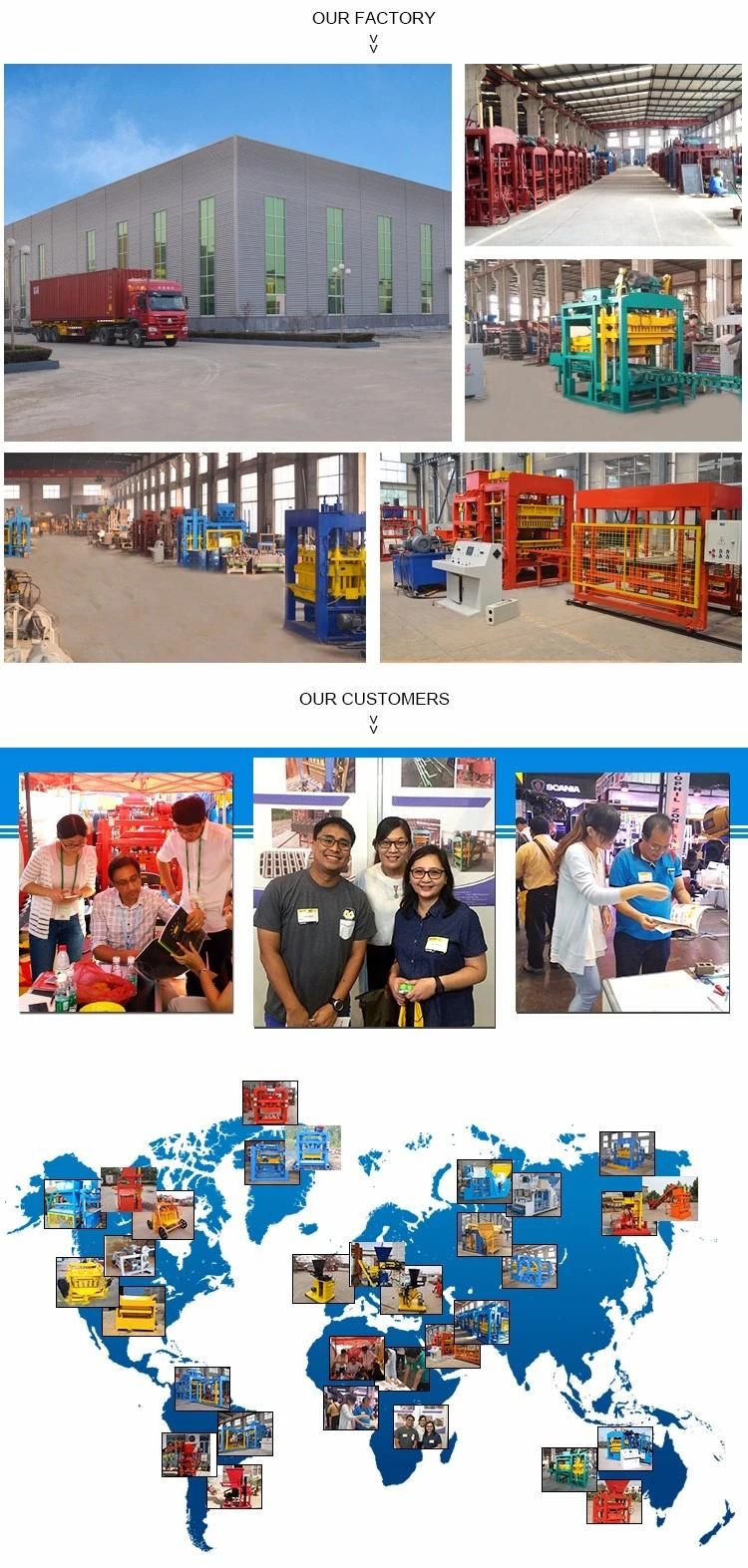

OUR FACTORY

Qmy10-15 Mobile Concrete Block Machine Hollow Block Making Machine
