Building Material Making Machinery

Home > Product > Brick Making Machine

Qt15-15 Automatic Concrete Block Making Machinery Auto Machine Line

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Vibration Molding
  • Machine Name：Block Making Machine
  • Machine Model：Qt15-15

Base Info

  • Model NO.：QT15-15
  • Cycle Time：15-25s
  • Pallet Size：1300X1100mm
  • Host Machine Power：78.5kw
  • Rated Pressure：31MPa
  • Host Machine Weight：17500kg
  • Vibration Form：Platform Vibration
  • Overall Dimension：11500X2350X2950mm
  • Factory Area：3000m2
  • Transport Package：Nude
  • Specification：New
  • Trademark：HONGGONG
  • Origin：China
  • HS Code：847480200
  • Production Capacity：50 Set Per Month

Description

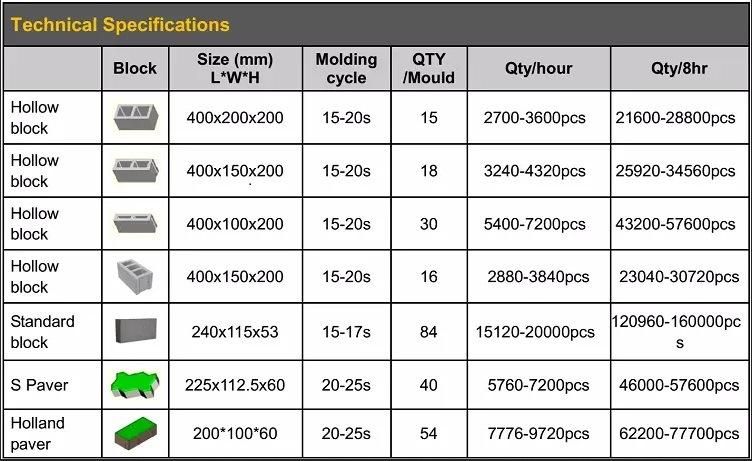

Main technical parameter

Qty/mould

15pcs/mould (hollow block 400*200*200mm)

Molding cycle

15s

Rated pressure

31MPa

Main vibration

Platform vibration

Vibration frequency

2800-4500 r/m

Power

78.5kw

Pallet size

1300x1100mm

Dimension

11500x2350x2950mm

Host machine weight

17500kg

Factory Area

3000m²
