• Model NO.：840
• Color：Can Be Choosed
• Control System：PLC
• Main Frame：300mm H
• Power：3kw
• MOQ：1set
• Automation：Full Automation
• Raw Material：Galvanized Steel Sheet
• Type：for Your Request
• Can Be Used：Building
• Price：Fob,CIF
• Transport Package：Container
• Specification：8800*1500*1600mm
• Trademark：kexinda
• Origin：Hebei
• HS Code：8455221000
• Production Capacity：30sets,Month

Basic Info.

Model NO. 840 Color Can Be Choosed Control System PLC Main Frame 300mm H Power 3kw MOQ 1set Automation Full Automation Raw Material Galvanized Steel Sheet Type for Your Request Can Be Used Building Price Fob/CIF Transport Package Container Specification 8800*1500*1600mm Trademark kexinda Origin Hebei HS Code 8455221000 Production Capacity 30sets/Month

Product Description

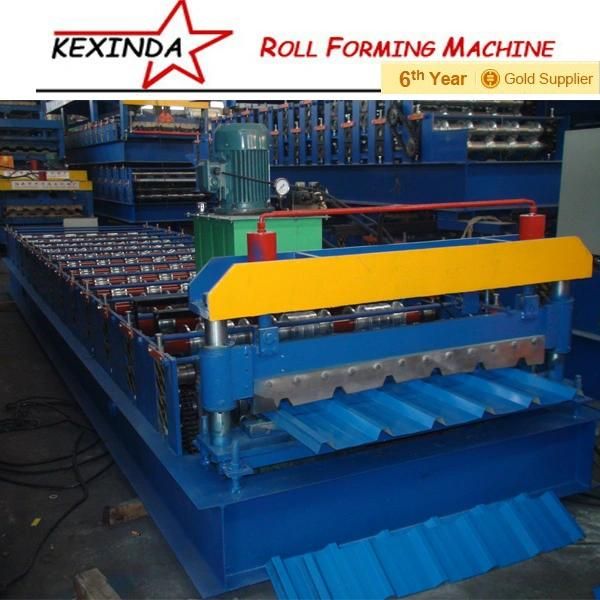

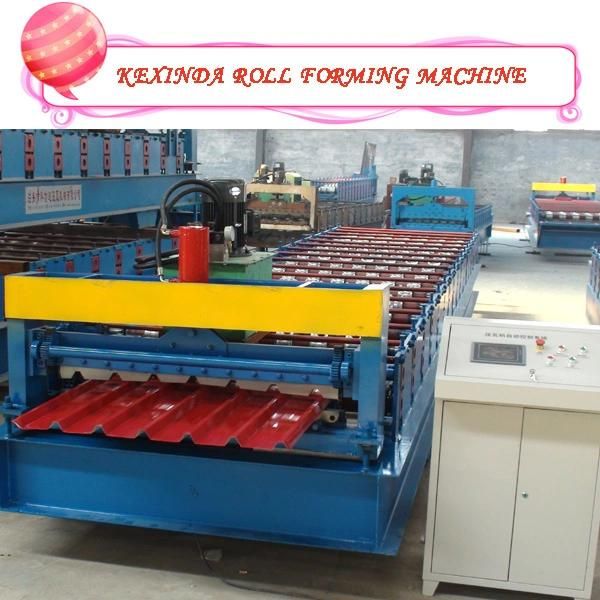

Model:840 roll froming machine

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Delta Inverter
Main Frame	300mm H-Beam
Main Power	4 kw
Pump Power	3 kw
Power Supply	380V, 3-Phase,60Hz
Forming Speed	8-12m/min
Roll Station	11 stands
Roller Diameter	80mm
Hydraulic Pressure	10-12MPa
Forming Size	840mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1000mm
Backboard Thickness	12mm
Chain Size	33mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	7200×1300×1500mm
Total Weight	4T

All technical parameters can be changed,according to user s need.

Technical parameter:

1.The material of shaft is 45# steel and φ80mm.

2.Frame using 350mm channels.

3.The chain and sprocket wheel by 1 inch.

4.The cycloid planetary reducer :4#5.5kw

5.Pass:16 passes

6.The perfect thickness of colored steel:0.3mm--0.8mm

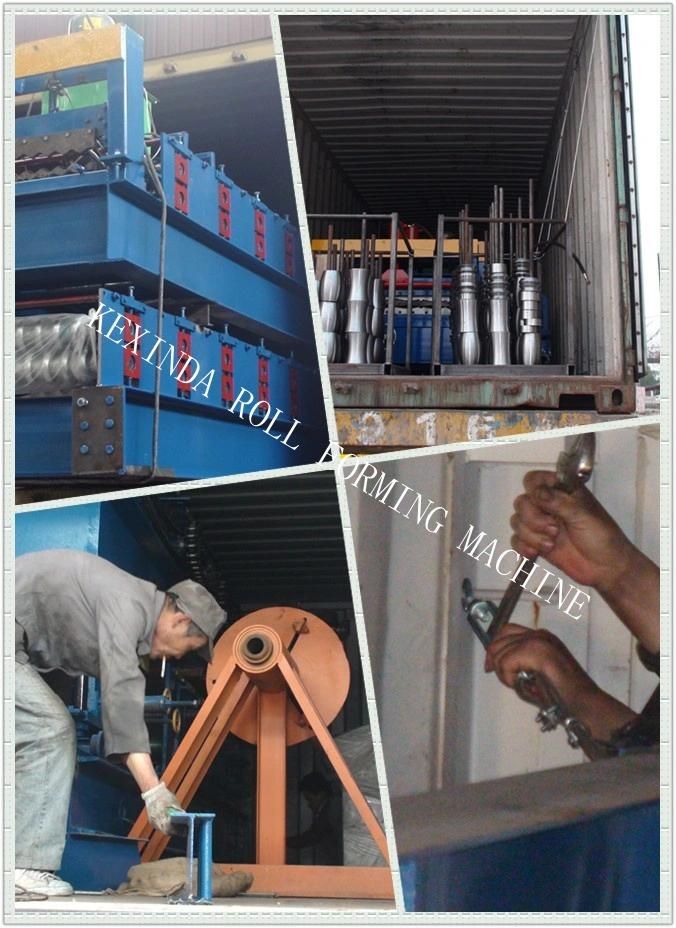

Packaging & Shipping



Company Information









 FAQ



1:How to play order:



Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK



2:How to visit our company:



Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.



Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.



If any questions,you can call me mobile phone at any times:0086-15613790178



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.



4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
