• Model NO.：750
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Application：750 Cold Metal Deck Panel Sheet Galvanized Steel F
• Device Color：Yellow or Blue
• Manipulation Page：Touch Screen
• Language：Chinese and English or According to Customer Requi
• Transport Package：on The Sea
• Specification：Dimension(L*W*H)(m): 14*1.5*1.5
• Trademark：LLZ
• Origin：China
• HS Code：84552210
• Production Capacity：500 Sets Per Year

Basic Info.

Model NO. 750 Certification CE, ISO Condition New Customized Customized Application 750 Cold Metal Deck Panel Sheet Galvanized Steel F Device Color Yellow or Blue Manipulation Page Touch Screen Language Chinese and English or According to Customer Requi Transport Package on The Sea Specification Dimension(L*W*H)(m): 14*1.5*1.5 Trademark LLZ Origin China HS Code 84552210 Production Capacity 500 Sets Per Year

Product Description

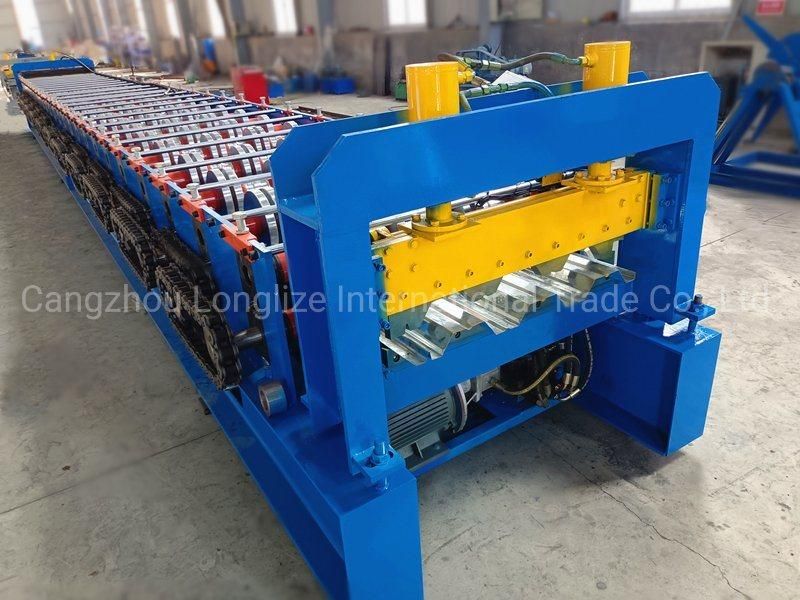

750 Galvanized Floor Decking Roll Forming Machine
Product Description

1	Coil Width	914mm/1000mm/1200mm /1250mm or according to your request
2	Forming thickness	0.6mm-1.5mm
3	Diameter of shaft	90mm/100mm(Reinforcement part)
4	Material of shaft	45#steel with tempering
5	Middle plate	18mm
6	Main frame	400H steel
7	Main power	2*11kw/2*15kw according to machine
8	Voltage/Power	3 Phase,380 Voltage,50Hz/as customer's request

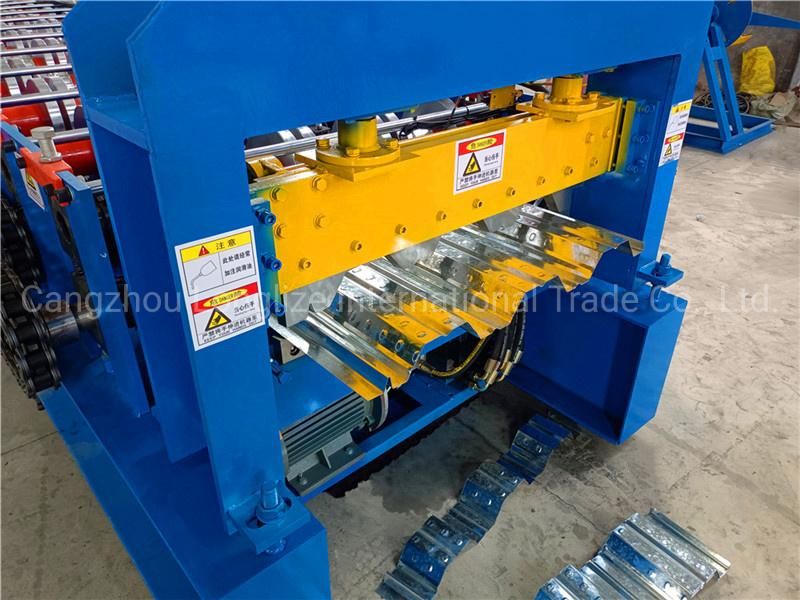

9	Cutting type	hydraulic stop to cut

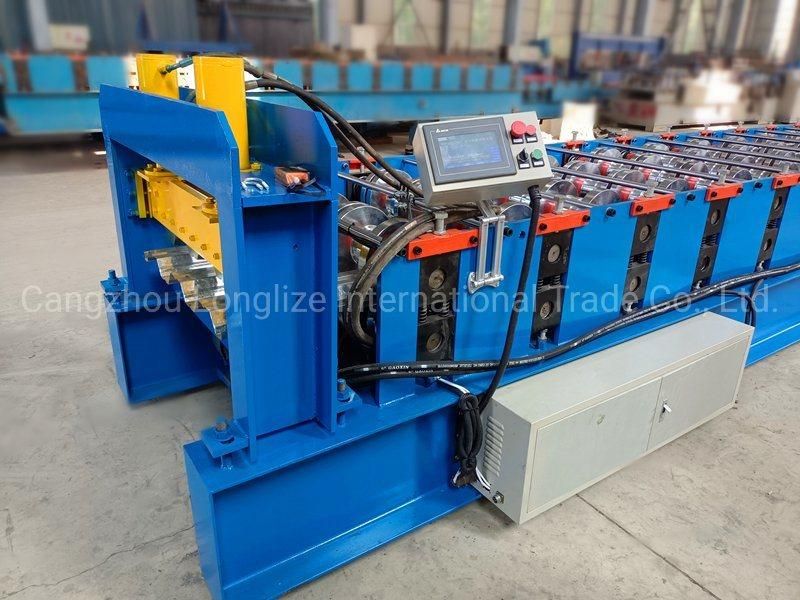

10	Control method	PLC
11	Brand of electrical parts	Delta
12	Length control	Encoder
13	Forming speed	8-12meters/min

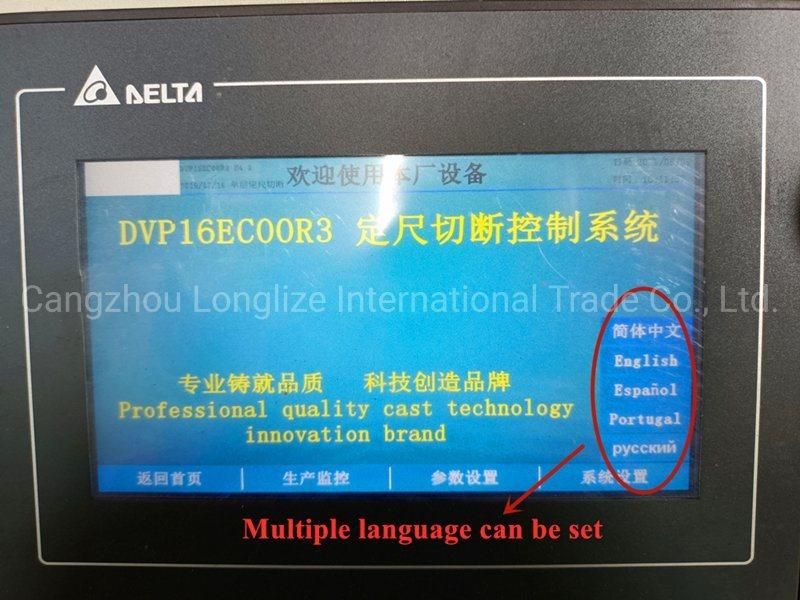

14	Operation	Touch Screen
15	Language	Chinese & English/as customer's request
16	Manual decoiler	8 tons
17	Dimensions(L*W*H)	about 14*1.6*1.4M
18	Weight	about 11 tons

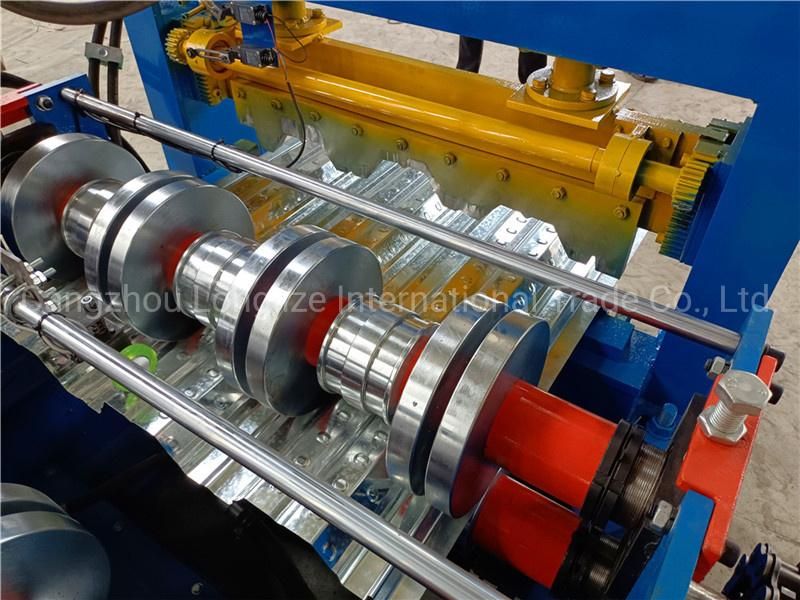

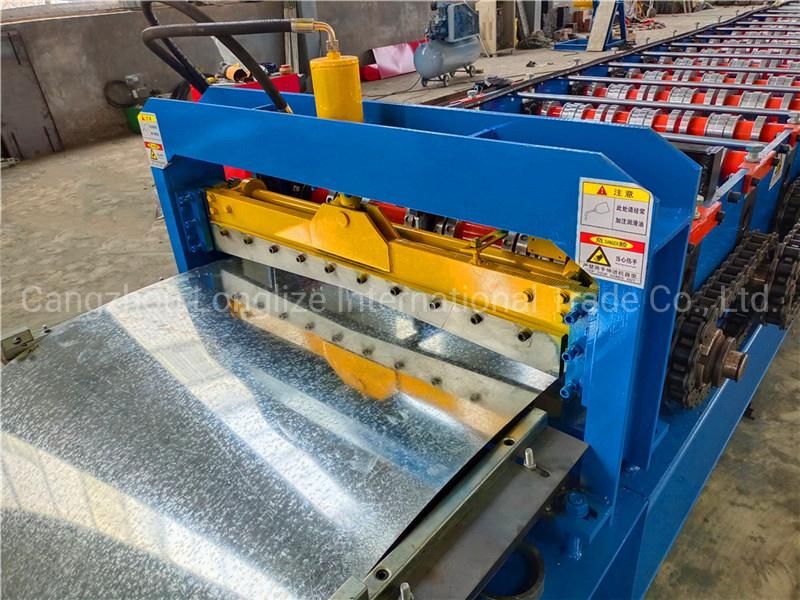

750 Cold Metal Deck Panel Sheet Galvanized Steel Floor Decking Roll Forming Machine--It adopts coiling steel sheet as the raw material, decoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels.
 Galvanized Floor Decking Roll Metal Forming Machine adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
750 Cold Metal Deck Panel Sheet Galvanized Steel Floor Decking Roll Forming Machine Standard Packing:
1)Steel wire fix the machine into the container, in case any damage when shaking on the sea.
2)The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
3)The received goods table put into carton box .
4)Manual decoiler naked package .
5)The spare parts will be packed into the carton box.
750 Cold Metal Deck Panel Sheet Galvanized Steel Floor Decking Roll Forming Machine Custom service requirements.
1)Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
2)Feeding material width should be confirmed before machine design .the width are changeable,

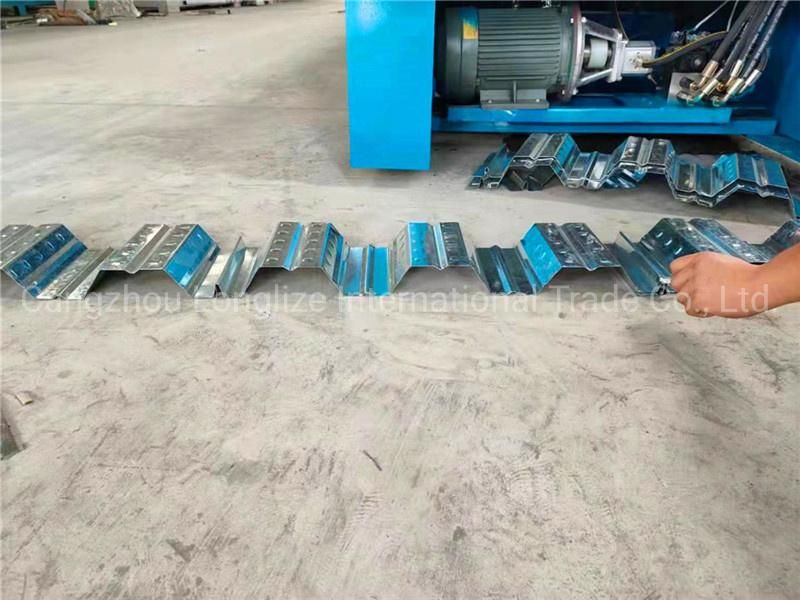

3)Both three and two waves are suitable for the line.we can design the machine based on buyer's profile drawing.
4)Material thickness normal range are 0.6-1.5mm.if you have any special request on material thickness,we should discuss in advance .
5)Cutting are provided as you want.
750 Cold Metal Deck Panel Sheet Galvanized Steel Floor Decking Roll Forming Machine Direction for use
1)Fill hydraulic oil in the pump.not too full,three quarters are ok.
2)Connect electric wires,use 5-10mm² support line and keep grounding.
3)Put all necessary parts on the right location.
4)Feed raw materil into the machine slowly,make it run smoothly then automatic.
5)Pay attention to final sheet collection,do not scretch it or hurts people.
