CNC Aluminum Window Door Profile Cutting Saw Machine
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Voltage：380V
- Model：Ljz2-CNC-500*4200(5000)
Base Info
- Model NO.：LJZ2-CNC-500×4200(5000)
- Input Voltage：380V 50Hz
- Input Power：6.0kw
- Air Pressure：0.5~0.8MPa
- Air Consumption：200L,Min
- Spindle Speed：3200r,Min
- Cutting Length：400~4200mm(400~5000mm)
- Cutting Width：10~130mm
- Cutting Height：10~300mm
- Cutting Angle：90 Deg; 45 Deg; 67.5 Deg;
- Transport Package：Plastic Film or Depends on Demands
- Specification：5500 * 1700 * 1600mm
- Trademark：Yuefeng
- Origin：Jinan Shandong, China
- HS Code：8477800000
- Production Capacity：15 Sets ,Month
Description
Basic Info.
Model NO. LJZ2-CNC-500×4200(5000) Input Voltage 380V 50Hz Input Power 6.0kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90 Deg; 45 Deg; 67.5 Deg; Transport Package Plastic Film or Depends on Demands Specification 5500 * 1700 * 1600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 15 Sets /MonthProduct Description

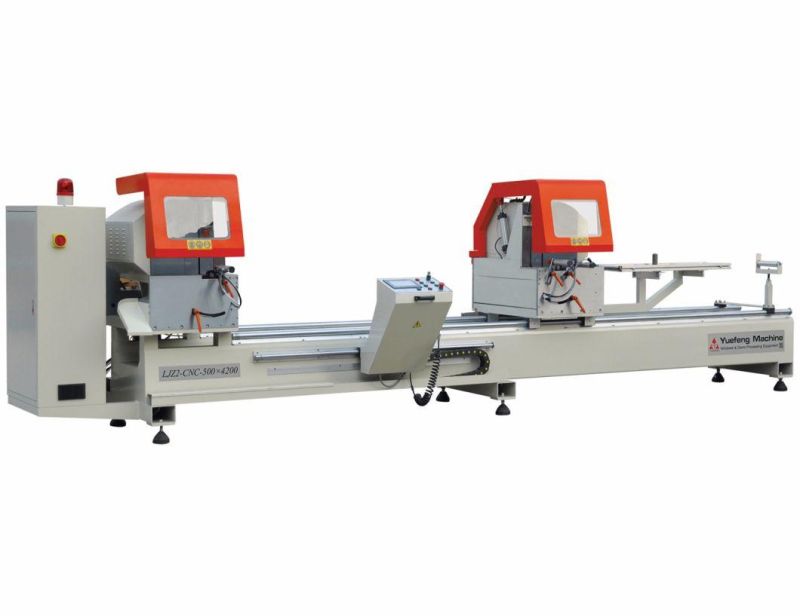

LJZ2-CNC-500×4200(5000) CNC Aluminum Window Door Profile Cutting Saw Machine
> Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.>Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum connectors.
>Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch, and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.
>Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
>Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.
>Automatic protecting guards result convenience and safety.
Technical Parameter:
| Model | LJZ2-CNC-500×4200(5000) |
| Input voltage | 380V 50Hz |
| Input power | 6.0Kw |
| Air pressure | 0.5~0.8MPa |
| Air consumption | 200L/min |
| Spindle speed | 3200r/min |
| Cutting length | 400~4200mm(400~5000mm) |
| Cutting width | 10~130mm |
| Cutting height | 10~300mm |
| Cutting angle | 90° 45° 67.5° |
| Saw feeding speed | 0~3m/min |
| Saw blade standard | φ500×4.4×φ30×Z120 |
| Overall dimension | 5500(6300)×1700×1600mm |
