• Model NO.：JYG-02
• Usage：Desiccant Filling for Insulating Glass Making
• Input Power：1kw
• Air Pressure：0.6MPa
• Desiccant Diameter：6-24mm
• Aluminum Frame Width：6-24mm
• Working Speed：5-8 Seconds
• Machine Dimension：1200*800*2900mm
• Transport Package：Standard
• Specification：JYG-02
• Trademark：Truepro
• Origin：China
• HS Code：846490
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. JYG-02 Usage Desiccant Filling for Insulating Glass Making Input Power 1kw Air Pressure 0.6MPa Desiccant Diameter 6-24mm Aluminum Frame Width 6-24mm Working Speed 5-8 Seconds Machine Dimension 1200*800*2900mm Transport Package Standard Specification JYG-02 Trademark Truepro Origin China HS Code 846490 Production Capacity 200 Sets/Year

Product Description

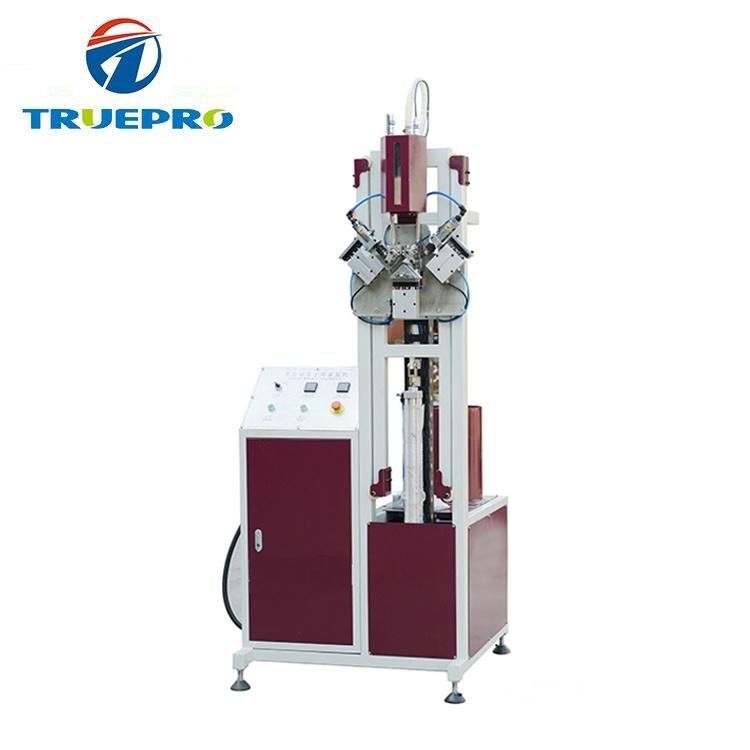

    Semi automatic molecular sieve filling machine for insulating glass processing


Machine feature:
1.Automatic desiccant filling machine is special equipment for filling molecular sieve into the aluminum spacer of the insulating glass;
2.PLC control system it is powerful and automatic flexible control position;
3.Adjustable filling height according to the spacer size;
4.Apply automatically desiccant feeding system.
Parameter:

Model	JYG-02
Power Supply	220V 50Hz
Total Power	1.0Kw
Work Pressure	0.6Mpa
Desiccant Diameter	0.5~0.8mm
Tilling Speed	5-8S(1mx1m 9A)
Spacer Speed	6~24mm
Outside Dimension	1200X800X2900mm
Weight(about)	260kgs

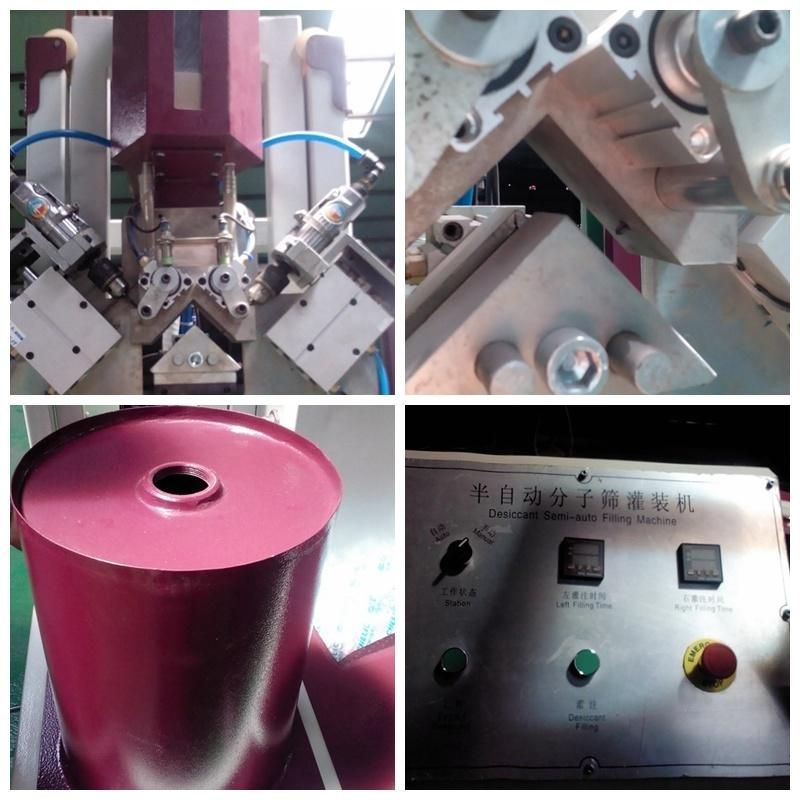

Machine details:




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

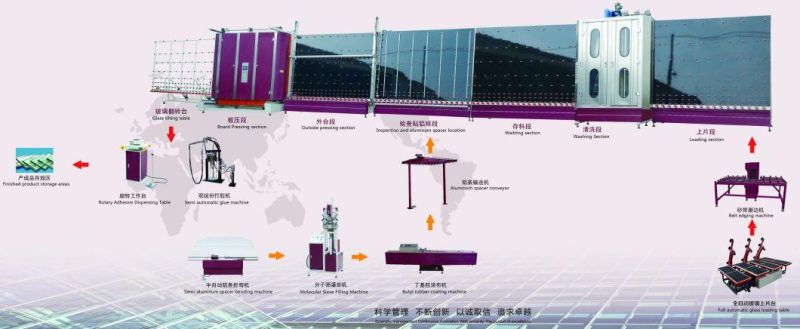

4. Insulating glass production line
