• Model NO.：JYW-2000
• Input Power：23kw
• Air Pressure：0.5-0.8MPa
• Max. Processing Glass Size：2000*2500mm
• Min. Processing Glass Size：280*450mm
• Working Direction：Right to Left or Left to Right
• Single Glass Thickness：3-18mm
• Transfer Speed：8-45m,Min
• Machine Dimension：21500*2400*3200mm
• Weight：6000kg
• Transport Package：Standard
• Specification：JYW-2000
• Trademark：Truepro
• Origin：China
• HS Code：846490
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. JYW-2000 Input Power 23kw Air Pressure 0.5-0.8MPa Max. Processing Glass Size 2000*2500mm Min. Processing Glass Size 280*450mm Working Direction Right to Left or Left to Right Single Glass Thickness 3-18mm Transfer Speed 8-45m/Min Machine Dimension 21500*2400*3200mm Weight 6000kg Transport Package Standard Specification JYW-2000 Trademark Truepro Origin China HS Code 846490 Production Capacity 200 Sets/Year

Product Description

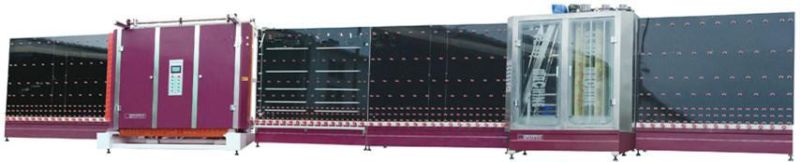

    China vertical flat-pressing insulating glass production line machine

Machine feature:
-Automatically distinguish the coating side of coated glass and low-E glass.
-Static state load glass when adding glass material to ensure safety in production.
-The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long
useful life. Adopt waterproof bearing without oil lubricant.
-Can clean 3~25mm thickness glass, with wide using range.
-It can process same edge double insulating glass with high efficiency.
-Adopts the world famous brand low-voltage electrics, sensor and PLC, etc.
- PLC control system with touch screen interface, simple operation and high automatic.
-Treat the surface of plate guard with baking paint, powder coated. Appearance is beautiful and durable.
-The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.
Parameter:

Model	JYW-2000
Input Voltage	380V 50Hz
Total Power	23.0KW
Cutting Glass Size	2000×2500mm
Min Glass Size	280×450mm
Glass Thickness	3~18mm
Working Speed	8~45m/min
Total Weight	5000kg
Size of Line	18500×2400×3200mm

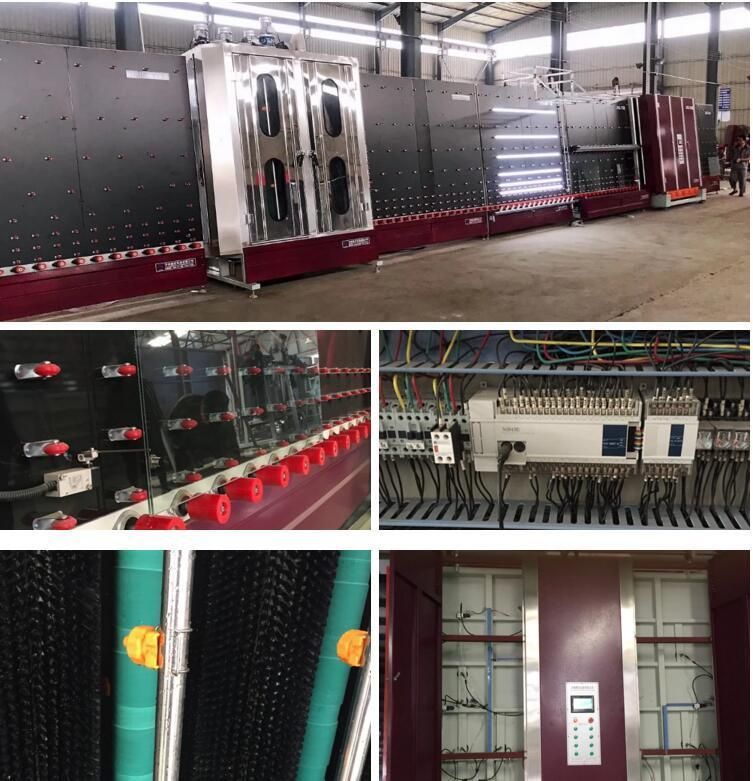

Machine details:




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

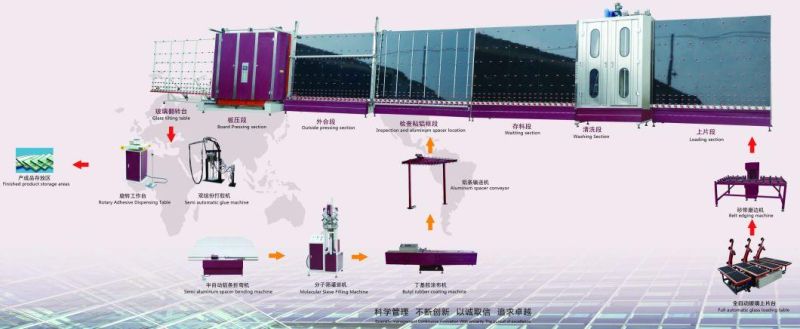

4. Insulating glass production line
