• Model NO.：CLY6-50
• Punching Pressure：50kn
• Oil Pump Motor Power：2.2kw
• Oil Cylinder Capacity：50L
• Interval of Equipment of Mould：6
• Die Size：250*200*215mm
• Max. Punching Distance：30mm
• Rated Oil Pump Pressure：16MPa
• Overall Dimension：900*950*1420mm
• Transport Package：Wooden
• Specification：CLY6-50
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLY6-50 Punching Pressure 50kn Oil Pump Motor Power 2.2kw Oil Cylinder Capacity 50L Interval of Equipment of Mould 6 Die Size 250*200*215mm Max. Punching Distance 30mm Rated Oil Pump Pressure 16MPa Overall Dimension 900*950*1420mm Transport Package Wooden Specification CLY6-50 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

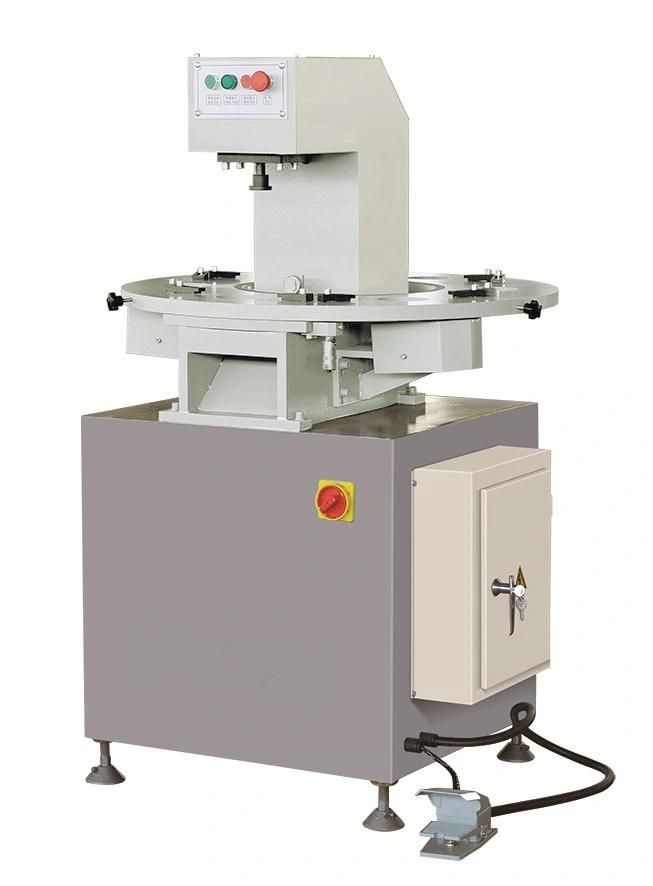

          Hydraulic hole punching machine for aluminum profiles

Machine feature:
1.Used for different kinds of holes punching.
2.Rotating work table can be installed with six sets of dies.
3.Single position die can be designed and installed easily.
4.Hydraulic drive,great power for special kinds of holes.
5.Openside design,easy operation.
Parameter:

Model	CLYA6-50
Power Supply	380V 50HZ
2.2Input Power	1.5Kw
Rated pressure	16MPa
Capability of oil box	20L
Press nominal pressure	50KN
Closing height	185mm
Punching travel	30mm
Die size	250*200*215mm
Overall Dimension	900*950*1420mm
Weight	About 500Kg

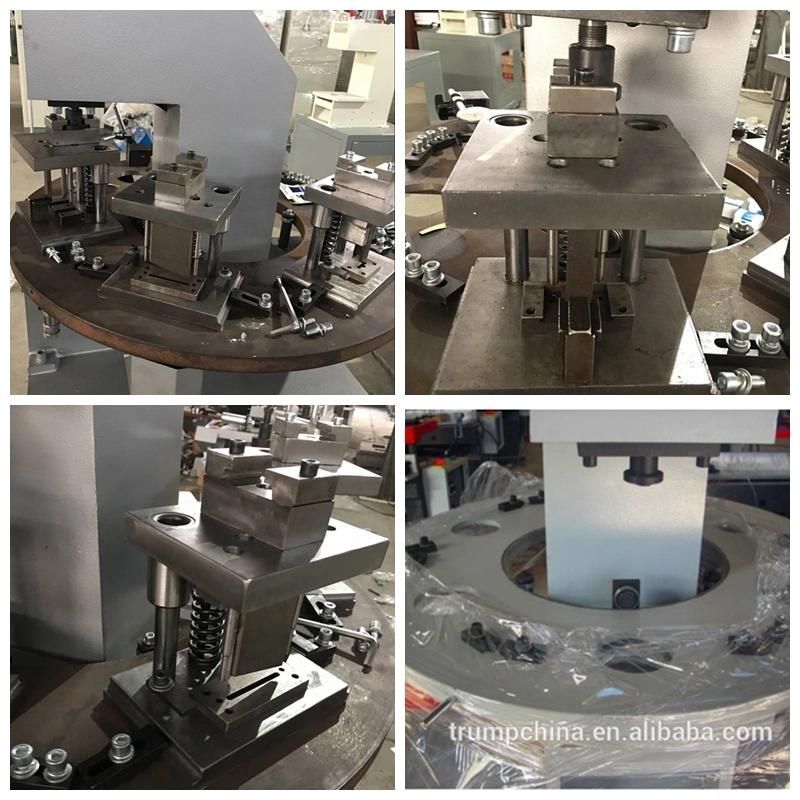

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
