• Model NO.：CLJZD-CNC-6000
• Cutting Motor Power：3*2.2kw
• Feeding Motor Power：0.75kw
• Discharge Motor Power：0.75kw
• Input Power：220V,380V,415V 50Hz
• Air Pressure：0.5~0.8MPa
• Blade Specification：500*30*4.4 Z=120
• Cutting Length：30-120mm
• Cutting Width：30-120mm
• Raw Materials：400~5800 mm
• Cutting Angle Deviation：5′
• Cutting Angle：90 45 Degree
• Length Deviation：0.2mm
• Overall Dimension：16000*2600*2000mm
• Weight：About 4000kg
• Transport Package：Wooden Box
• Specification：CNC aluminum double head cutting saw
• Trademark：TRUEPRO
• Origin：China
• HS Code：8461500090
• Production Capacity：500sets,Year

Cutting motor power3*2.2kWFeeding motor power0.75kWDischarge motor power0.75kWInput power220V/380V/415V 50HzOperation air pressure0.5-0.8MPaBlade specification500*30*4.4*120TCutting length30~120mmCutting width30~120mmRaw materials400~5800 mmCutting angle deviation±5′Length deviation±0.2mmRepeat locating length deviation±0.05mmContour dimension16000*2600*2000mmWeightabout 4000kg



Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

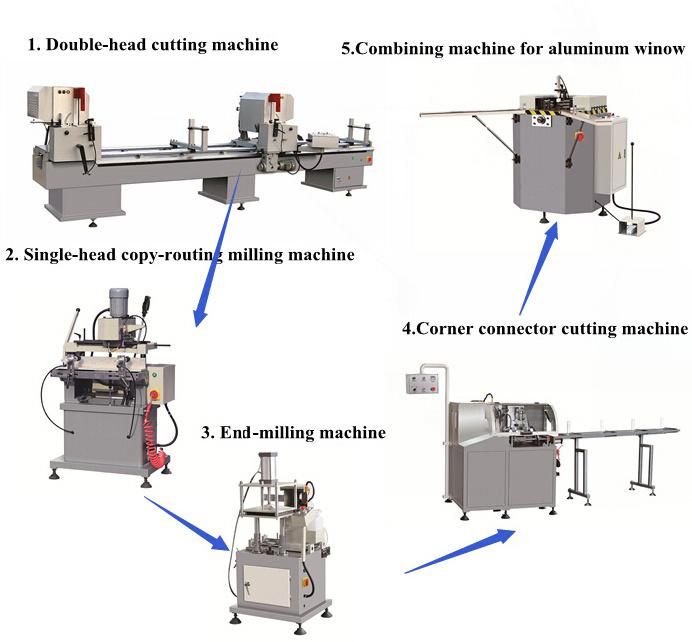

4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
