CNC Aluminum Profile Two Side Cutting Saw Window Making Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：CNC
  • Voltage：According to Your Requirement
  • Input Power：6.0kw
  • Air Pressure：0.5~0.8MPa

Base Info

  • Model NO.：LJZ2-CNC-500x4200
  • Air Consumption：200L,Min
  • Spindle Speed：3200r,Min
  • Cutting Length：400~4200mm(400~5000mm)
  • Cutting Width：10~130mm
  • Cutting Height：10~300mm
  • Cutting Angle：90° 45° 67.5°
  • Saw Feeding Speed：0~3m,Min
  • Saw Blade Standard：φ500×4.4×φ30×z120
  • Overall Dimension：5500(6300)×1700×1600mm
  • Transport Package：Plastic Cover or Plywood Cases
  • Trademark：YUEFENG
  • Origin：Shandong
  • HS Code：847780
  • Production Capacity：100sets,Month

Description

Basic Info.

Model NO. LJZ2-CNC-500x4200 Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/Month

Product Description

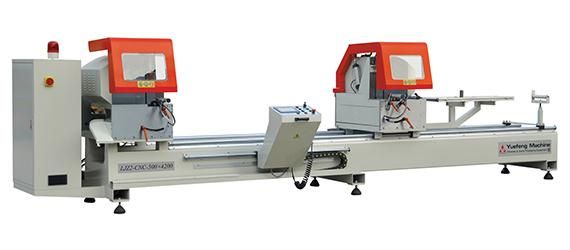

CNC Aluminum Profile Two Side Cutting Saw Window Making Machine

CNC Aluminum Profile Two Side Cutting Saw Window Making Machine
CNC Aluminum Profile Two Side Cutting Saw Window Making Machine

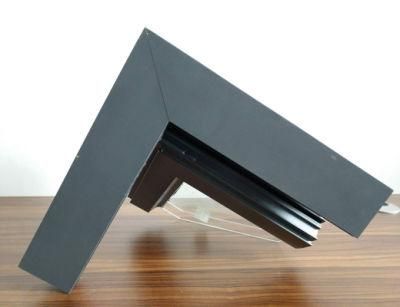

 1. Used for cutting profiles such as aluminum profile and curtain wall, two heads cutting angle 90°/45°/67.5°(22.5°) are available.
2. Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum connectors.
3. Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver, Photo electrical switch, and Photo electrical cells etc. Complete Japan CNC system results high accuracy and smooth working.
4. Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
5. Saw blade feed system adopts imported linear guide kinematic pair results high accuracy.
6. Automatic protecting guards result convenience and safety.
ModelLJZ2-CNC-500×4200(5000)
Input voltage380V 50Hz
Input power6.0Kw
Air pressure0.5~0.8MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length400~4200mm(400~5000mm)
Cutting width10~130mm
Cutting height10~300mm
Cutting angle90° 45° 67.5°
Saw feeding speed0~3m/min
Saw blade standardφ500×4.4×φ30×Z120
Overall dimension5500(6300)×1700×1600mm
