• Model NO.：CLMB-150
• Rating Power：2.2kw
• Rated Pressure：16MPa
• Air Consumption Pressure：0.5~0.8MPa
• General Pressure of Corner Combining：48kn
• Capability of Oil Box：20L
• Corner Crimping Casing Movement Journey：0~85mm
• Profile Processing Width：90mm
• The Adjustable Range of The Main Locatio：54mm
• Contour Dimension：1300*1200*1300mm
• Weight：About 400kg
• Seller：Wendy
• Transport Package：Wooden Box
• Specification：hydraulic aluminum corner crimping machine
• Trademark：TRUEPRO
• Origin：China
• HS Code：8479819000
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLMB-150 Rating Power 2.2kw Rated Pressure 16MPa Air Consumption Pressure 0.5~0.8MPa General Pressure of Corner Combining 48kn Capability of Oil Box 20L Corner Crimping Casing Movement Journey 0~85mm Profile Processing Width 90mm The Adjustable Range of The Main Locatio 54mm Contour Dimension 1300*1200*1300mm Weight About 400kg Seller Wendy Transport Package Wooden Box Specification hydraulic aluminum corner crimping machine Trademark TRUEPRO Origin China HS Code 8479819000 Production Capacity 500sets/Year

Product Description

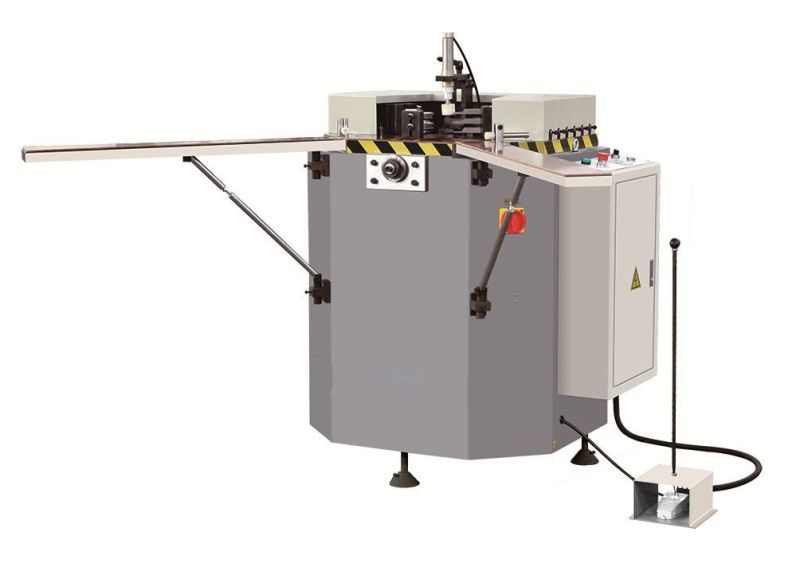

Aluminum Window Door Corner Crimping Machines

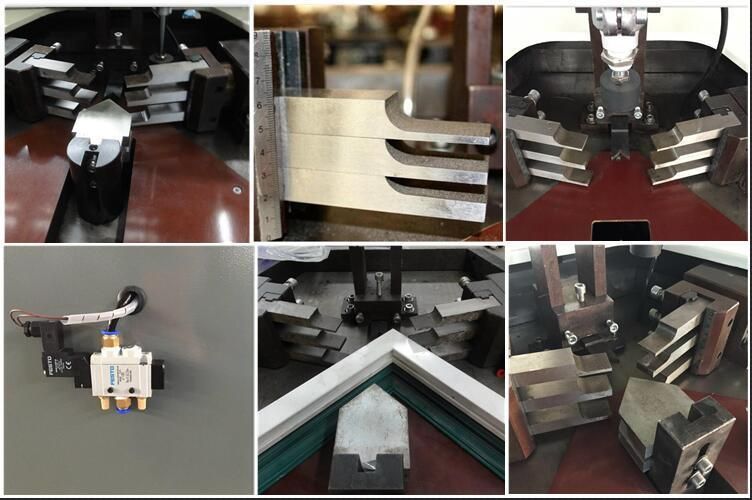

Equipment Features:

1.The frame is special jointed by steel with high quality and then does special process.

2.Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving,
   which aviod the corner deform and enchance the corner connection efficiently.

3.Synchro feeding structure make the adjustment very easy.

4.Convenient operation and less error in processing.

5.Distance of tool knife adjustable,as the screw thread connection,easy working for tools.

Technical parameter:

Brand	TRUEPRO
Model	CLMB-150
Power Supply	380V/50HZ
Input Power	2.2KW
Air Pressure	0.5~0.8MPa
General pressure of corner combining	48KN
Capability of oil box	20L
Corner crimping casing movement journey	85mm
Profile width	90mm
The adjustable range of the main location block	54mm
Overall Dimension	1300*1200*1300mm
Weight	About 400Kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

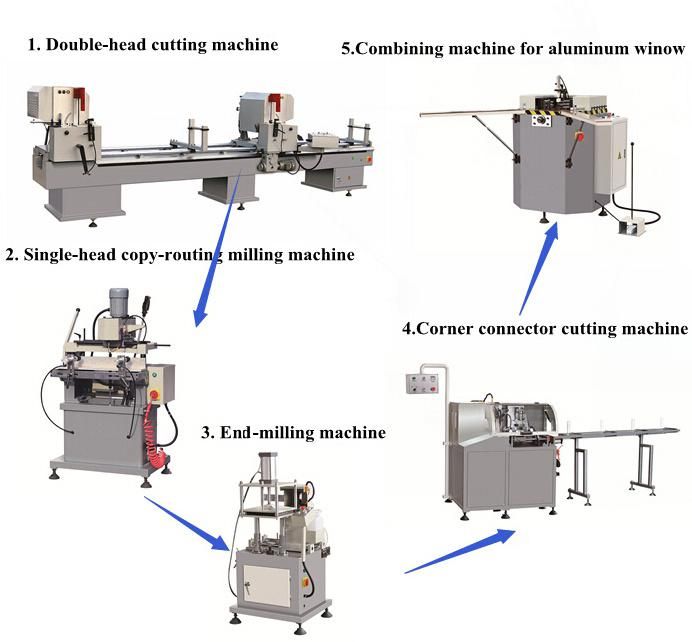

4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
