• Model NO.：CLMG-150
• Rating Power：2.2kw
• Rated Pressure：16MPa
• Machine Dimension：1300X1200X1300mm
• Weight：500kg
• Power Supply：380V,50Hz
• General Pressure of Corner Combing：48kn
• Capability of Oil Box：20L
• Profile Processing Width：90mm
• Package：Wooden Cases
• Color：Gray
• Transport Package：Wooden
• Specification：CLMG-150
• Trademark：truetec
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLMG-150 Rating Power 2.2kw Rated Pressure 16MPa Machine Dimension 1300X1200X1300mm Weight 500kg Power Supply 380V/50Hz General Pressure of Corner Combing 48kn Capability of Oil Box 20L Profile Processing Width 90mm Package Wooden Cases Color Gray Transport Package Wooden Specification CLMG-150 Trademark truetec Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

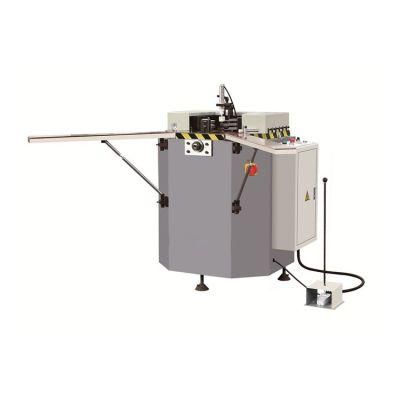

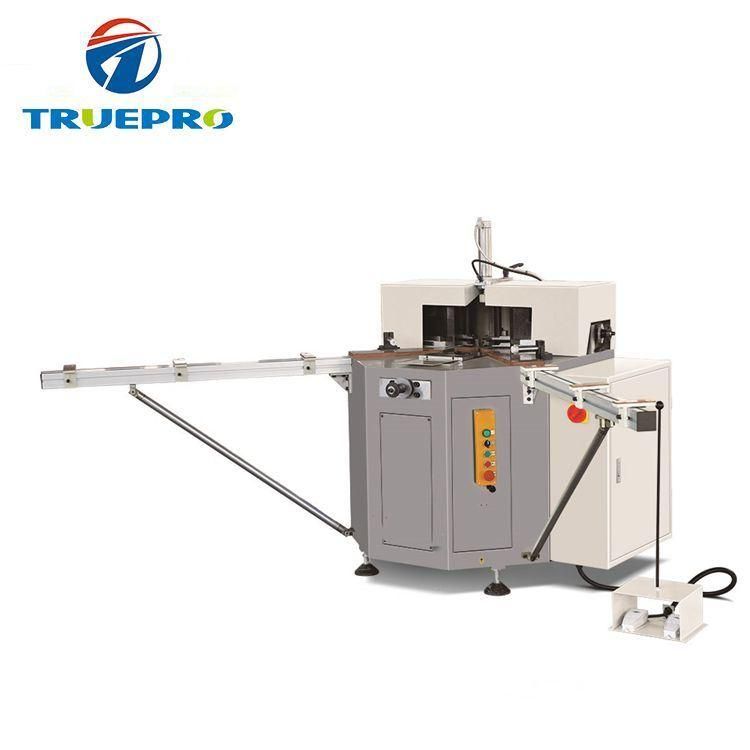

Corner Crimping Machine window and door machinery



Machine feature:
1.Adopts mechanical linkage structure, realizing completely synchronous corner crimping.
2. Inner corner location device adopt adjustable locating device. It is suitable for various sections and sizes.
3. It can be configured with double-edge combining cutters, which strengthens the corner combining.
4. PLC control, stable and reliable.
Parameter:

Model	CLMG-150
Power Supply	380V/50HZ
Rating Power	2.2KW
Air Consumption Pressure	0.6~0.8MPa
General pressure of corner combining	40KN
Capability of oil box	20L
Corner crimping casing movement journey	0-85mm
Profile Processing Width	90mm
The adjustable range of the main location block	54mm
Overall Dimension	1300x1200x1300mm
Weight	about 500kg

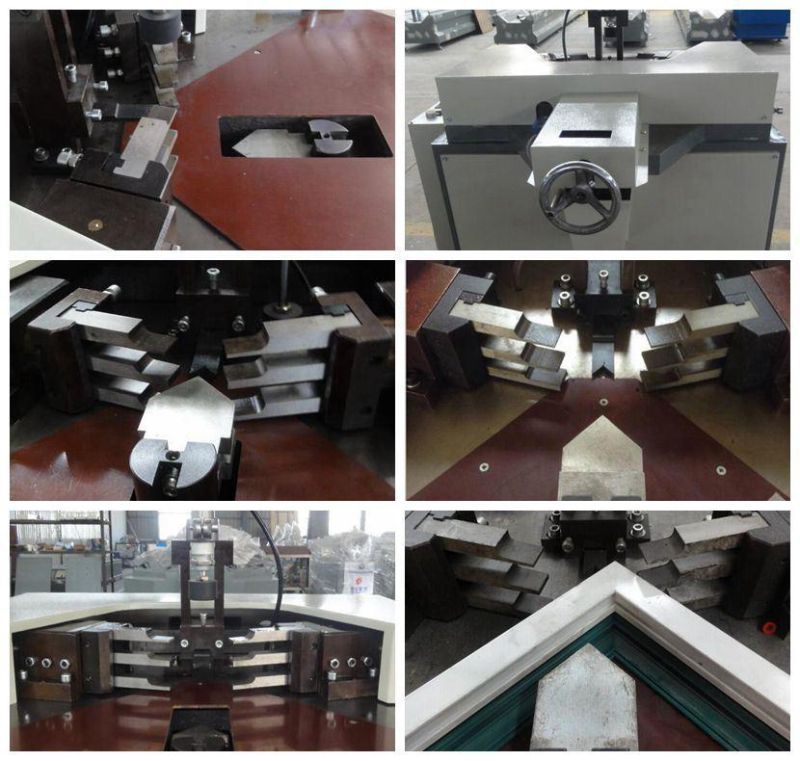

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
