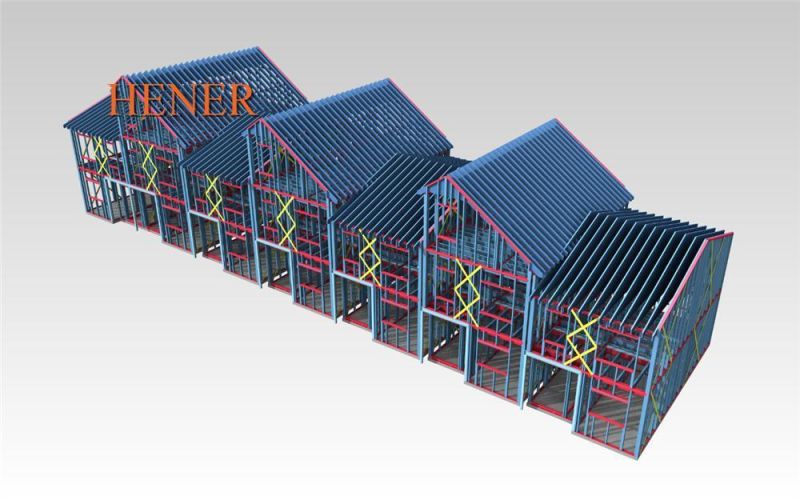

• Usage：Light Gauge Steel Framing Building
• Transmission Method：Gearbox Drive
• Total Power：15kw
• Number of Rollers：with 8 Groups and 4 Groups′ Correctional Rollers
• Power of Main Motor：7.5 Kw
• Material of Rollers：Cr12 with Heat Treatment
• Material of Shaft：40 Cr with Vacuum Heat Treatment
• Material of Cutter：Cr12MOV
• Productivity of Machine：50m,Minute with out Punching, 0.5-0.6 Tons,Hour
• Transport Package：in Nude, with Waterproof Cloth and Stow-Wood
• Specification：4000mm*800mm*1800mm
• Origin：China
• HS Code：84552210
• Production Capacity：30sets,Month

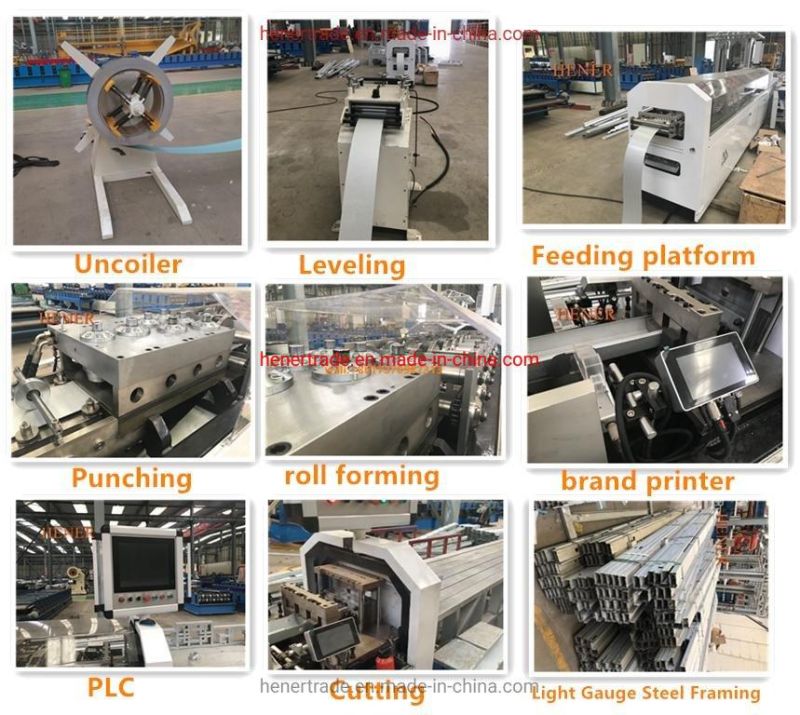

Decoilermax. weight capacity3 tons inner diameter450-530mm out diameter1300 mm typeelectric decoiler running methodautomaticRoll forming partweightabout 3 tons size4*0.8*1.8 total power15kw number of rollerswith 8 groups and 4 groups' correctional rollers transmission methodgear and chain brand of main motorInvet powerof main motor7.5 kw material of rollersCr12 with heat treatment material of shaft40 Cr with vacuum heat treatment material of cutterCr12mov productivity of machine50m/minute with out punching, 0.5-0.6 tons/hour  tolerance of punching hole+/- 3mm
length distance:+/-0.5mm
straightness accuracy: 0.3mm brand of inject printerSOJET double head printer highlightsome parts of the machine we make innovation to make make use more long time and more strongerControl system Brand of PLCDelta Brand of speed controllerDelta design softwareVertex BD task softwareSelf development programHydraulic systempower5.5kw oil tank80L brand of solenoid valveHUADEReceiving tablesize4 meters longAfter-sale serviceswarrantyone year training items in China freelyoperation training and finished products installation training machine maintenanceimmediate feedback and use real-time communication to solve problems and engineer avaliable to overseas






Product packaging


Certification

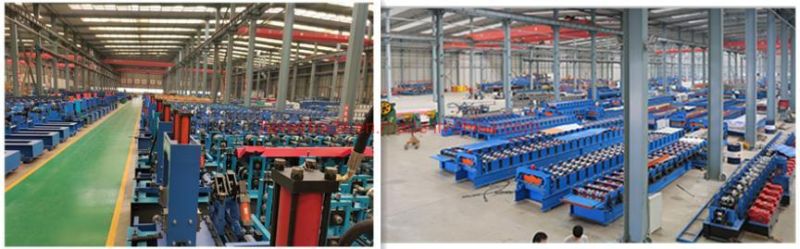

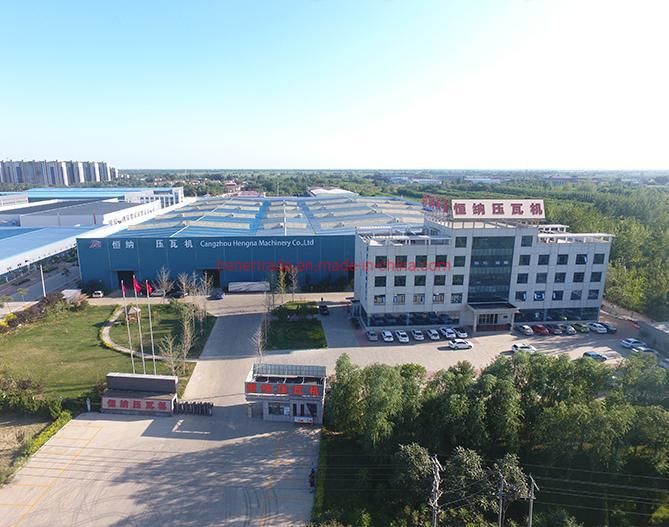

Company Profile

FAQ1. Does your company can customized my needed profile? Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile
drawing and we can give you our professional machine design solution.2. If i don't have profile drawing, but i want to buy one machine, can you help me? Yes sir/ Madam. If you don't have profile drawings, the solutions have:2.1 : Provide me with your profiles' pictures ;2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related
profile drawings.2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.3. What your company advantages? Yes sir/Madam. Our advantages have :3.1: We are a 12 years big factory. We have abundant machine designing and making experience. We can give you the best
machine solution.3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine
orders' making and guarantee the delivery.3.3 : We have 10 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a
pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about
the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the
most suitable machine for you.3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you. 4. Will i receive a good machine ? Same with my wanted ? Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again
before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received
is a good machine. Because after you satisfied with the machine, and then you pay balance. 5. What is the machine minimum quantity? One machine is okay. 6. What is your payment terms? 6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.6.2 : We accept 100% L/C at sight6.3: We accept Western Union payments. 6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
