Color Steel Stone Coated Roof Tile Making Machinery

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Glazed Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Floor
  • Transmission Method：Machinery

Base Info

  • Feeding Material Width：1220mm or Customized
  • Feeding Thickness：0.3-0.8mm
  • Main Motor Power：About 100kw
  • Machine Color：as Customer Need
  • Transport Package：Main Machine with Simple Plastic Film.
  • Specification：size: about 68.8*1.65*1.75m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

Description

NO. 1 Auto bottom glue spraying sectionAppearance size4000*1450*2000mmDriving section3KW Excitation motor or frequency speed regulation  (AS per   customers' requirements )Automatic pressure spray tank1 set ;  Capability: 200kg ;  Range: 0.6~1MpaAutomatic glue machine motorServo motor ;  Power: 750w ;  PLCAutomatic spray gun4 set (spare parts)Dust collecting fan1 set ;  Power: 200wDamp proof lamp1 pc ;  Power: 100wConveying deviceChain reciprocatingAir compressor1 set ;  Power: 7.5kwDust control of axial flow fan1 set ;  Power: 200wAgitator1 set ;  Power: 1.5kw NO. 2 Auto stone coated sectionAppearance size3500*1450*1500mmFrameworkSteel weldingConveying deviceChain reciprocatingAutomatic sand hopper1 set ;  Capability: 200kgBucket lift1 setManual sandblast gun4 sets NO. 3 The first time drying sectionAppearance size25000*1450*1200mmFrameworkSteel weldingFrame type thermal insulation wall1.2mm cold steel with Rock woolAutomatic temperature controller4 sets ;   Range: 0°~160°Infrared heating tube30pcs ;  Power: 30kwConveying deviceChain reciprocatingAir cooling device1 set ;  Power: 200w NO. 4 Auto face glue spraying sectionAppearance size3000*1450*2000mmFrameworkSteel weldingDamp proof lamp1 pc ;  Power:100wAutomatic pressure spray tank1 set ;  Capability: 200kg ;  Range: 0.6~1MpaConveying deviceChain reciprocatingAutomatic spray gun4 sets (spare parts)Manual patch glue gun4 setsDust control of axial flow fan1 set ;  Power: 200wAutomatic glue machine motorServo motor ;   Power: 750w NO. 5 The second time drying sectionAppearance size30000*1450*1200mmFrameworkSteel weldingFrame type thermal insulation wall1.2mm cold steel with Rock woolAutomatic temperature controller4 sets ;  Range: 0°~160°Infrared heating tube30pcs ;  Power: 30kwConveying deviceChain reciprocatingAir cooling device1 set ;  Power: 200w

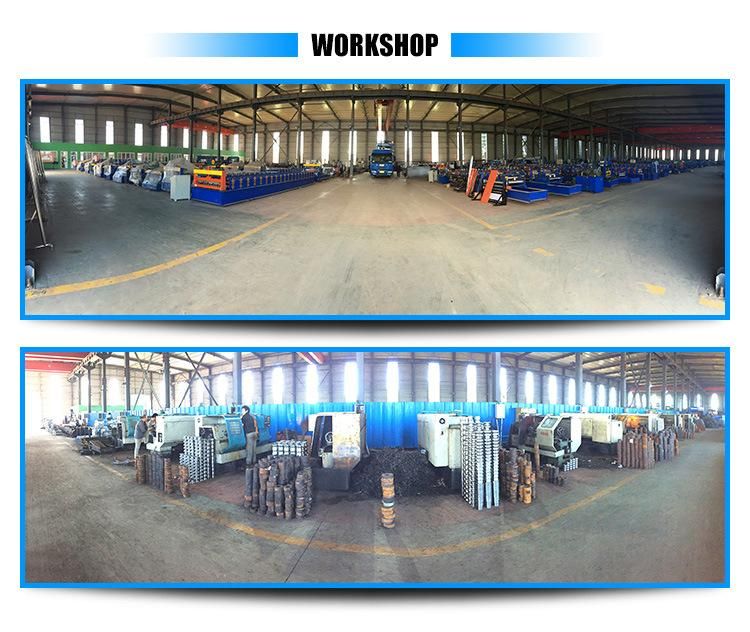

Our company information:
