Galvanized Sheet Metal T Grid Ceiling Channel Roll Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：PLC Computer Control
  • Automatic Grade：Automatic

Base Info

  • Capicity of Decoiler：5000kgs
  • Main Motor Type：Three-Phase Asynchronous
  • Motor Power：3kw
  • Thickness of Raw Material：0.8-1.2mm
  • Processing Precision ：Withint1.0mm
  • Diameter of Main Shaft：42mm
  • Roller Stations：12
  • Name：Sgalvanized Sheet Ceiling T Grid L Wall Channel
  • Weight of Machine：About 2.0 Tons
  • Processing Speed：35-55m,Min
  • Transport Package：Main Machine with Film by Container Shipping.
  • Specification：size: about 4.8*1.0*1.3m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

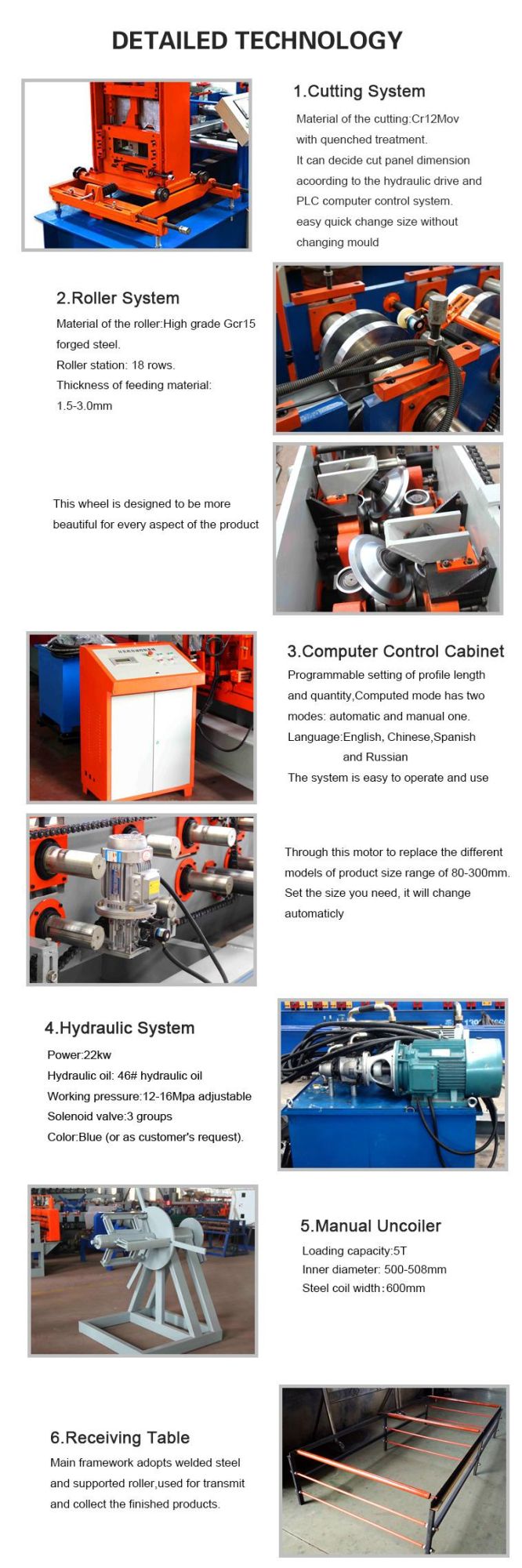

Description

Main parameters of Galvanized sheet metal T grid ceiling channel roll forming machine1Suitable to processsteel2Width of the feeding materialMax. 100mm3Roller station12 rows4Thickness of feeding material0.8-1.2mm5Productivity15-45m/min6Rollers' material45# steel7Diameter of shaft42mm8WeightAbout 2.0T9Size4800*1000*1300mm10Voltage380V  50HZ  3phases11Main motor power5.5 kw12Hydraulic cutting power3 kw

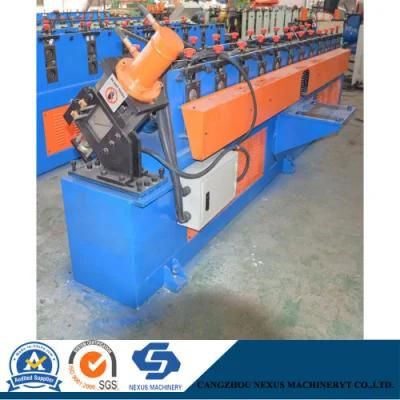

Galvanized Sheet Metal T Grid Ceiling Channel Roll Forming Machine


If you need any type of roll forming machine, please contact me at any time:
