• Model NO.：NM1284
• Automatic Grade：Automatic

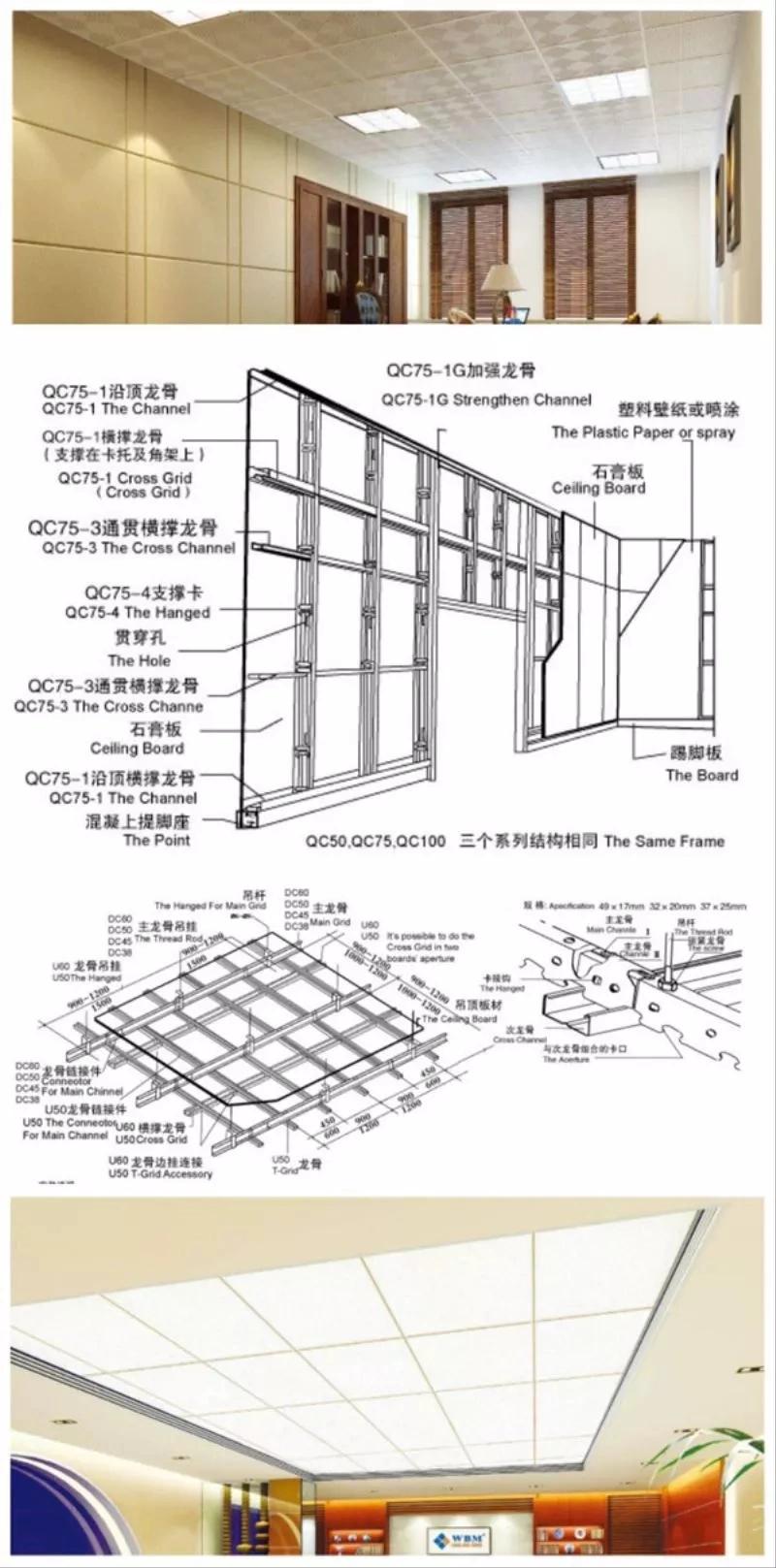

• Product Name：Dry Wall Profile Stud High Speed Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Diameter of Shaft：56mm
• Forming Speed：15-25m,Min
• Package：One Full Set of 20 Feet Container
• Transport Package：Control Box and Easy Damaged Parts: Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10 Sets,Month

NO

Name

Unit

Qty

1

Man-made decoiler

set

2

• Max width 300mm
• Inner diameter -460-510mm
• Max loading capacity 1000kg
• Manual operating type manual expansion to tighten the coil
• Break down drive whole line stop while decoiler idle

2

Feeding Table

set

1

3.

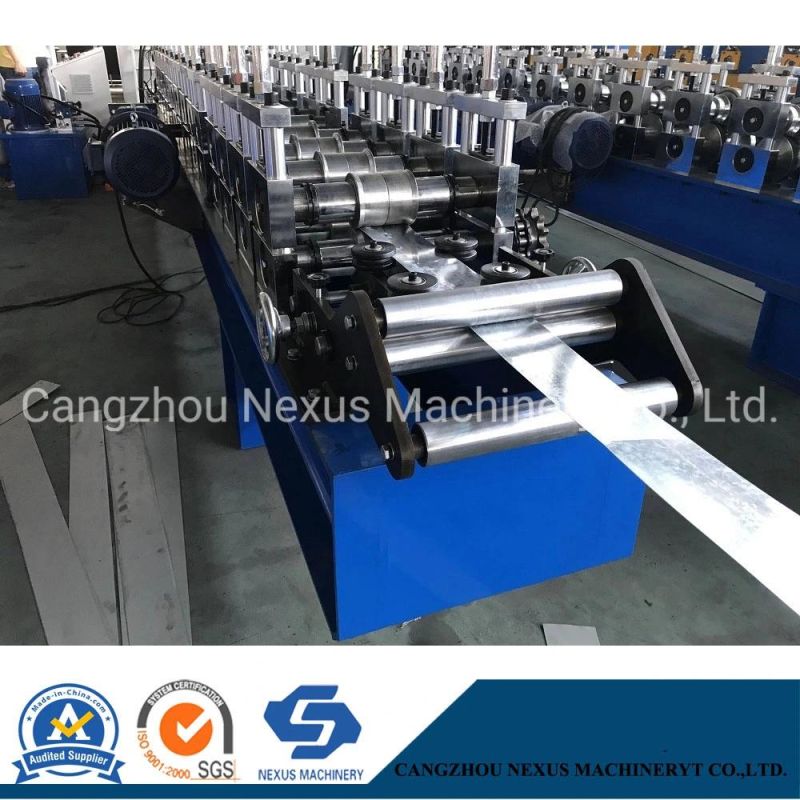

Forming Rollers

set

1

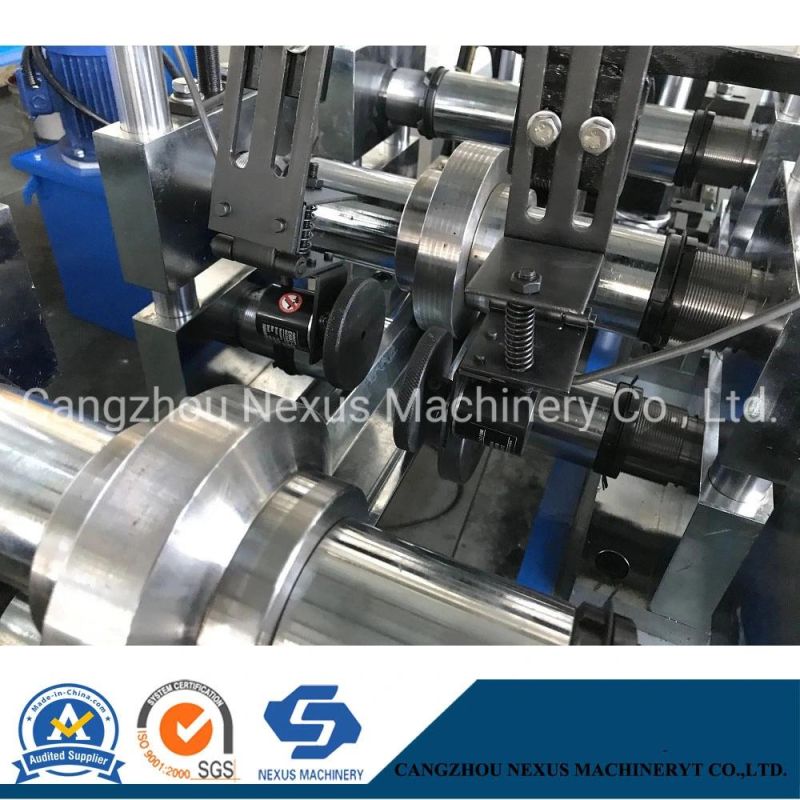

• Forming Station 16 nos
• Forming Rollers material Cr12
• Forming Rollers hard treatment HRC 58-60
• Shaft of roller Diameter 40mm
• Shaft material 40Cr,heat treatment, refine grinded
• Machine frame: steel welding
• Main sidewall thickness 25mm
• Machine driven by universal joints via gearbox
• Roll forming motor 5.5kw with frequency inverter controller
• Gearbox RV  worm gearbox

4.

Hydraulic cutting with hole punching

set

1

• Hydraulic pump stand 1 set
• Hydraulic Components taiwanese
• Hydraulic System discharging protection with wind cooler
• Edge cutting 2 sets both ends
• Middle joint hole punching  23sets/152.4mm
• Fire testing hole  2 sets both ends
• Mould standard SKD-11 Steel Japanese
• Mould frame&plate S45C
• Mould pin SKH-9 steel Japanese
• All mould treatment  By slow-feeding Nc wire cutting

5.

Profile Discharger

set

1

• Driven  machinical Auto Head
• Operation Full automatic along with forming machine

6.

Electric Control system

set

1

• Frequency converter Silin ,Taiwanese
• PLC Fatek ,Taiwanese
• Touch screen weinview Taiwanese
• Profile length cutting forming machine stops then cut
• Operational controller: touch screen knob switch emg

Brake down and so on

(6)Power supplier  380V 50Hz 3phase

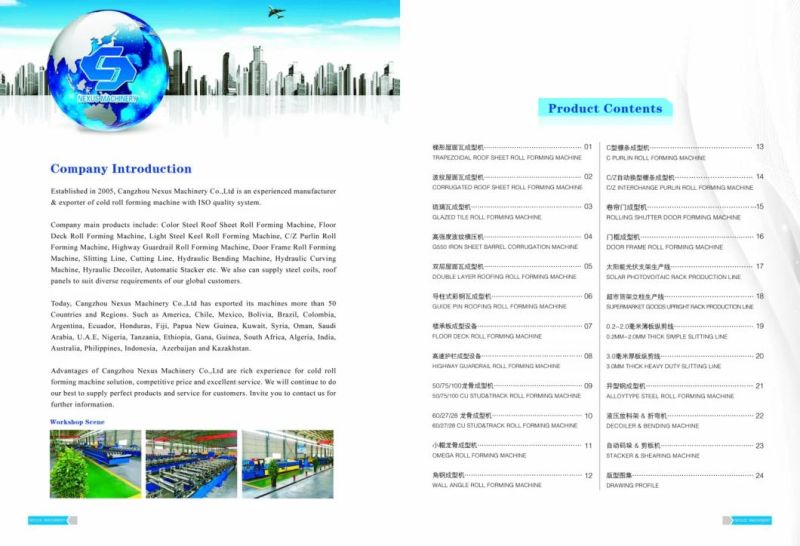

ABOUT US:

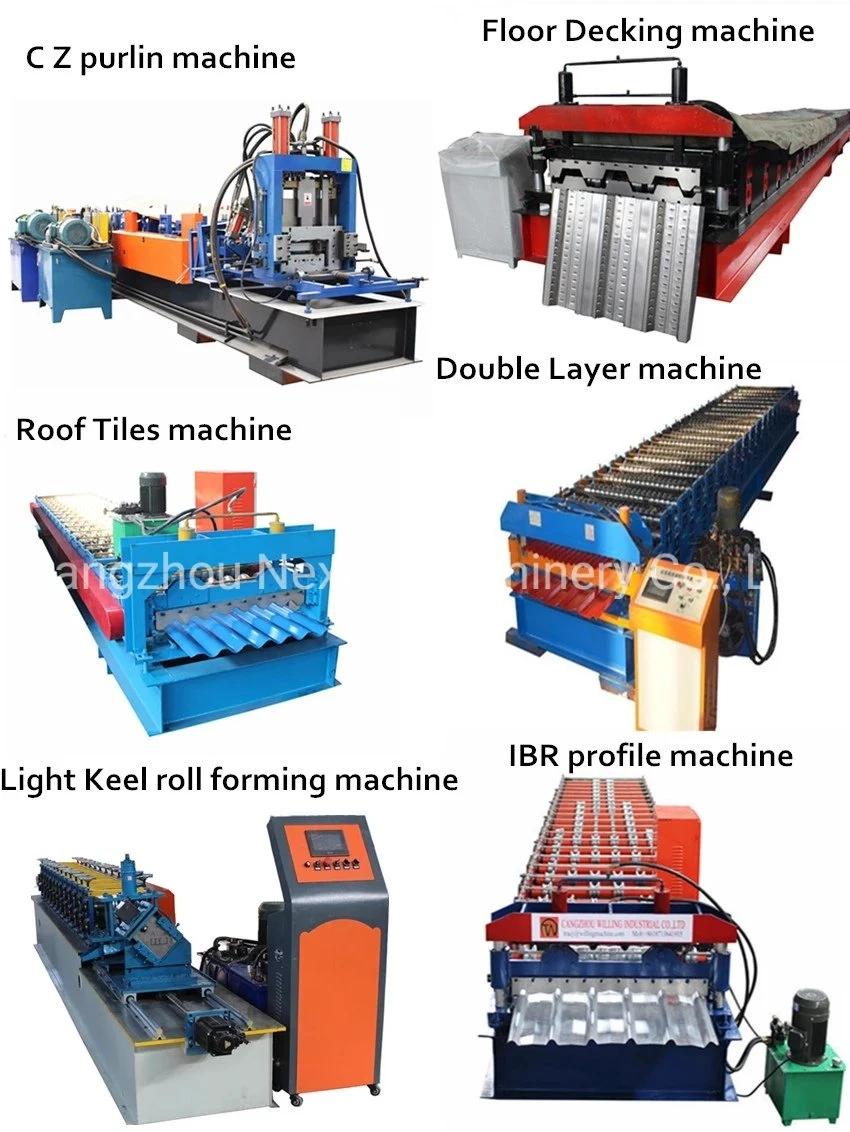

More Products for Your Choose:



FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
