• Model NO.：Comflex
• Application：Industry
• Type：Pipe Production Line
• Name：Bellow Pipe & Egr Pipe Forming Machine
• Operatiing Pressure：20 Bar
• Max Stroke：300~450
• Vertical Speed：260~200 mm,S
• Shut Height：700~800 mm
• Norminal Pressure：250~1000 N
• Motor Power：15+5.5kw~22+7.5kw
• Model1：Xd-Y62-100t
• Model2：Xd-Y62-300t
• Max Stroke of The Side of The Cylinders：150~250
• Work Progress：20~25 mm,S
• Return：250 mm,S
• Center Height：200~250mm
• Model 1 Area：1000*600 mm
• Model 2 Area：1200*800 mm
• Transport Package：Standard
• Specification：customized
• Trademark：CFX
• Origin：Jiangsu, China
• HS Code：8462991000
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. Comflex Application Industry Type Pipe Production Line Name Bellow Pipe & Egr Pipe Forming Machine Operatiing Pressure 20 Bar Max Stroke 300~450 Vertical Speed 260~200 mm/S Shut Height 700~800 mm Norminal Pressure 250~1000 N Motor Power 15+5.5kw~22+7.5kw Model1 Xd-Y62-100t Model2 Xd-Y62-300t Max Stroke of The Side of The Cylinders 150~250 Work Progress 20~25 mm/S Return 250 mm/S Center Height 200~250mm Model 1 Area 1000*600 mm Model 2 Area 1200*800 mm Transport Package Standard Specification customized Trademark CFX Origin Jiangsu, China HS Code 8462991000 Production Capacity 200 Sets/Year

Product Description

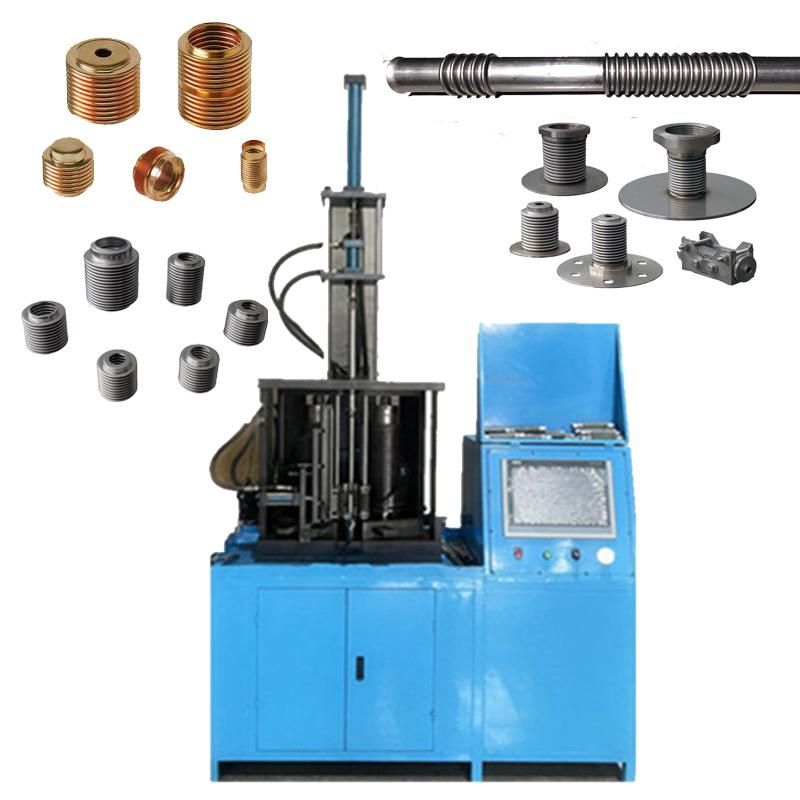

Bellow Pipe & EGR Pipe Hydro Forming Machine


Why Choose Us? What Can We Do For You?

We are the top 3 leading exhaust pipe machine, innerlocked hose machine, bellow pipe machine, braiding machine manufacturer.We have 30 years of industrial corrugated bellow, hose & pipe machinery manufacturing experience.
♦ Founded in 1988 and experienced in the field of exhaust system and industrial pipe for 30 years.
♦ We have large capacity, over 10 sets/month.
♦ Management system certification:ISO9001.ISO10380.
♦ We have our own technical and mould deparmtent, ready for any customized products.
♦ Sales network expands from over domestic sales to all over the world.

♦ we have all kinds of products can be adapt any environment. you can choose which one is suitable to your products. pls tell us about your requirements,we will reply you immediately, looking forward to hearing from you.

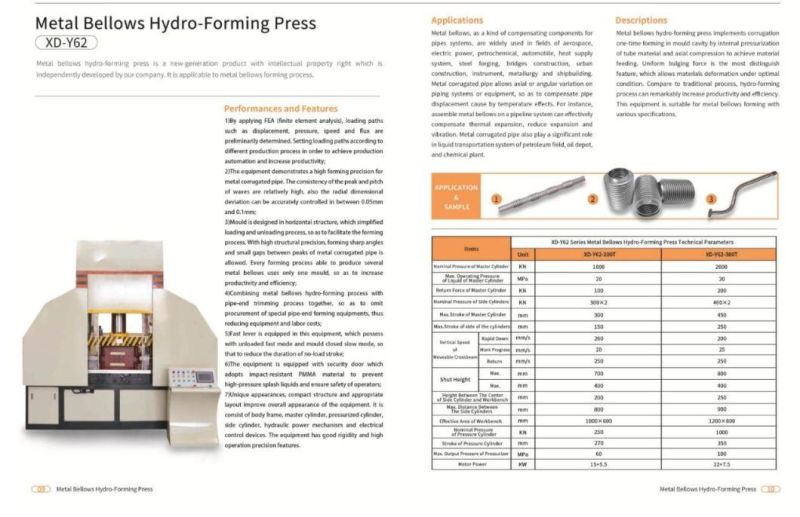

Specification:

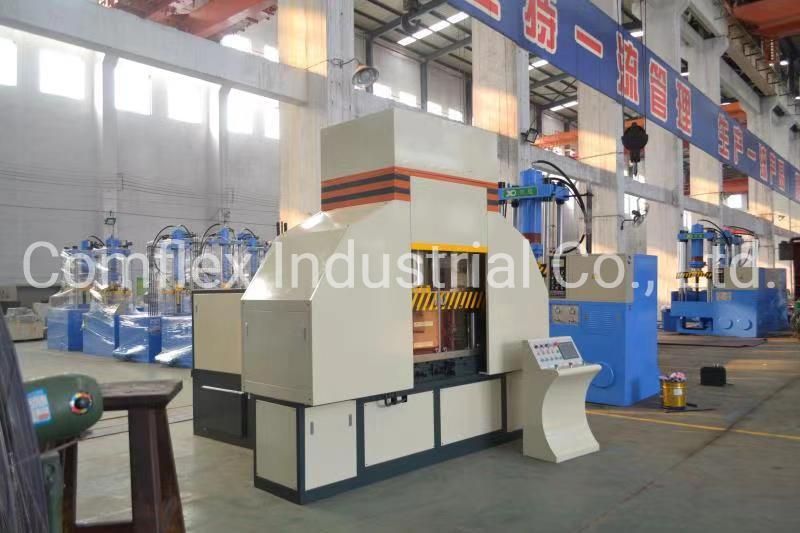

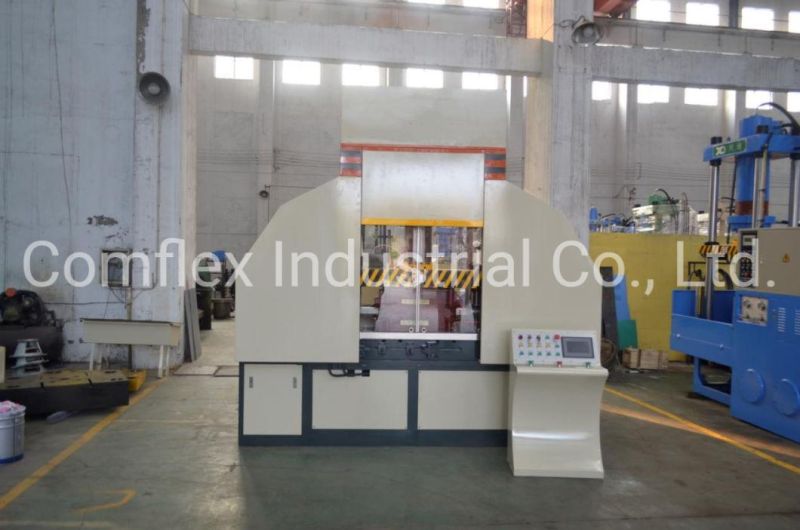

Machine Overlook

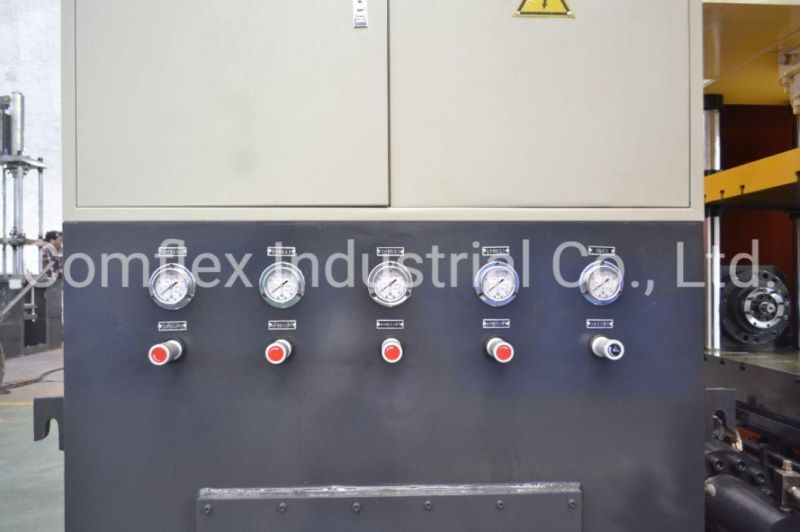

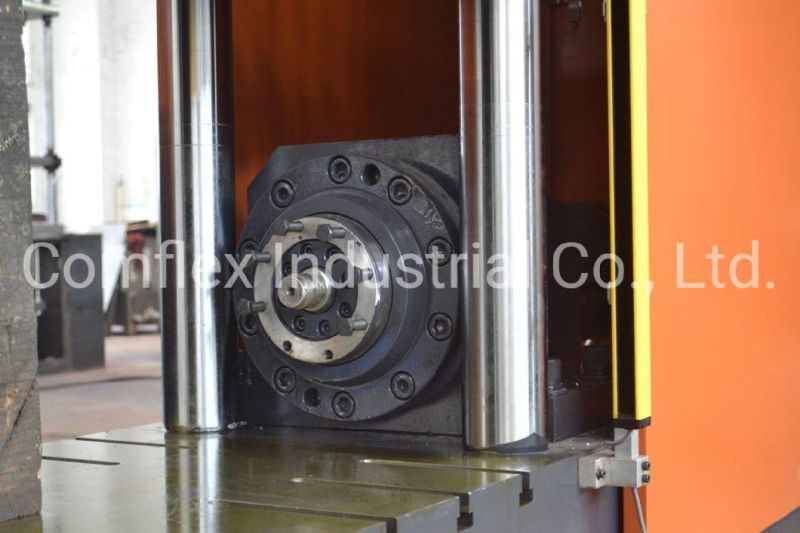

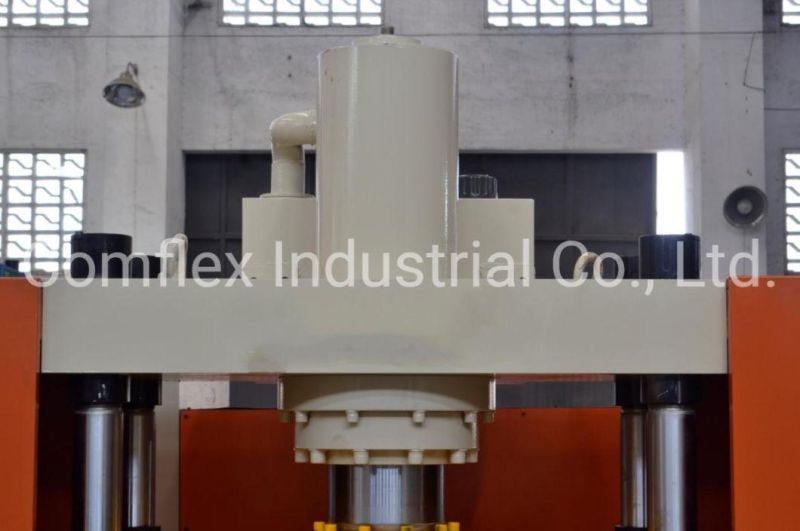

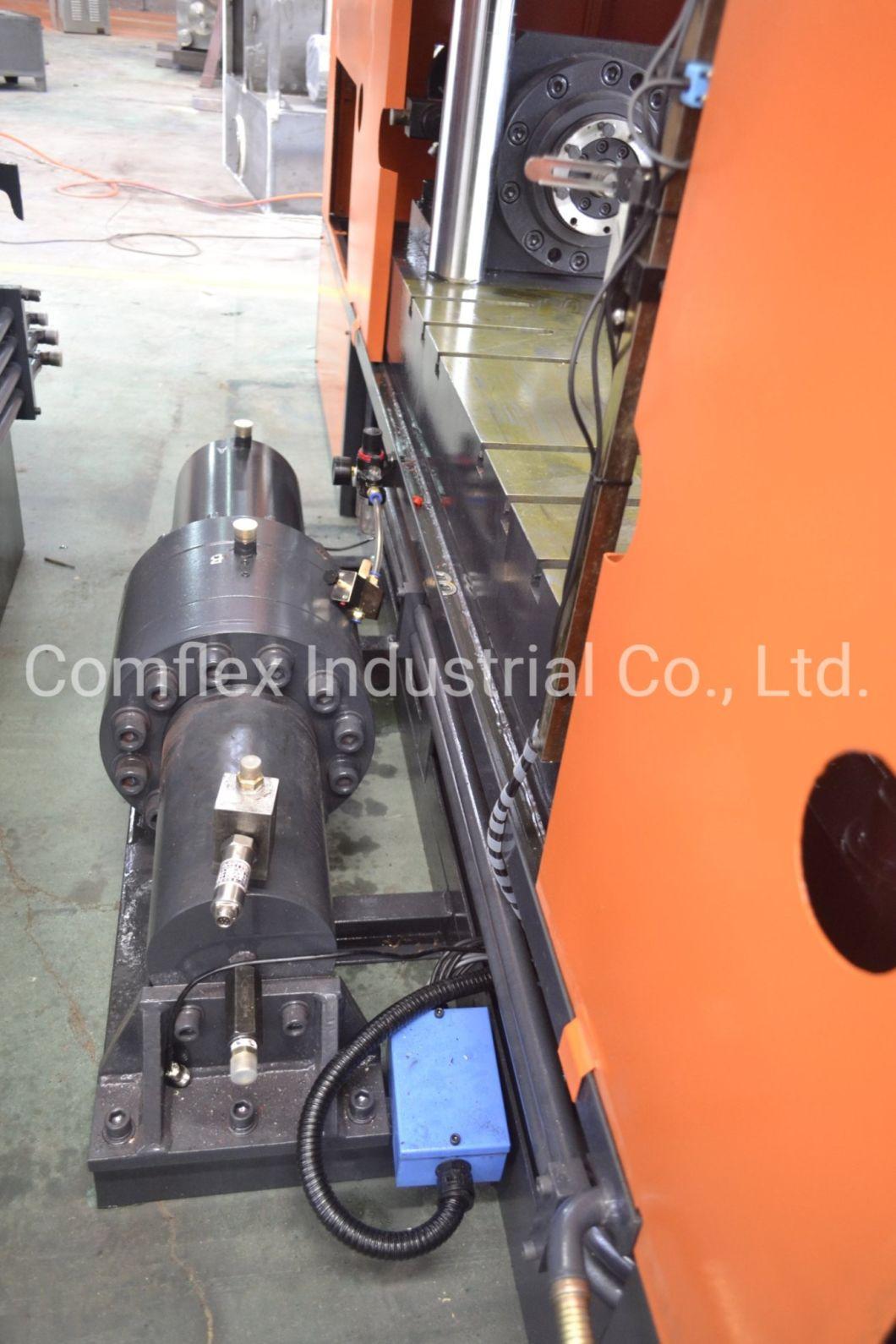

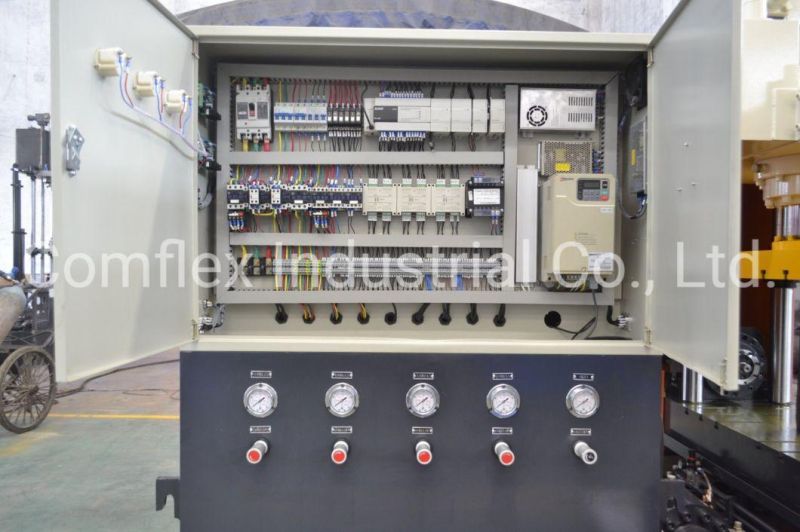

Machine Details

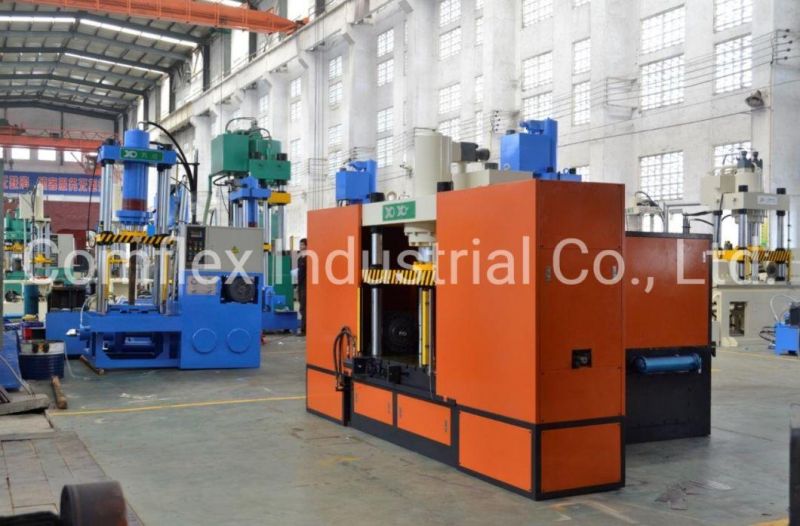

Company Profile
Comflex Industrial Co.,Ltd makes all kinds of flex-related machines, such as flexible metal hoses machine, expansion joints machine, braidings machine, hose fittings welding machine, and related products, as long as elastomer hose forming machine, hydraulic forming machine,wire braiding machine, rewinding machine,bellow forming machine, etc..We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.


 FAQ for hose forming machine
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience

Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines

Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
  a:DN16-65mm   b:DN25-DN100mm   c:DN32-150mm  d:DN50-300mm  e:DN80-400mm
B: Mechanical hose making machine
  DN8-50mm
C:PU/ Elastomer Metal Hose Making Machine
 a:DN12-100   b: DN50-150   c:DN12-65
...
More info pls feel free to send us inquiry!


Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well

We need to know following information to quote you correct machineries:
1. Size range you want to make
2. The application of the hose you need, for instance, natural gas hose, water hose, air conditional hose, etc..
3. Wall thickness
