• Model NO.：CLJZ2-450*3700
• Motor Rotary Speed：2800r,Min
• Air Pressure：0.5-0.8MPa
• Air Consumption：60L,Min
• Blade Specification：Φ450*Φ30*4.4 Z=120
• Cutting Length at 90°：400-3700mm
• Cutting Length at 45&Deg and 135°：580*3700mm
• Cutting Width*Height at 45&Deg：Max. 120*200mm
• Cutting Angle：45° 90° 135&Deg
• Color：Gray or as Requirement
• Keywprd：Window Profile Cutting Machine
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：15 Sets Per Month

Basic Info.

Model NO. CLJZ2-450*3700 Motor Rotary Speed 2800r/Min Air Pressure 0.5-0.8MPa Air Consumption 60L/Min Blade Specification Φ450*Φ30*4.4 Z=120 Cutting Length at 90° 400-3700mm Cutting Length at 45&Deg and 135° 580*3700mm Cutting Width*Height at 45&Deg Max. 120*200mm Cutting Angle 45° 90° 135&Deg Color Gray or as Requirement Keywprd Window Profile Cutting Machine Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 15 Sets Per Month

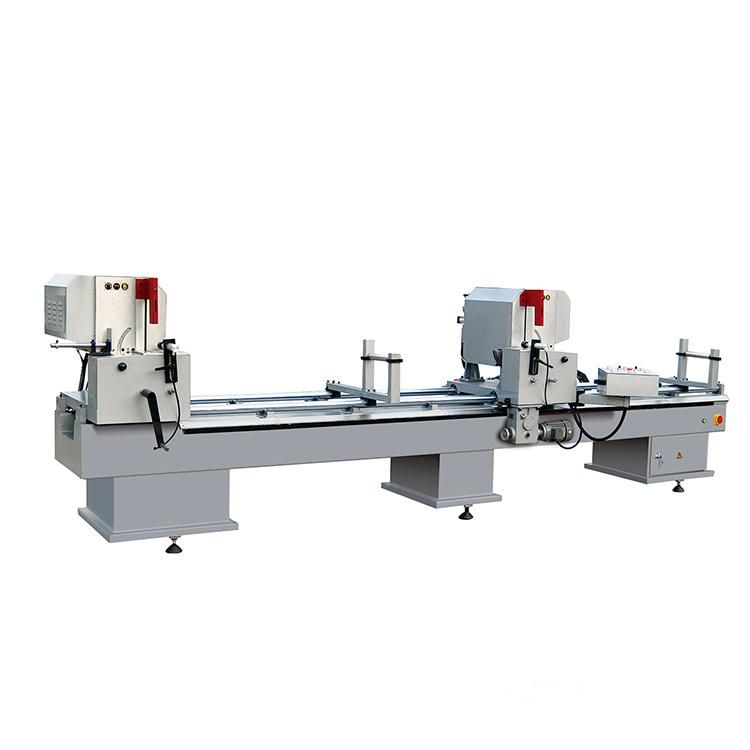

Product Description

window shade cutting machine to buy saw cutting aluminum
Equipment Advantages

1) Imported carbides blade is of accurate processing and high accuracy.

2) Saw blade rotates smoothly due to high accuracy main spindle.

3) Uniform speed feeding and smooth motion are due to airdraulic damping cylinder.

4) It has feature of easy operation,reliable performance,advanced technique and convenient maintenance,etc.

5) Two saw head can be manually switching angle,realize the -45 degree,90degree,45degree angle cutting profile.

Technical Data


Power Supply	380V 50HZ
Input Power	2*1.5KW 1*0.55KW
Air Pressure	0.5~0.8MPa
Cutting profile surface roughness	Ra12.5μm
Saw Blade Specification	Φ450*Φ30*4.4 Z=120
Cutting Angle	45 ° 90° 135°
Cutting angle allowance	±5'

Cutting speed	0-3m/min
Cutting profile surface planness	≤0.1mm
Motor Rotary Speed	2800r/min
Cutting Length	400-3700mm at 90°/580-3700mm at 45°
Cutting Width*Height	120*200mm
Overall Dimension	4500*1170*1400mm
Weight	1500Kg

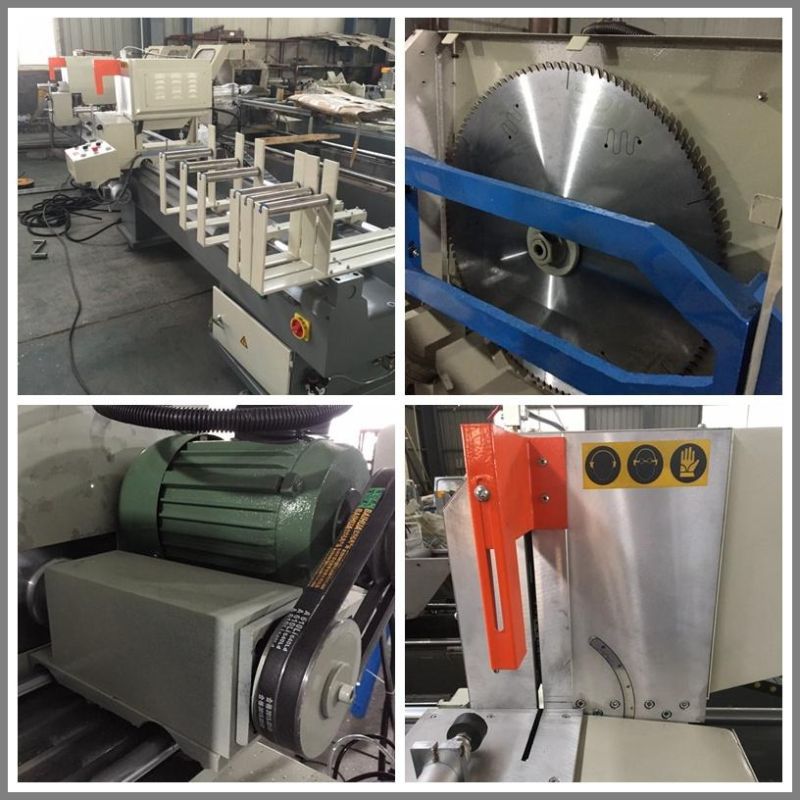

 Machines Details

 Main Accessory

Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

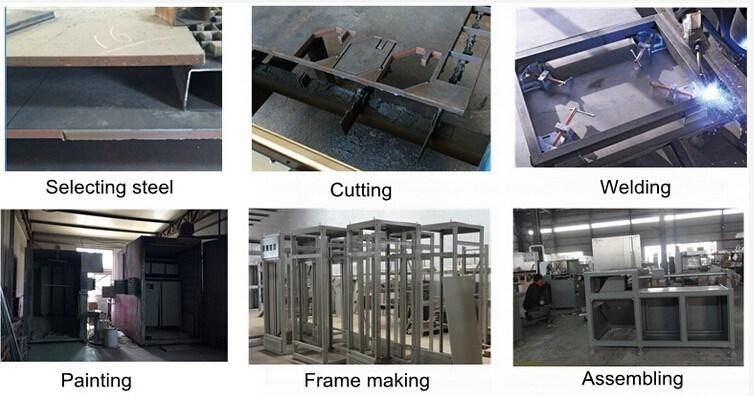

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.

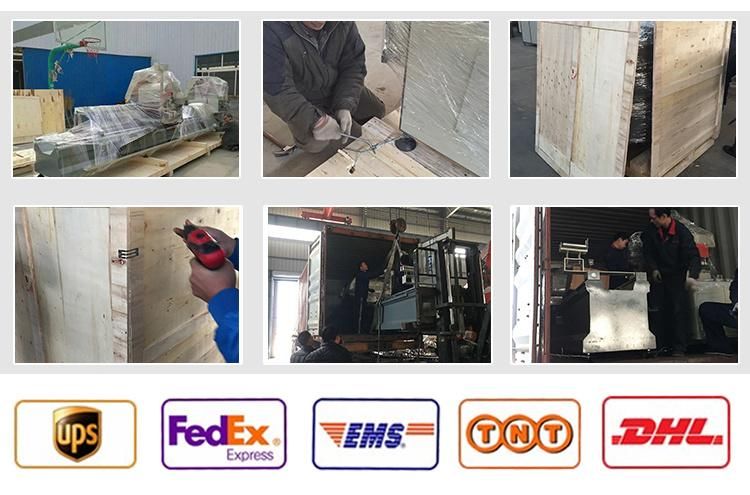

Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company

Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
