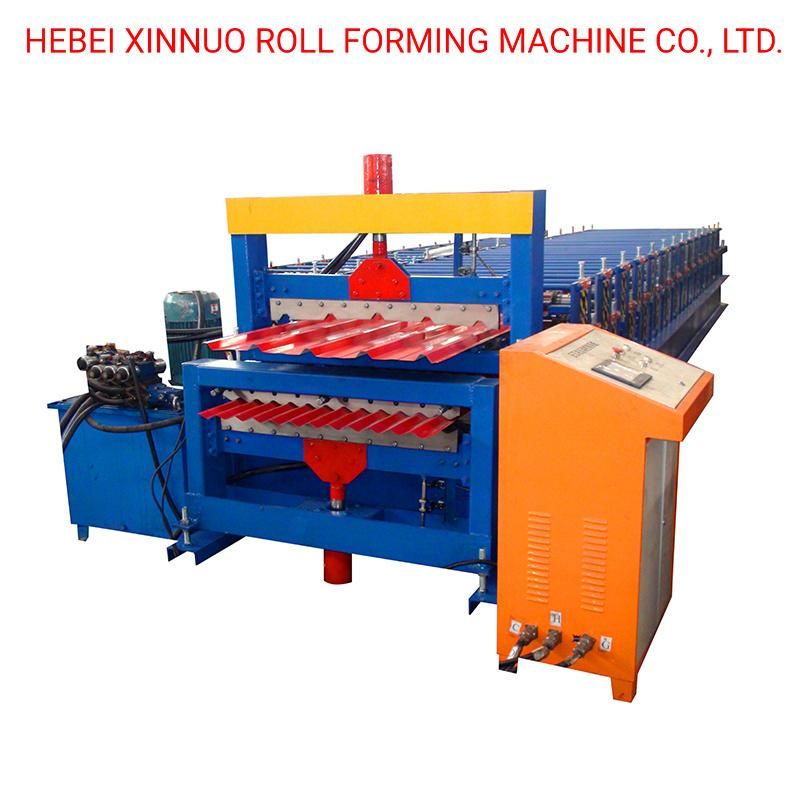

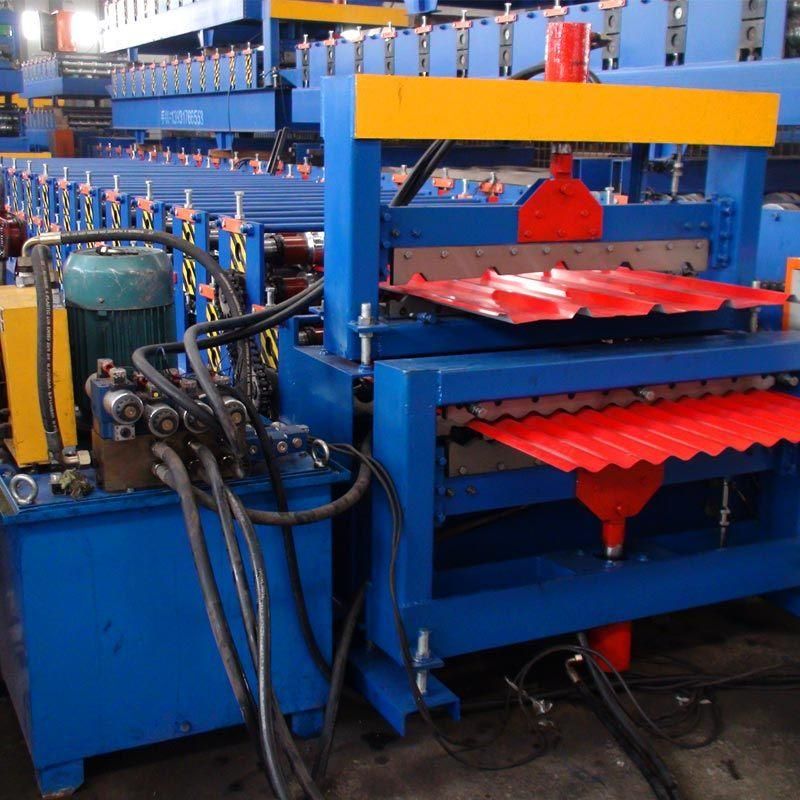

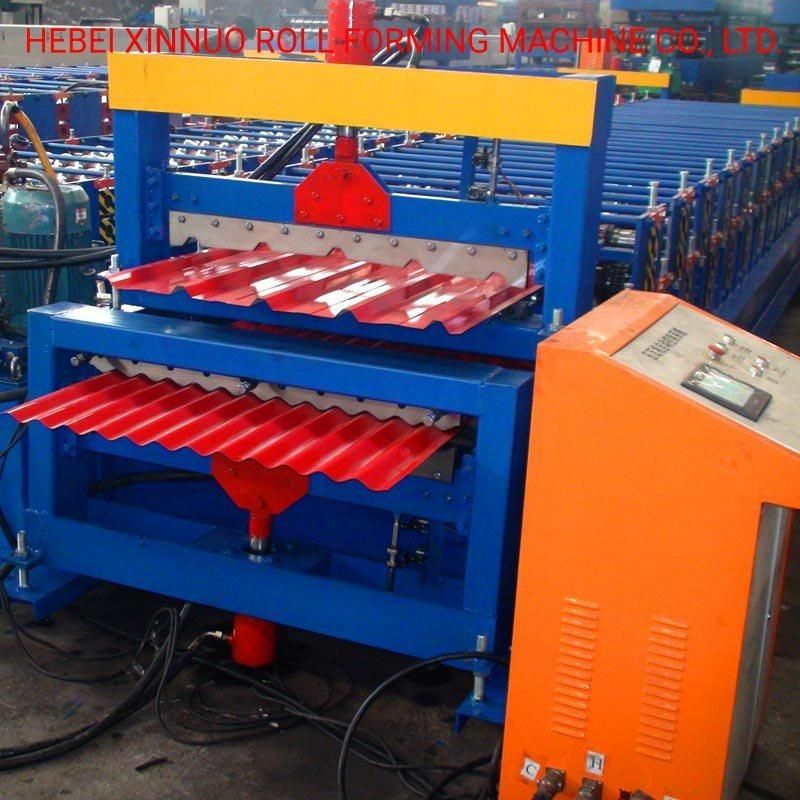

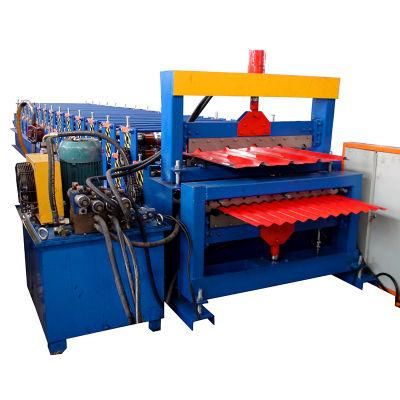

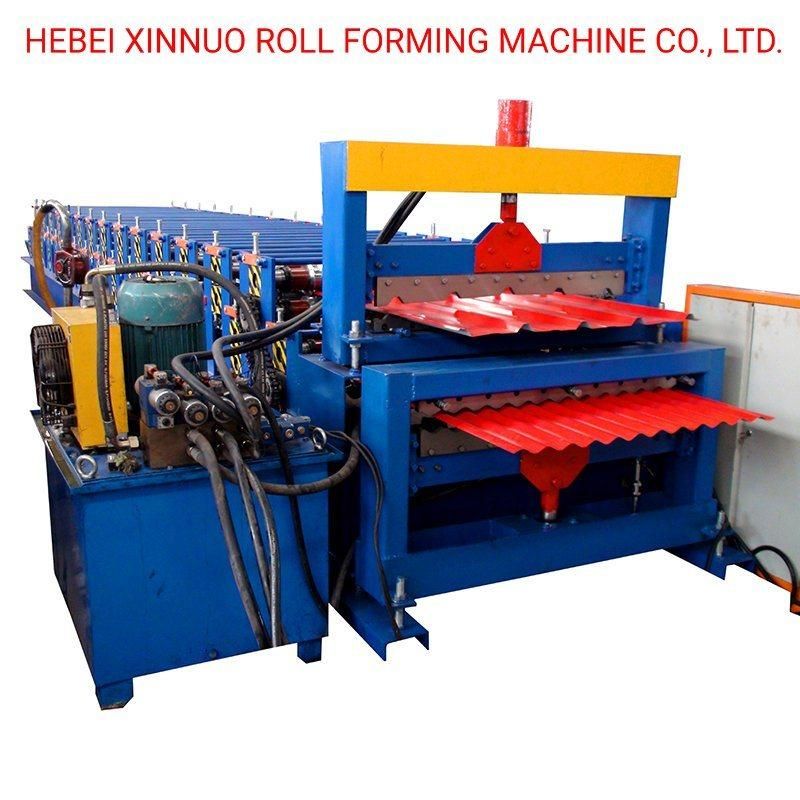

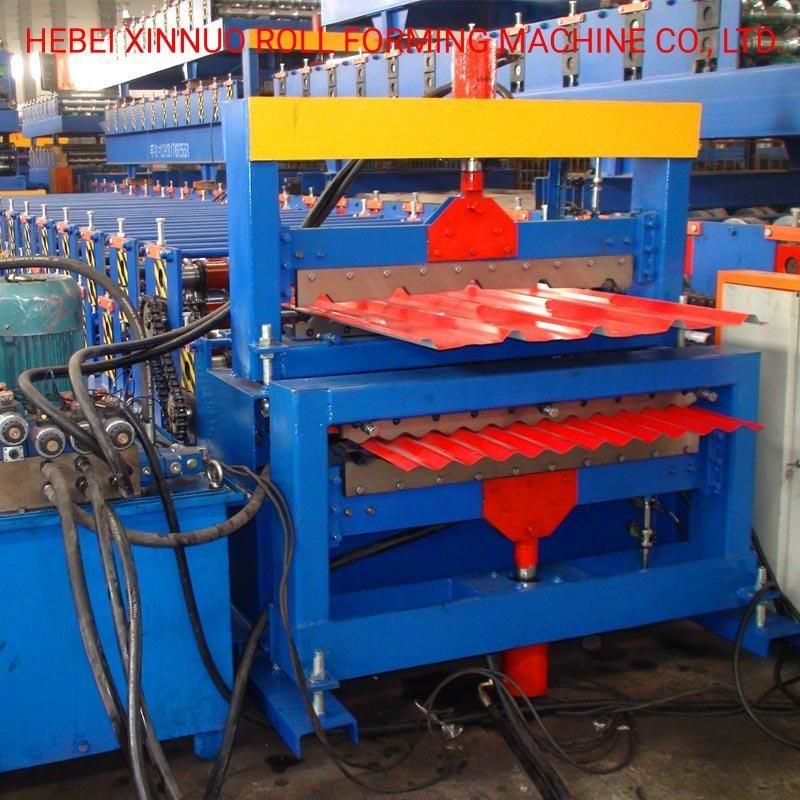

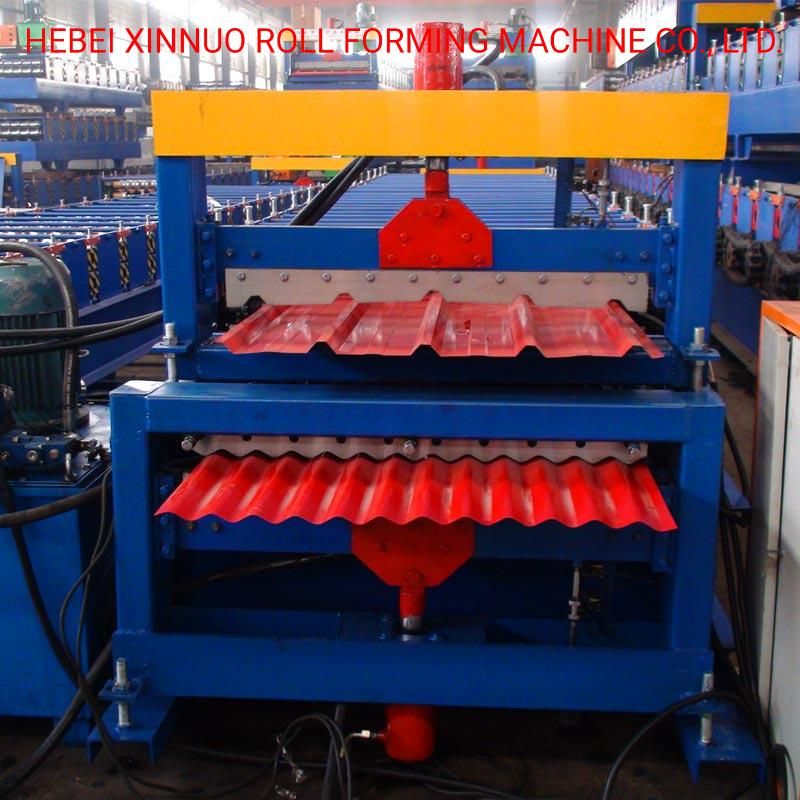

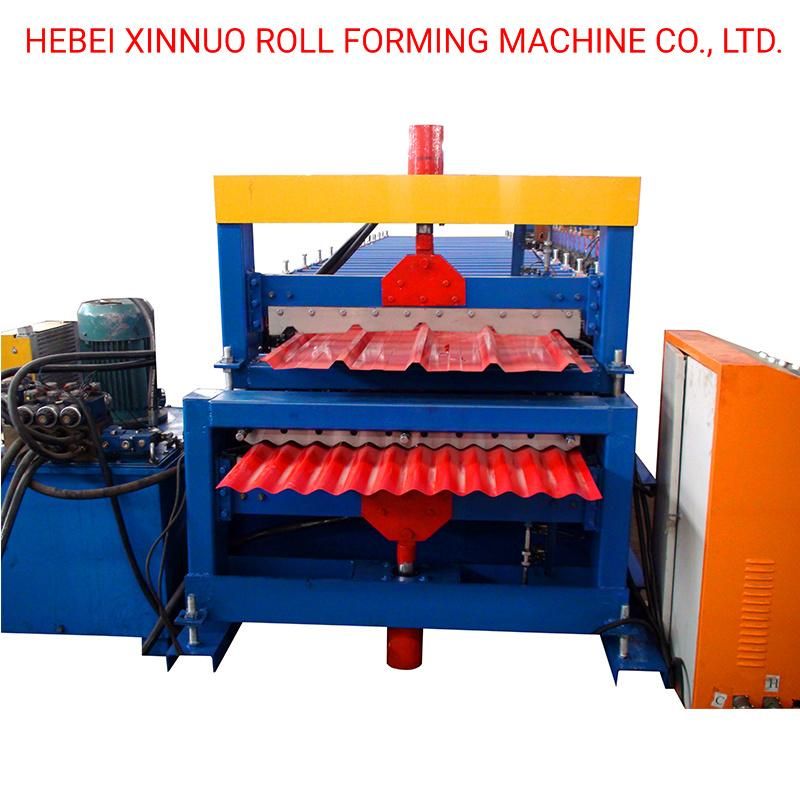

Double Layer Steel Profile Metal Roofing Sheet Panel Roll Forming Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof
- Transmission Method：Electric
Base Info
- Model NO.：840+850
- Transport Package：Naked
- Specification：KXD 840-850
- Trademark：KEXIDNA
- Origin：China
- Production Capacity：2000 Sets,Year
Description
Basic Info.
Model NO. 840+850 Transport Package Naked Specification KXD 840-850 Trademark KEXIDNA Origin China Production Capacity 2000 Sets/YearProduct Description
TECHNICAL PARAMETER:
Units including: manual decoiler ,main machine for roll forming ,post cut, hydraulic system ,PLC ontrol ,stacking
1.control system: automatic PLC frequency control ,text screen.
2.roller steps:9/11 rows
3.main power:4kw
4.pump power:4kw
5.Diameter of roller: Φ72mm
6.max speed:12m/min
7.feeding width:1000mm
8.the effective width:850/840mm,tolerance ±1/100
9.thickness of the plate:0.35-0.6mm
10.the dimension of main roll former: 7600mm×1300mm×1450mm
11.roller material:45#steel,CNC-machined ,heat treatment, buffing, surface for electroplating chromium 0.05mm
