• Model NO.：SHQXJ01
• Input Power：4.5kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：280L,Min
• Welding Height：20~120mm
• Welding Width：≤140mm
• Welding Range：400X1000~2550X4300mm
• Overall Dimension：5100X3500X1800mm
• Transport Package：Plastic Cover, Plywood Cases, or Others
• Trademark：YUEFENG
• Origin：Jinan, Shandong
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. SHQXJ01 Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 280L/Min Welding Height 20~120mm Welding Width ≤140mm Welding Range 400X1000~2550X4300mm Overall Dimension 5100X3500X1800mm Transport Package Plastic Cover, Plywood Cases, or Others Trademark YUEFENG Origin Jinan, Shandong Production Capacity 100 Sets Per Month

Product Description

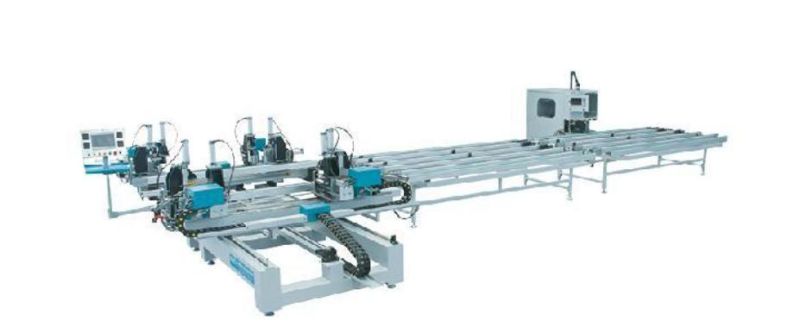

CNC Welding and cleaning production machine for upvc window and doorThe production line consists of a welding unit, a conveying unit (transporting table) and a corner seam cleaning unit, which are used to complete the welding, conveying and corner cleaning of the plastic door and window rectangular frame (or fan).
The welding unit body is horizontally arranged, and the welding of one rectangular frame can be completed in one clamping.
The machine adopts the torque detection technology to realize the automatic pre-tightening of the four corners, ensuring the welding precision.
The corner seam cleaning unit is equipped with a three-axis six-knife high-efficiency servo drive system that automatically achieves quick cleaning of almost all welds of plastic doors and windows.
Optional: The welding unit can be customized according to the user's needs.

Technical Parameter:

Input power: 380V/50Hz
Total power: 15KW
Work pressure: 0.6~0.8MPa
Gas consumption: 200L/min
Weld profile height: 25~160mm
Weld profile width: 0~130mm
Welding range: 420×620~1800×3000mm
Weld cell size:5500x2860x1600mm
Angle seam cleaning unit 960x1230x2000mm
conveying unit size:4000x3000x900mm

RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
