• Model NO.：VP
• Processing：Tiles Production Line
• Product：Tiles
• Brick Raw Material：Clay
• Automation：Automatic
• Tolerance：0.5mm
• Condition：New
• Transport Package：Container
• Specification：Kl
• Trademark：BRICTEC
• Origin：China
• HS Code：847480
• Production Capacity：30, 000 PCS,Day

Basic Info.

Model NO. VP Processing Tiles Production Line Product Tiles Brick Raw Material Clay Automation Automatic Tolerance 0.5mm Condition New Transport Package Container Specification Kl Trademark BRICTEC Origin China HS Code 847480 Production Capacity 30, 000 PCS/Day

Product Description

Product introduction:

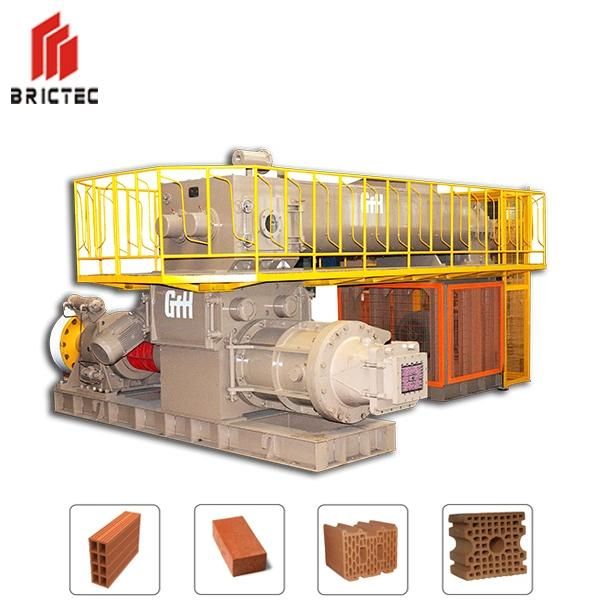

Clay is the most important raw material forTile & brick making in Bangladesh. Based on this situation, we produce the semi-hard extruding extruder which is very suitable for clay tiles & brick making. It is high-performance extruding equipment for extrusion and forming of various tiles & bricks made from clay. It is permitted to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. Its mixing reducer is equipped with hardened gears which are all grinded, and the extrusion reducer makes use of planet gears with high drive efficiency, therefore, it is the advanced vacuum extrusion equipment in the world.










Technical Parameters of Vacuum Extruder for Tile & brick production:


Specification	VP45A	VP45B	VP50A	VP50B
Output (standard pcs/h)	10000-14000	10000-14000	12000-16000	12000-16000
Diameter of Extrusion Reamer(mm)	450	450	500	500
Rotary Speed of Extrusion Reamer(r/min)	24(Customizable)	24(Customizable)	28(Customizable)	28(Customizable)
Distribution Power (kW)	110+55+7.5X2	110+55+7.5X2	132+55+7.5X2	132+55+7.5X2
Allowable Extrusion Pressure(MPa)	4	3	4	3
Vacuum(MPa)	-0.096	-0.096	-0.096	-0.096
Model of Upper Reducer	Z335	ZQ65	Z335	ZQ65
Model of Lower Reducer	N560	ZQ100	N560	ZQ100
Model of Vacuum Pump	SK-6	SK-6	SK-6	SK-6







Company & Service Introduction

1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.






Tiles Production line
