• Model NO.：DCIB800
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Application：Building Material
• Service：Engineer Oversea Service
• Fuel：Natural Gas,Diesel,Coal,Heavry Oil
• Heat Supply：Hot Air Stove
• Board Type：Fire Resistant,Water Resistant,Common
• Workshop：150*30*7m
• Machinery：120*27*7m
• Total Power：350kw
• Manufacturing：100 Days
• Installation：70 Days
• Transport Package：Seaworthy Packing
• Specification：ISO9001
• Trademark：DCI
• Origin：China
• HS Code：847480901
• Production Capacity：6 Sets

Basic Info.

Model NO. DCIB800 Certification CE, ISO Condition New Customized Customized Application Building Material Service Engineer Oversea Service Fuel Natural Gas/Diesel/Coal/Heavry Oil Heat Supply Hot Air Stove Board Type Fire Resistant/Water Resistant/Common Workshop 150*30*7m Machinery 120*27*7m Total Power 350kw Manufacturing 100 Days Installation 70 Days Transport Package Seaworthy Packing Specification ISO9001 Trademark DCI Origin China HS Code 847480901 Production Capacity 6 Sets

Product Description

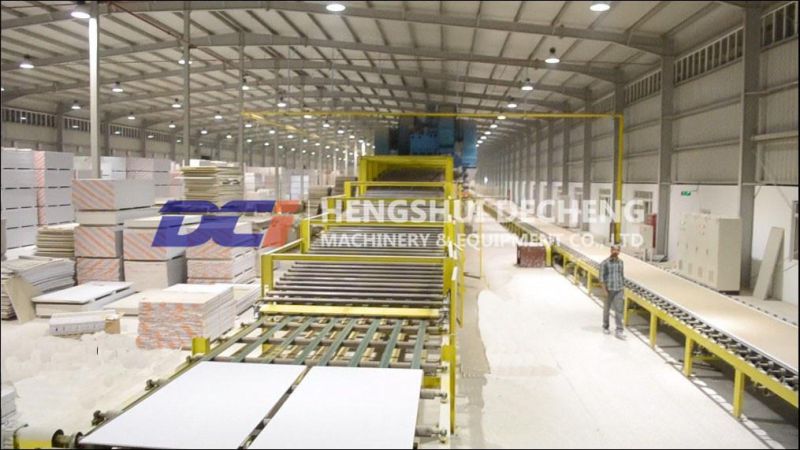

Gypsum Board Production Line:
1. Annual output:
5million to 30 million sqm(based on thickness of 9.5mm gypsum board)

2. Working time: 24hours/day and 300 working days/year

3. Raw material: Gypsum powder, shielding paper, modified starch, foaming agent, glue

4. Fuel: Natural gas, diesel, heavy oil or coal

5. Product quality and specification:
1) The product is in compliance with National Standard GB/T9775-2008
2) Product specification:
Length: 2400mm~3600mm
Width: 1200mm or 1220mm
Thickness: 8mm-20mm

6. Main process:

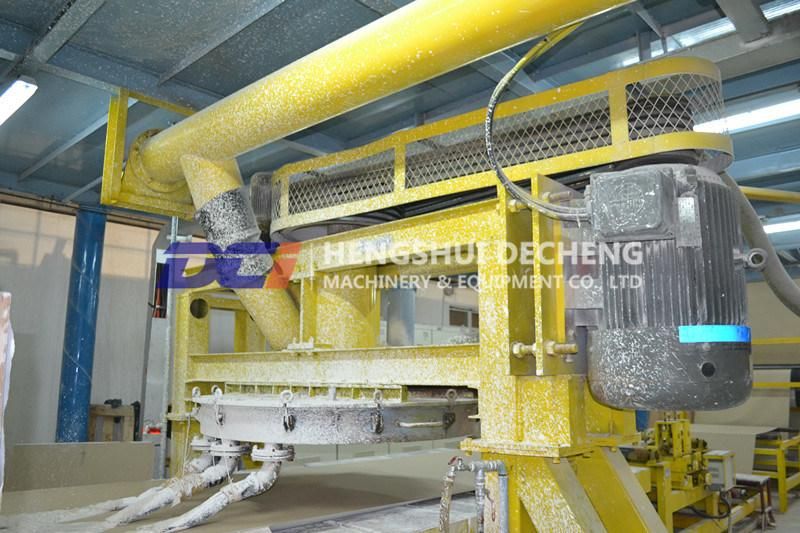

1)Raw material blending;
2)Shaping;
3)Wet board/panel conveying;

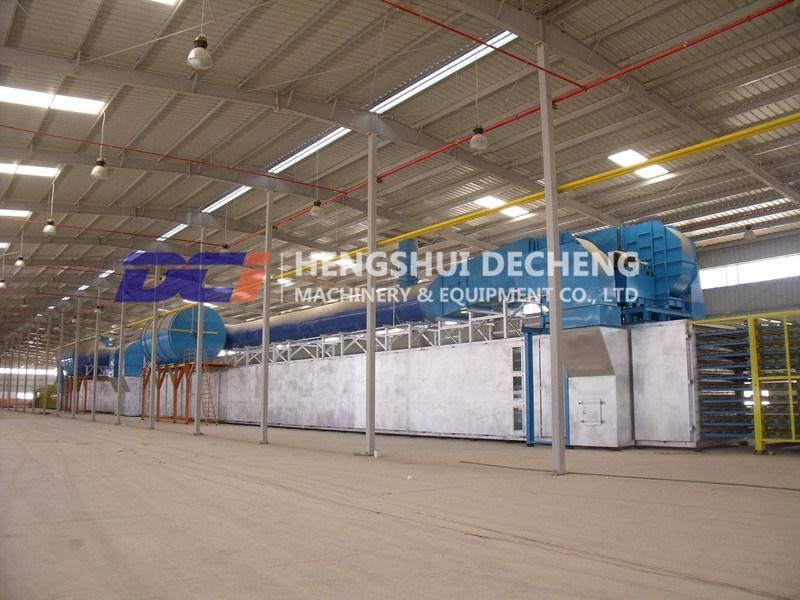

4)Drying;
5)Dry board/panel conveying;
6)Finished product stacking and storage.

7. Main technology:
The production line adopts special designed hot air stove heating system

8.Raw material consumption list:
(Based on 9.5 mm gypsum board for reference)

Gypsum	6.8kg/m2
Shielding paper	0.48kg/m2
Modified starch	0.035kg/m2
Foaming agent	0.008kg/m2
Glue	0.005kg/m2
Fiberglass (optional)	0.025kg/m2
Electricity	0.3kwh/m2
Water	4.8kg/m2
Light oil	1,000,000kcal/hour
Natural gas	0.45m³/m2


Till now, we've manufactured and supplied complete sets of machine lines to Russia, Oman, Uzbekistan,United Arab Emirates, Iran.
