• Model NO.：JKY 50E
• Tolerance：0.5mm
• Condition：New
• Processing：Brick Molding Machine
• Method：Vacuum Extruder
• Brick Raw Material：Clay
• Automatic：Yes
• Guarantee：1 Year
• Exported：25 Countries
• Transport Package：Container
• Specification：4875x1040x875
• Trademark：BRICTEC
• Origin：China
• HS Code：8474
• Production Capacity：11000~16000PCS,H

Basic Info.

Model NO. JKY 50E Tolerance 0.5mm Condition New Processing Brick Molding Machine Method Vacuum Extruder Brick Raw Material Clay Automatic Yes Guarantee 1 Year Exported 25 Countries Transport Package Container Specification 4875x1040x875 Trademark BRICTEC Origin China HS Code 8474 Production Capacity 11000~16000PCS/H

Product Description

Product Introduction:
Vacuum extruder equipment is mainly used for extrusion of various brick types make of clay, shale, coal gangue, fly ash as raw materials. It can also be used for extrusion of high end building materials like fiber cement panels, split brick, tile and ceramic pipe etc.Introduce from KWS company of Germany and receives the permission to produce in China with GFK trademark according to German standard.
This series equipment is well made in compact structure, good forming performance, high production efficiency, low power consumption, under the same extrusion pressure and production situation, it saves 20% of energy comparing with common vacuum extruder.


Total investment as per our experience (USD) (include foundation, civil work, shed, building materials, labor cost)

Our company provide the brick making machine, brick plant design, brick plant building.


Specification	VP45A	VP45B	VP50A	VP50B
Output (standard pcs/h)	10000_14000	10000_14000	12000_16000	12000_16000
Diameter of Extrusion Reamer(mm)	450	450	500	500
Rotary Speed of Extrusion Reamer(r/min)	24(Customizable)	24(Customizable)	28(Customizable)	28(Customizable)
Distribution Power (kW)	110+55+7.5X2	110+55+7.5X2	132+55+7.5X2	132+55+7.5X2
Allowable Extrusion Pressure(MPa)	4	3	4	3
Vacuum(MPa)	-0.096	-0.096	-0.096	-0.096
Model of Upper Reducer	Z335	ZQ65	Z335	ZQ65
Model of Lower Reducer	N560	ZQ100	N560	ZQ100
Model of Vacuum Pump	SK-6	SK-6	SK-6	SK-6

Product Features :

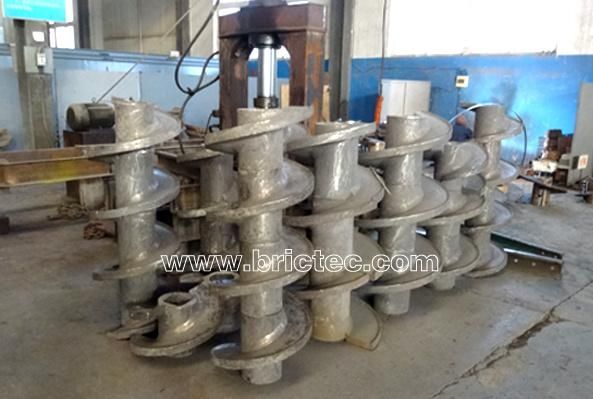

1. Auger:
1) Welded by wear resistant electrode, this auger could be reusable; Spraying wear-resistant metal materials (the hardness is 7 times of normal one), which ensure a long service life of auger.

2) High chromium casting material with High wear resistance feature, It has a long service life for producing 24 million bricks.
2. Gear reducer
It is adopted the high_quality alloy steel materials which is manufactured with carburizing, quenching, grinding process, Level-6 grade precision, the hardness is up  to HRC54~62 with feature of high loading capacity and long service life.
3. Shaft:
It is adopted the Chinese top quality shaft material: 40Cr or marketing code 45, all the material with heat treatment ,which has advantages of good wear resistance, large transmission torque and long service life.

4. Bearing
   All bearing shall be adopted the international famous brand Timken Bearing and Chinese famous brand Hawaluo bearing etc.
Company & Service Introduction

Xi 'an Brictec Engineering Co., Ltd.(hereinafter referred to as Brictec) was founded in 2007, headquartered in Xi'an high-tech industrial development zone, is a professional high-tech enterprise specializing in the consultation and design of sintered wall material production line, raw material testing, general contract of engineering, R&D and manufacturing of thermotechnical equipment as natural gas burner,pulverized coal burner, modular tunnel kiln, etc.
The company employs senior Italian engineers in terms of drying and firing, and unified domestic experts in the field of process design and thermal engineering, to build a strong technical team combining European technology and local technology, design and management. The company has established branches in Bangladesh, India and Vietnam, and its business covers more than 20 countries and regions.
In April 2018, Brictec and Shandong Mine Machinery Cosmec Construction Materials Machinery Co., Ltd. unified operation and management, providing users with overall solutions!

1.Brictec majors in the abroad & home fired-brick factory designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.
