Hengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine

Nantong Hengda Non-Burned Machinery Engineering Co., Ltd.
  • Certification：ISO9001: 2000, CE, SGS
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Block Making Machine
  • Color：Blue
  • Total Weight：12 T

Base Info

  • Model NO.：QT10-15
  • Control：PLC
  • Vibration Form：Table and Mould
  • Method：Hydraulic Pressure
  • Processing：Brick Production Line
  • Product：Brick
  • Brick Raw Material：Concrete
  • Automation：Automatic
  • Tolerance：0.5mm
  • Transport Package：Container
  • Specification：390*190*190mm
  • Trademark：hengda
  • Origin：Jiangsu
  • HS Code：84748090
  • Production Capacity：300PCS,Year

Description

Basic Info.

Model NO. QT10-15 Control PLC Vibration Form Table and Mould Method Hydraulic Pressure Processing Brick Production Line Product Brick Brick Raw Material Concrete Automation Automatic Tolerance 0.5mm Transport Package Container Specification 390*190*190mm Trademark hengda Origin Jiangsu HS Code 84748090 Production Capacity 300PCS/Year

Product Description

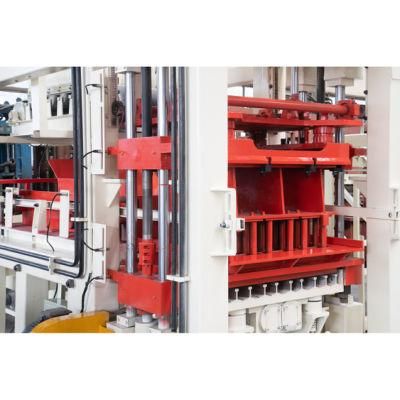

Hengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine

Hengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine
QT10-15 concrete block making machine is equipped with a frequency conversion vibration system. The system includes motors for top and bottom vibration generation, the paver block machine price utilizes the LG frequency converter. For reliable performance, the product is outfitted with LG PLC, as well as touch screen .Moreover, the hydraulic system of this paver block machine price is composed of integrated modular units from Germany and Italy.

The overall dimension (L x W x H):
5,200 x 2,300 x 2,960mm with facemix device
3,200 x 2,300 x2,960mm without facemix device
Concrete products: 50-300mm in height
Pallets size: 1,100x850mm

Main Technical Specifications of QT10-15 concrete block making machine



Dimension of host machine		3500×2220×2850mmHost machine power45.38KW
Moulding area1025×810mmVibration force100KN
Moulding period15-25SMixer modelJS750
The size of the pallet1350×900×30mmGeneral water Consumption12T/every day
Weight of the host machine14T
Voltage380V
Theoretical workshop area : 200m 2 , need about 7-8 workers .the office , curing area and
stacking area to arrange according your fact status.

(2) Production capacity
Size(LxWxH)Pcs/MouldPcs/ HrPcs/ 8 Hr
400X100X200203000-360024000-28800
400X150X200142100-252016800-20160
400X200X200101500-180012000-14400
400X250X200812009600
240*115*53548100-9720
240*115*90253750-4500
Paver:200X100X6035525042000
Paver:200X165X6020300024000

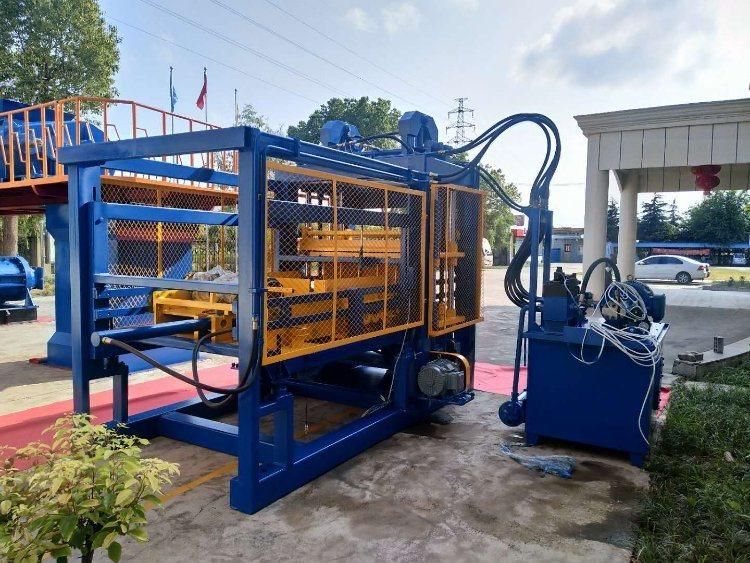

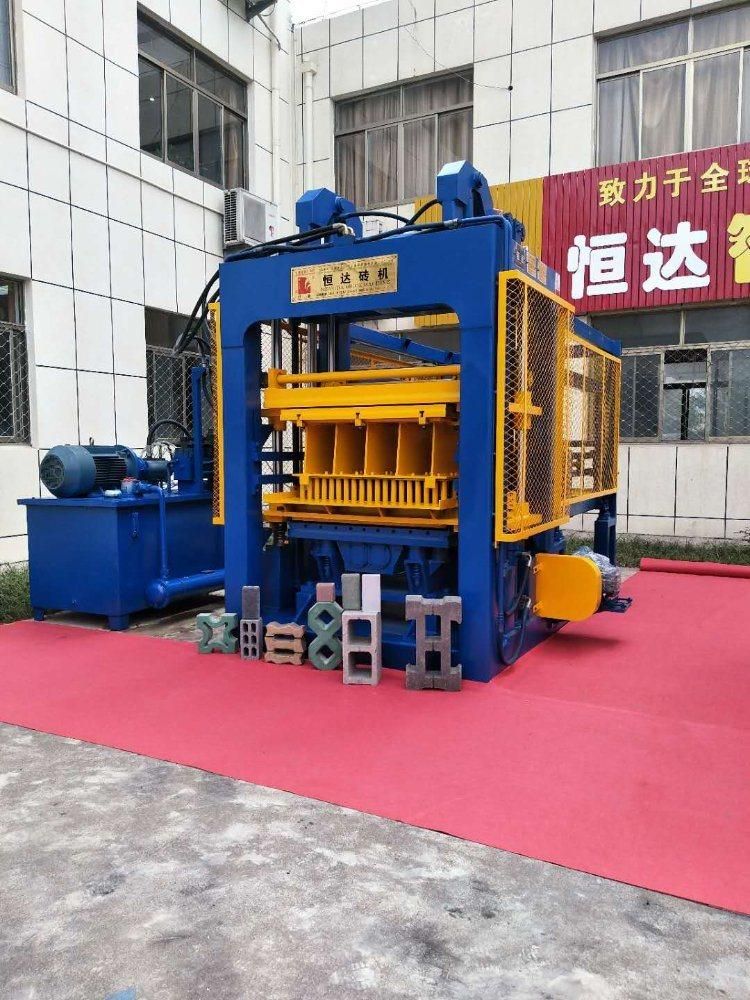

Hengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine
Hengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine
Hengda Brand Qt10-15 High Quality Cement Block Making Equipment MachineHengda Brand Qt10-15 High Quality Cement Block Making Equipment MachineHengda Brand Qt10-15 High Quality Cement Block Making Equipment MachineHengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine

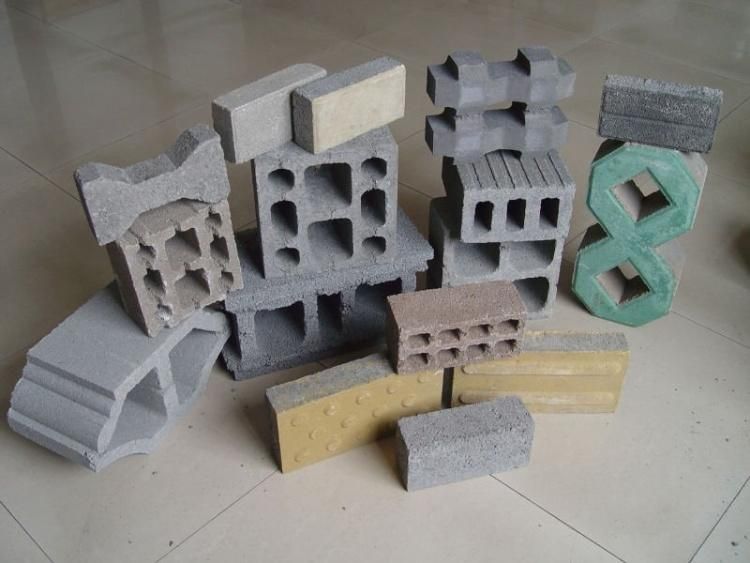

Block Samples
Hengda Brand Qt10-15 High Quality Cement Block Making Equipment Machine

We are brick making machine and  block making machine manufacturer, welcome to inspect our factory.
