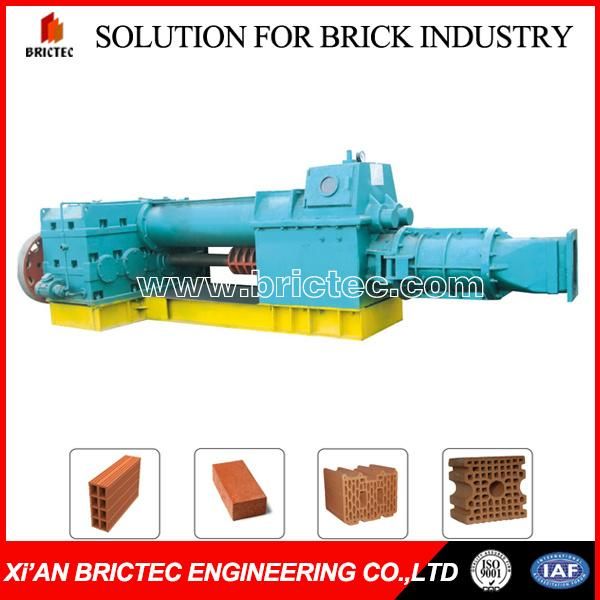

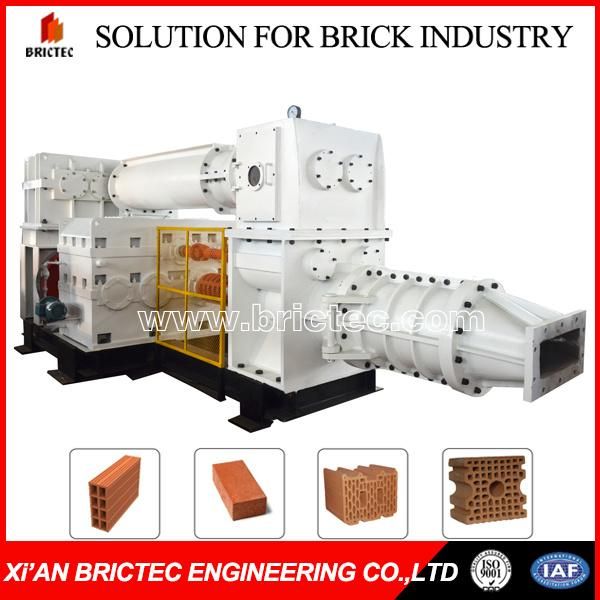

Fully Automatic Red Clay Brick Machinery with Spare Part

Xi'an Brictec Engineering Co., Ltd.
  • Certification：ISO
  • Customized：Non-Customized
  • Automatic Grade：Automatic
  • Type：Brick Making Machinery
  • Automation：Automatic
  • Condition：New

Base Info

  • Model NO.：VP60
  • Method：Vacuum Exturding
  • Brick Raw Material：Clay, Fly Ash
  • Power：90+185 Kw
  • Transport Package：Containers
  • Specification：6490x1550x2510mm
  • Trademark：brictec
  • Origin：China
  • HS Code：847480
  • Production Capacity：15000-21000(Standard PCS,H)

Description

SpecificationVP45AVP45BVP50AVP50BOutput (standard pcs/h)10000-1400010000-1400012000-1600012000-16000Diameter of Extrusion Reamer(mm)450450500500Rotary Speed of Extrusion Reamer(r/min)24(Customizable)24(Customizable)28(Customizable)28(Customizable)Distribution Power (kW)110+55+7.5X2110+55+7.5X2132+55+7.5X2132+55+7.5X2Allowable Extrusion Pressure(MPa)4343Vacuum(MPa)-0.096-0.096-0.096-0.096Model of Upper ReducerZ335ZQ65Z335ZQ65Model of Lower ReducerN560ZQ100N560ZQ100Model of Vacuum PumpSK-6SK-6SK-6SK-6 Fully Automatic Red Clay Brick Machinery with Spare Part
Fully Automatic Red Clay Brick Machinery with Spare Part
Fully Automatic Red Clay Brick Machinery with Spare Part
Fully Automatic Red Clay Brick Machinery with Spare Part
Fully Automatic Red Clay Brick Machinery with Spare Part
VIDEO LINKS:
Nuestra extrusora,mezcladora en CHIHUAHUA MEXICO
https://youtu.be/BpBS0QnD9mc

OUR BRICK MAKING PROJECT -SB Auto bricks in Bangladesh
https://youtu.be/ryNUyAL5e0Q

our coal firing system tunnel kiln in Bangladesh
http://youtu.be/FXCMlS87_70
http://youtu.be/sqao4UulMzk

our workshop fully automatic mud brick making machines
http://youtu.be/rR7AsM9ZYMo
http://youtu.be/qrB0szv8ETw
http://youtu.be/OhEhNSa5Mv0
http://youtu.be/igk9-5jAXA8

Funcionamiento de extrusora VP70
https://youtu.be/cusl94LY-70

Automática planta de hacer ladrillo con secadero de cámara y horno de túnel
https://youtu.be/6lRpyQT5wXA

Automático sistema de descargue de ladrillos secos desde vagonetas de secadero
https://youtu.be/mt8UENn-ck8

video de automático sistema de cargue de ladrillo verde en vagonetas de secadero
https://youtu.be/mXMVei1WbNs

BRICK FACTORY WITH SMALL TUNNELS DRYER AND TUNNEL KILN
https://youtu.be/Y0gZiuvZ8Xg

SMALL TUNNELS DRYER WITH HOFFMAN KILN
https://youtu.be/-5cKd-DLB7k

Automatic cement brick production line
http://youtu.be/rtRKAbICcE4
http://youtu.be/05ZtMQyWVE8

our cement block production line in Mexico
https://youtu.be/zgWif15u0vE
https://youtu.be/bDRv9OVBUcU

cortadora de ladrillo y robot apilamiento empleados en automatica fabrica de ladrillo
http://youtu.be/EPh-a1_scb8

Automática planta de hacer ladrillo con secadero de cámara y horno de túnel
https://youtu.be/6lRpyQT5wXA
