• Model NO.：BYSJ
• Type：Sheet Extruder
• Plastic Processed：PVC
• Feeding Mode：One Feed
• Assembly Structure：Separate Type Extruder
• Screw：Twin-Screw
• Engagement System：Intermeshing
• Screw Channel Structure：Deep Screw
• Exhaust：Exhaust
• Automation：Automatic
• Computerized：Computerized
• Transport Package：PVC Film
• Specification：CE SGS
• Trademark：BOYU
• Origin：Wuxi
• HS Code：8477209000
• Production Capacity：20set,Month

Item NameQuantity1.Double screw extruder1set2.Extrusion mouldwhole 1set3.Vacuum calibration tank1set4.Traction Machine 1set5.Finished boards Cut-to-length machine1set6.Finished boards automatic stacking system 1set



II. Characteristic:

1.The extruder and the extractor adopt the imported AC frequency control device ,the unique screw design ensures the high efficiency extrusion of PVC material, flexible plasticizing, and high output

2. Advanced control system ensures the smooth running

3.Die: innovative spiral flowing structure avoids fuse mark appearance on the bigger pipe , profile of ideal dwell time is full of the whole flow cross-section. Homogeneous melt distribution with selective temperature control guarantees outstanding product characteristics for PVC materials

 If you are interested ,please contact with me for more details.

III.Main Technical Parameter:
Description
Parameter
Feed material
PVC+ wood powder+assistant materials
Product size
600mm×35mm×1900mm(the length adjustable)
Production line speed
0.8-1m/min
Max. output
500kg/h
Outline size
23×2.5×3  L×W×H(m),unsaturated
Weight
16T
Total power
255kw
Actual energy consumption power
210kw
Consumed air
0.4m3/min
Atmospheric pressure
0.6mpa
Water cycle
0.3m3/min
Power
AC380V±10%,50HZ
Water
Industrial water, no impurity, with filtration treatment, pressure: 0.4Mpa temperature: 14-25°C
Work environment temperature
0-40°C

To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc. Products: PVC Foam Board Machine...

The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

IV. BoYu's Advantages



IV. BoYu Services

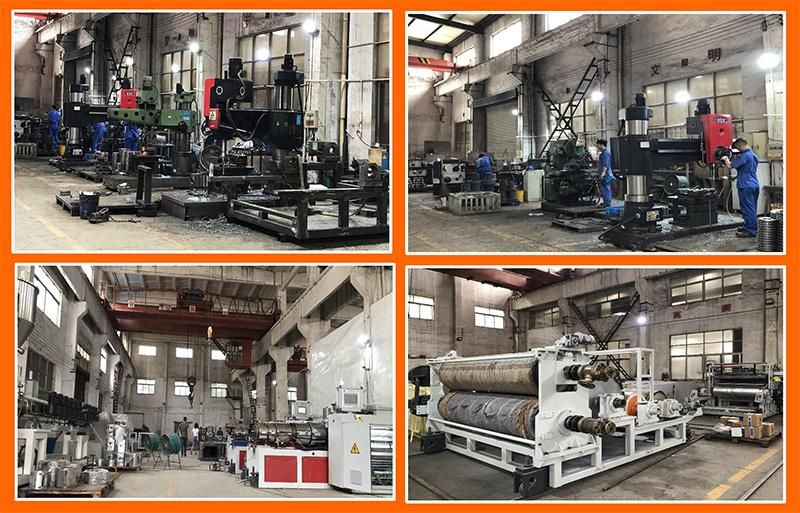

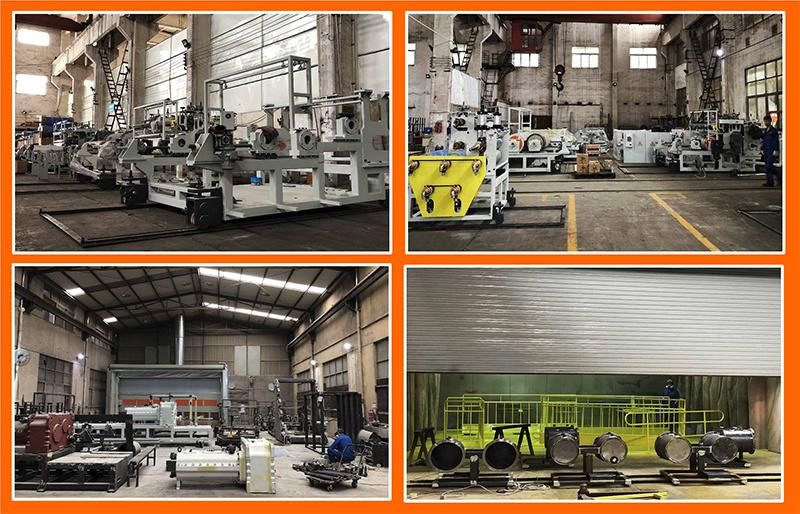

V. BoYu's production capabilities
